Voltage Current Protector

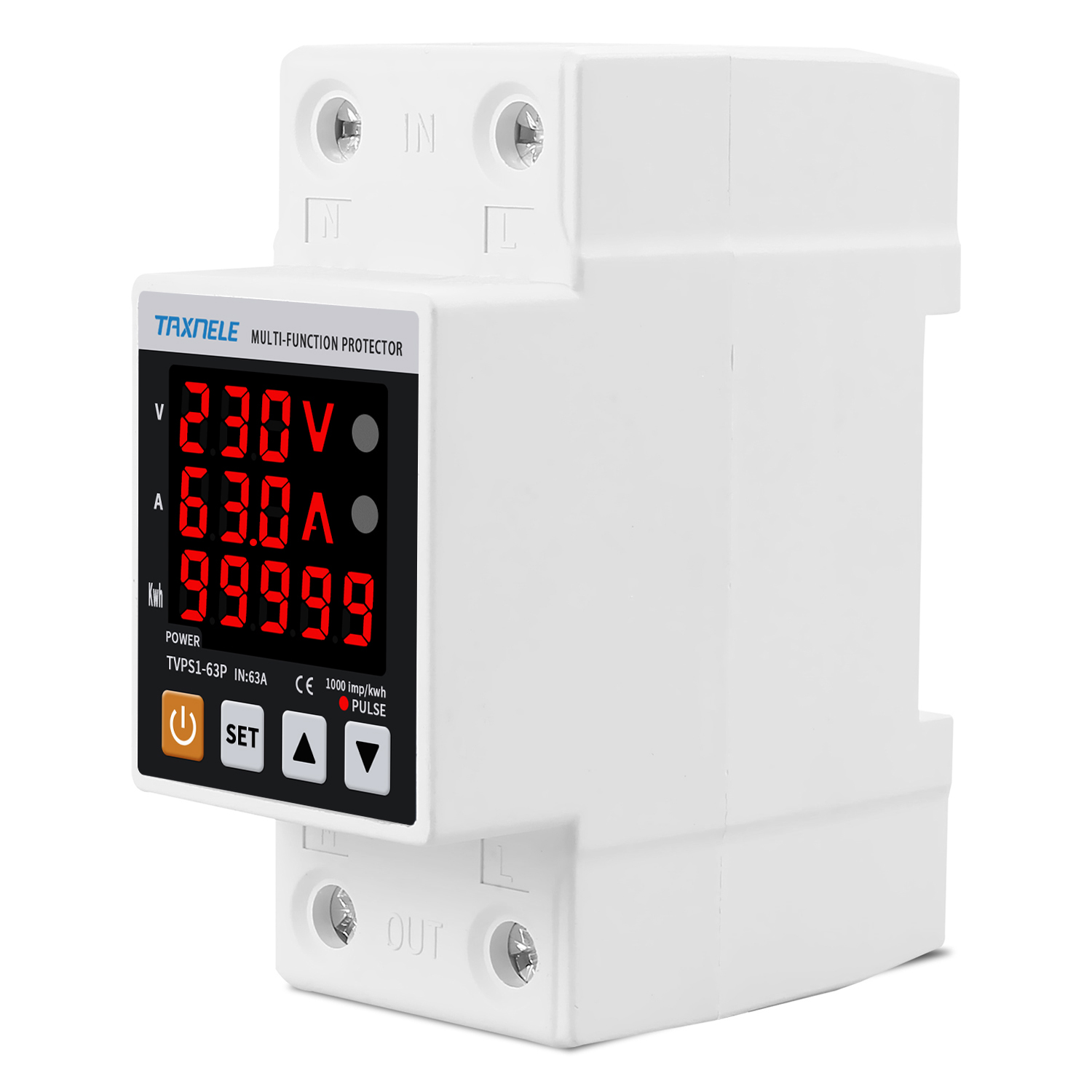

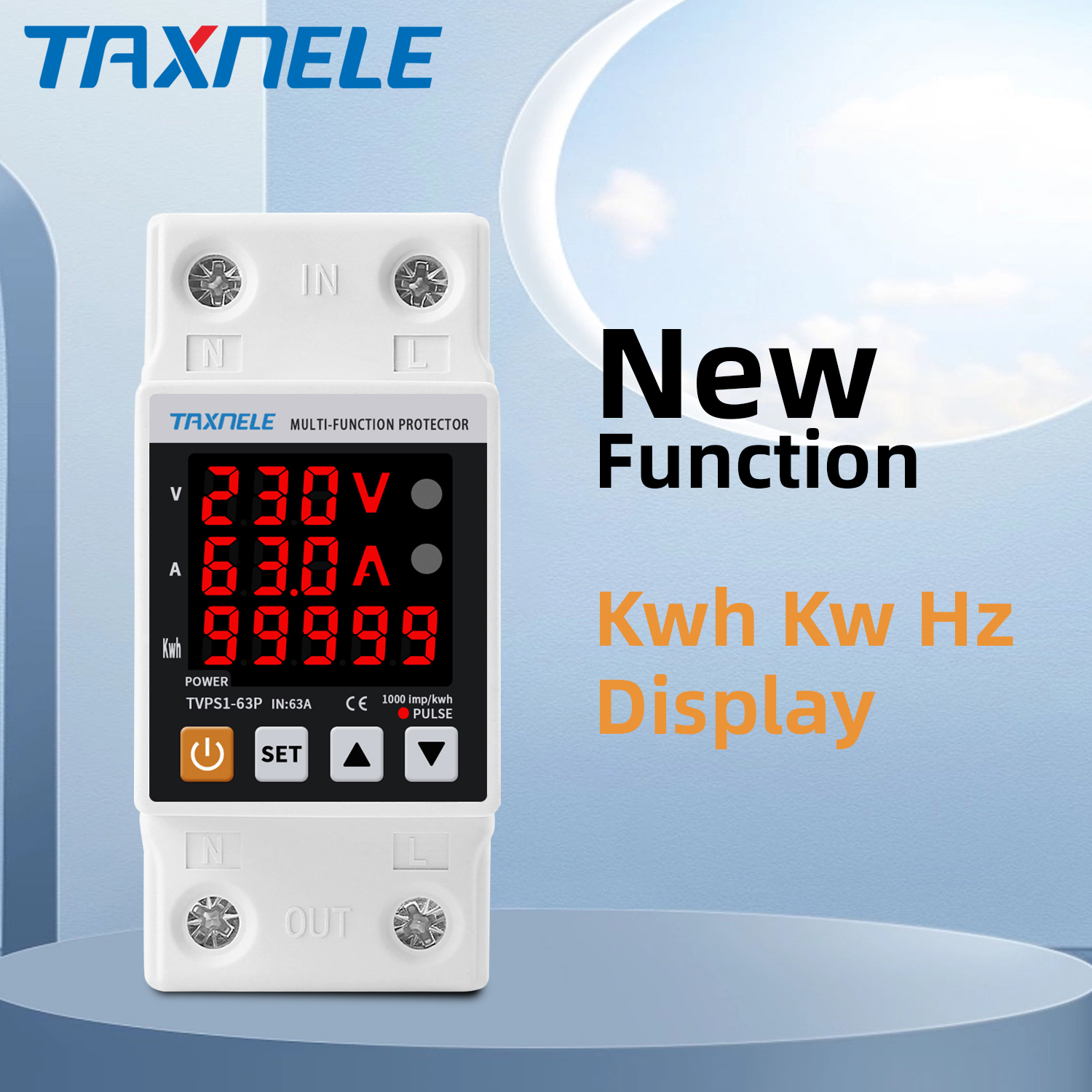

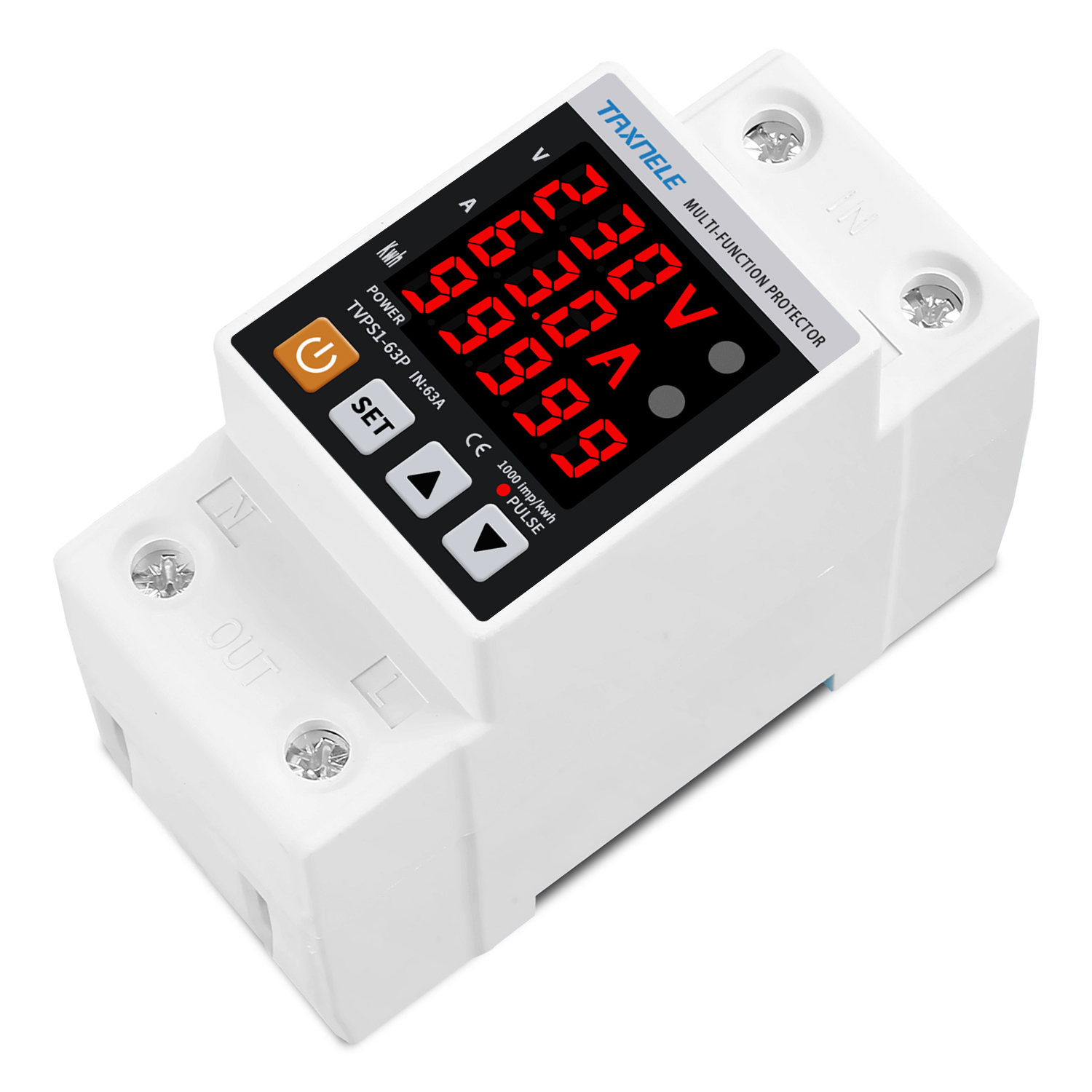

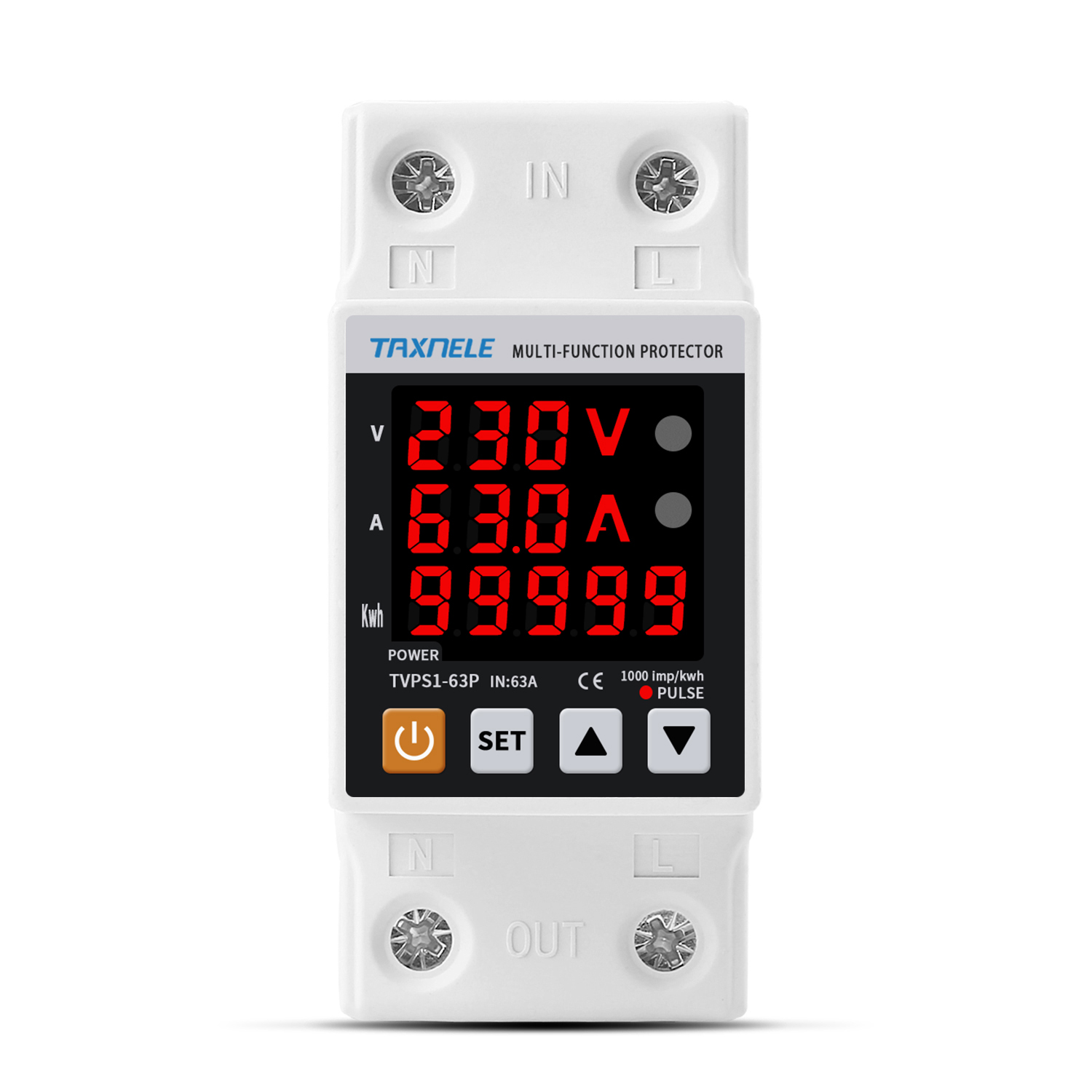

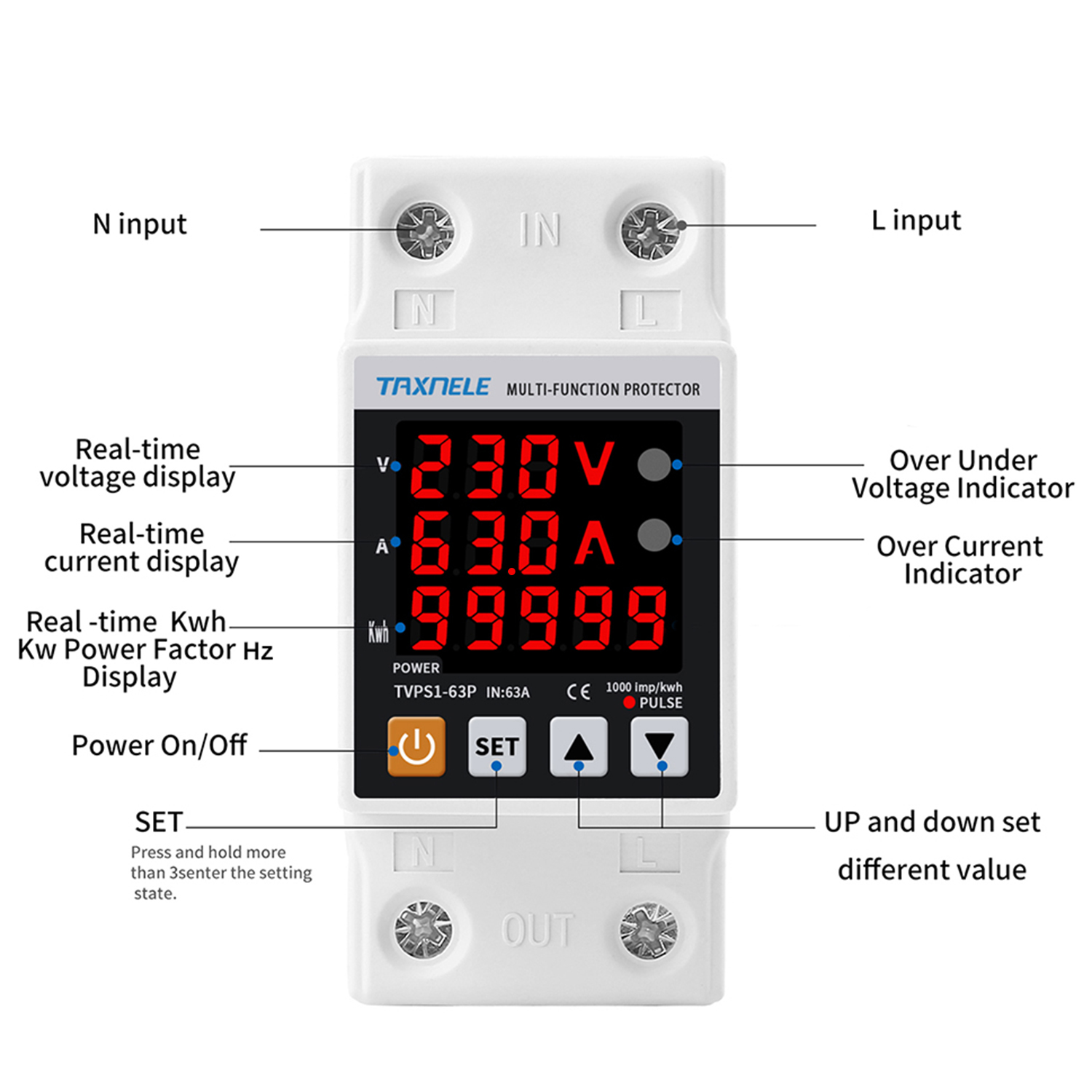

63A 230V 3IN1 Display Din rail adjustable over under voltage surge protector relay over current protect Kwh Power watt Meter

Brand: TAXNELE
Model: TVPS1-63P
Rated voltage: 140-300V (50Hz/60HZ)
Function: 1. Under voltage protection 140V-210V (adjustable) (default: 170V) .this function can turn off.
2. Over voltage proteciton 230V-300V (adjustable) (default: 270) .this function can turn off.
3. Over current protection 1A-63A (adjustable) (default: 40A)
4. Reconnect time (delay on time): 1-500s (default: 30s)
5. Voltage meter
6. Ammeter
7. Energy meter
8.Power meter
When power off, the product can memory the Kwh, over voltage, under voltage and over current value.
Press UP Down Key together more than 3 seconds, Kwh reset to Zero
