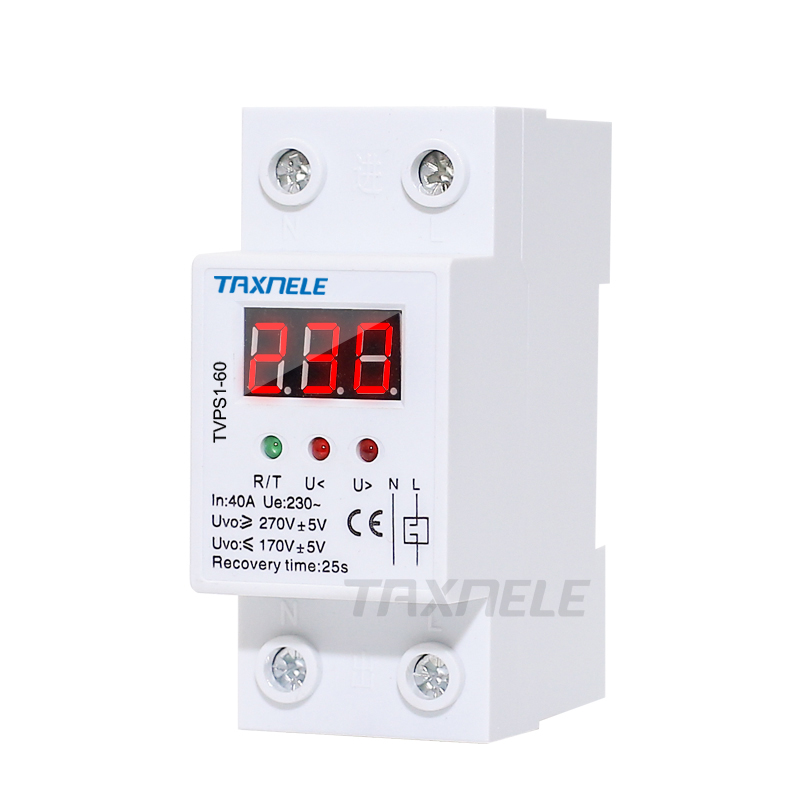

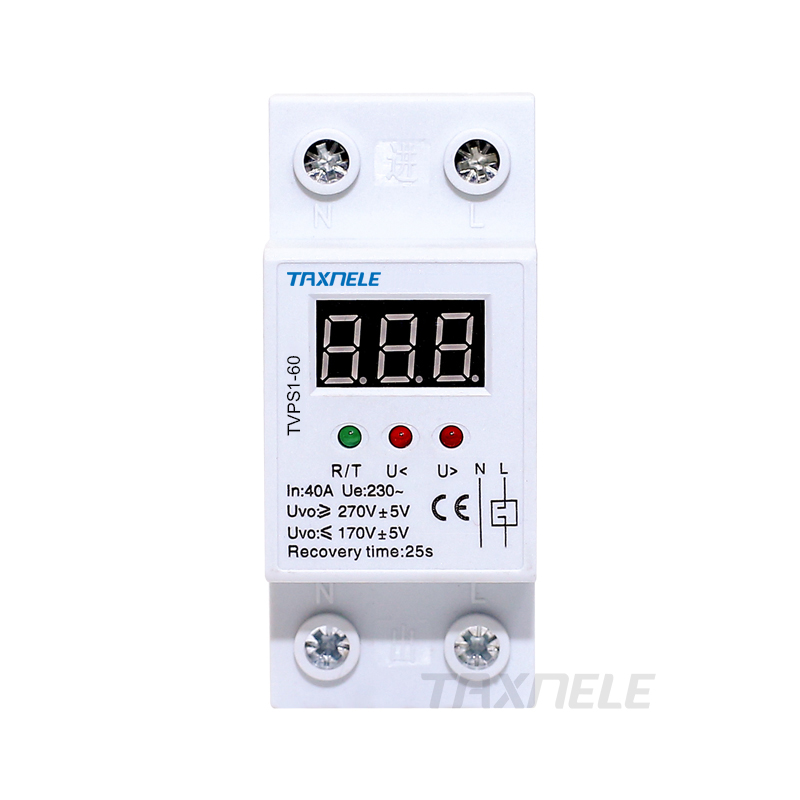

40A 63A 220V over under voltage protector

Main Technical Speacification OF 40A

1. Rated AC voltage 230V±10% and frequency 50Hz/60Hz

2. Passing Max Current: 40A

3. Max. Loading power: 8.8KVA

4. Over-voltage action cut-off value: >275VAC+/-5V

5. Normal-voltage value: 165-275VAC

6. Under-voltage action cut-off value: <160VAC+/-5V

7. Over voltage and under voltage cut-off:< 1s

8. Electricity transmitting delay after cut-off: <60s

9. Self power consumption<2W

10. Electric machinery life=100000 times

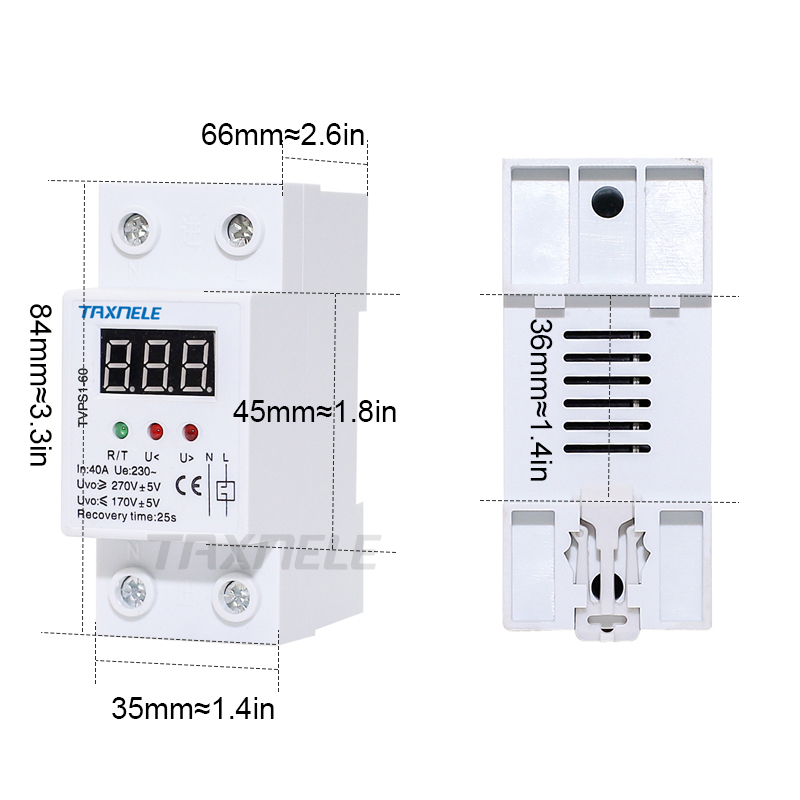

11. Dimension: 35L*70W*77Hmm

12. Installing: 35mm Din rail

Main Technical Speacification OF 63A

1. Rated AC voltage 230V±10% and frequency 50Hz/60Hz

2. Passing Max Current: 63A

3. Max. Loading power: 13.8KVA

4. Over-voltage action cut-off value: >275VAC+/-5V

5. Normal-voltage value: 165-275VAC

6. Under-voltage action cut-off value: <160VAC+/-5V

7. Over voltage and under voltage cut-off:< 1s

8. Electricity transmitting delay after cut-off: <60s

9. Self power consumption<2W

10. Electric machinery life=100000 times

11. Dimension: 35W*66L*84Hmm

12. Installing: 35mm Din rail

Noted: When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will work.
