Voltage Current Protector

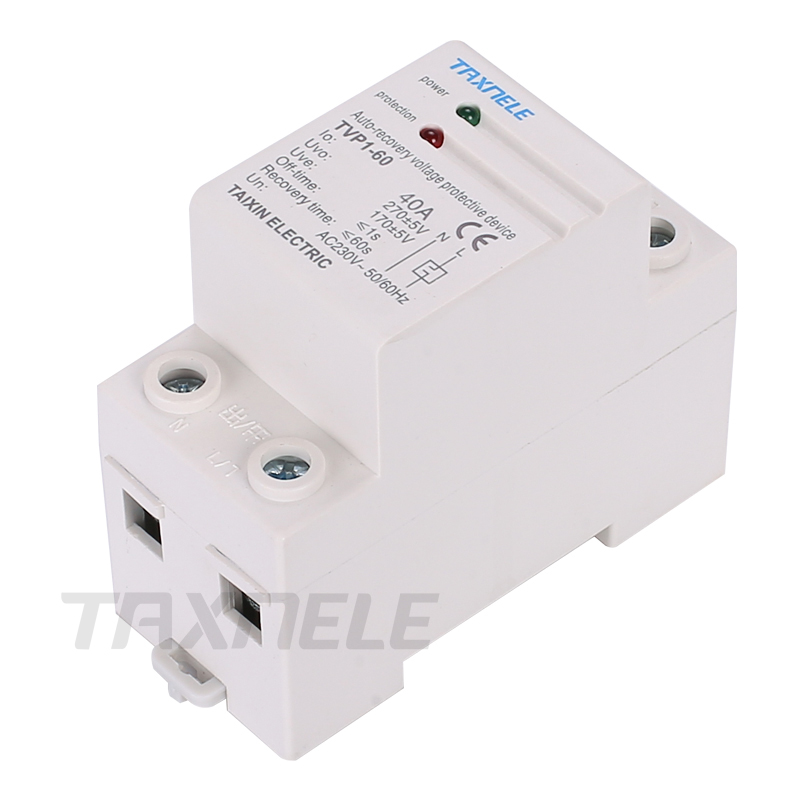

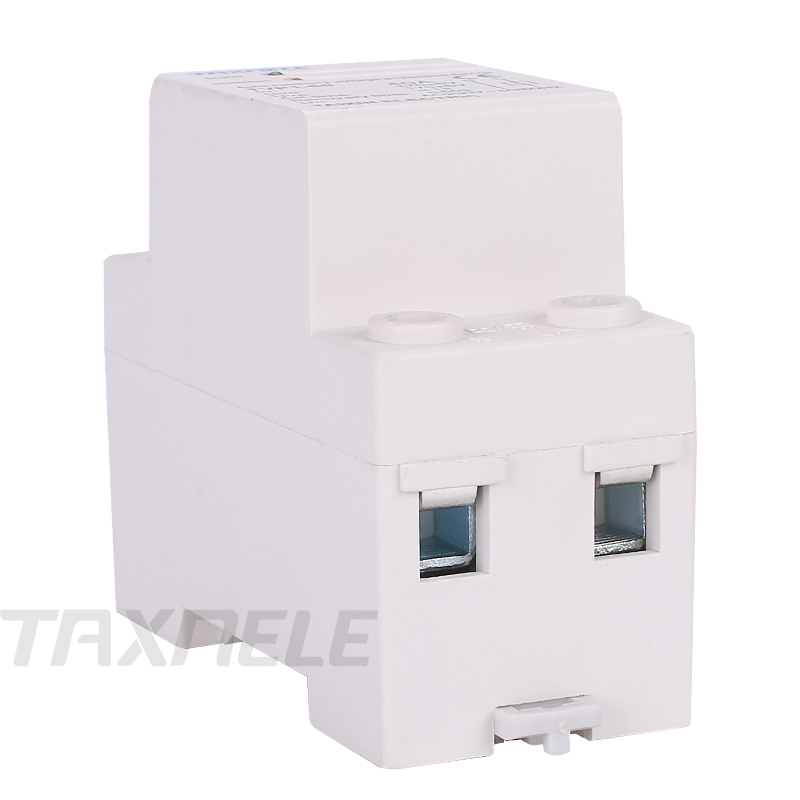

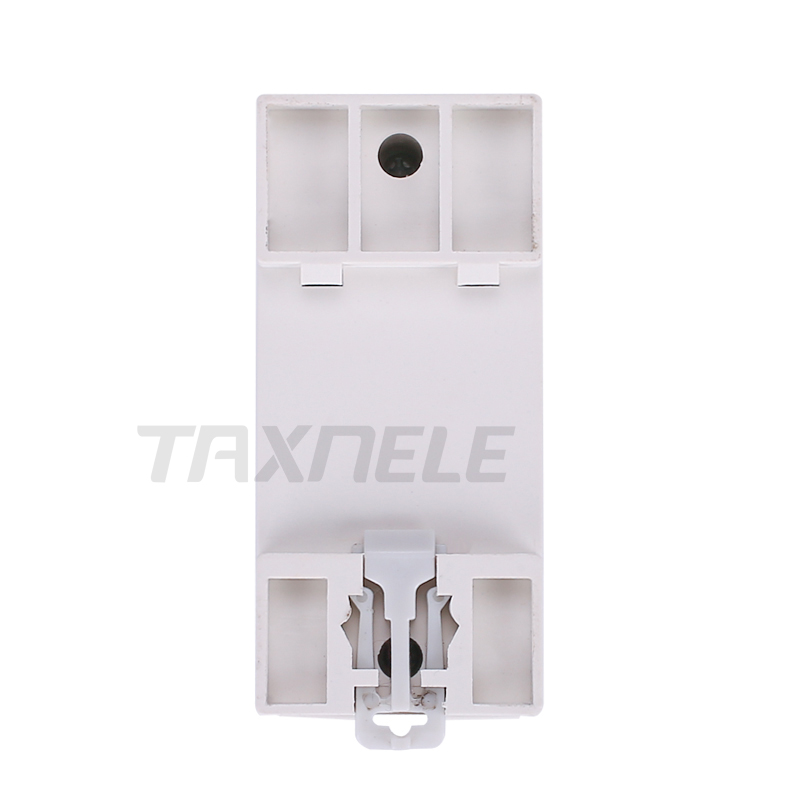

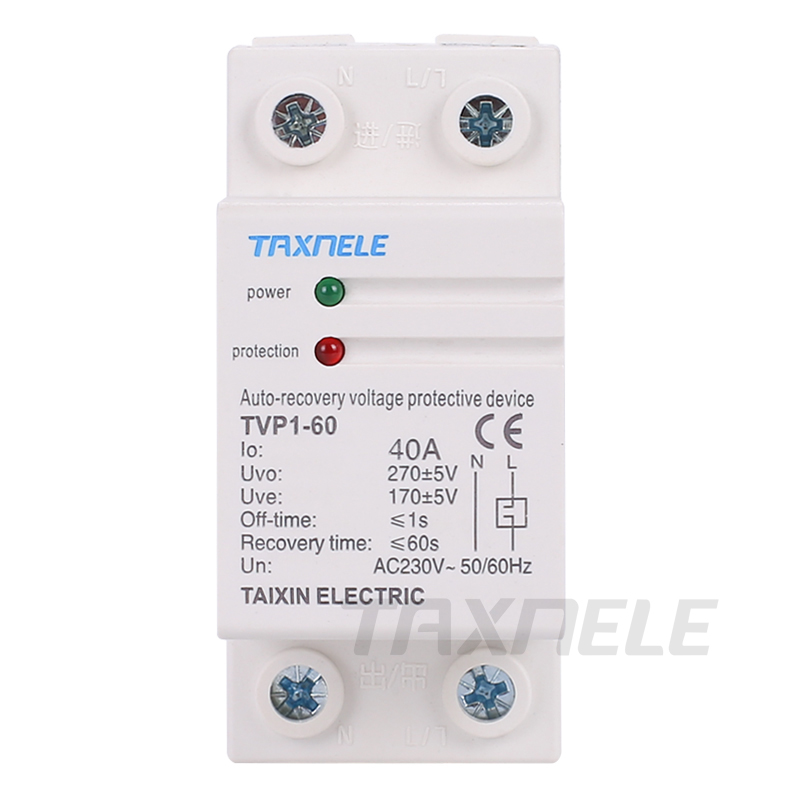

40A 63A 230V over under votage protector

Product description: The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable pe
INQUIRY

Main Technical Speacification:

1. Rated AC voltage 230V±10% and frequency 50Hz/60Hz

2. Passing Max Current: 40A,63A

3. Max. Loading power: 8.8KVA

4. Over-voltage action cut-off value: >270VAC+/-5V

5. Normal-voltage value: 175-270VAC

6. Under-voltage action cut-off value: <170VAC+/-5V

7. Over voltage and under voltage cut-off:< 1s

8. Electricity transmitting delay after cut-off: <60s

9. Self power consumption<2W

10. Electric machinery life=100000 times

11. Dimension: 35L*70W*77Hmm

12. Installing: 35mm Din rail

Noted: When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will work.
