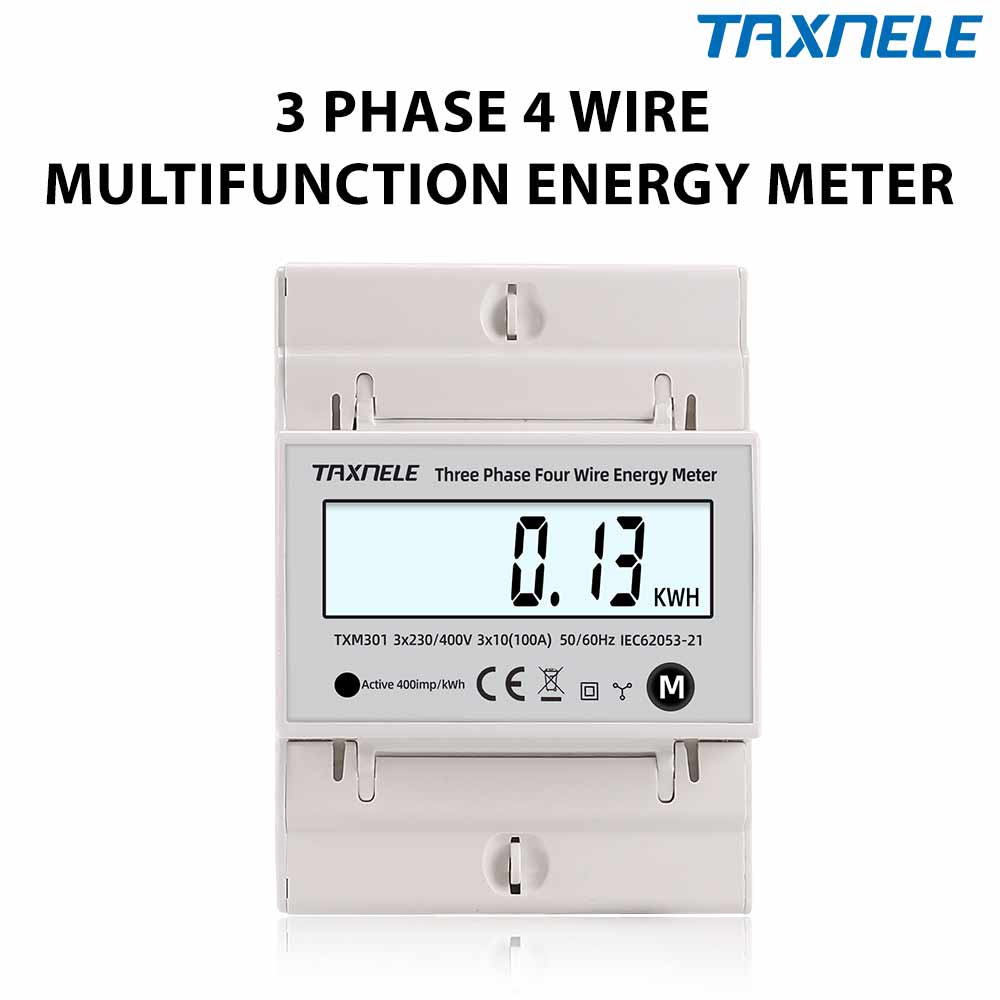

Multifunction 380V 3 Phase 4 Wire Wattmeter Power Bidirectional Energy Meter KWH Voltage Current 100A AC 50Hz 60Hz Solar PV

Product description: Multifunction 380V 3 Phase 4 Wire Wattmeter Power Bidirectional Energy Meter KWH Voltage Current 100A AC 50Hz 60Hz Solar PV
INQUIRY

Parameter

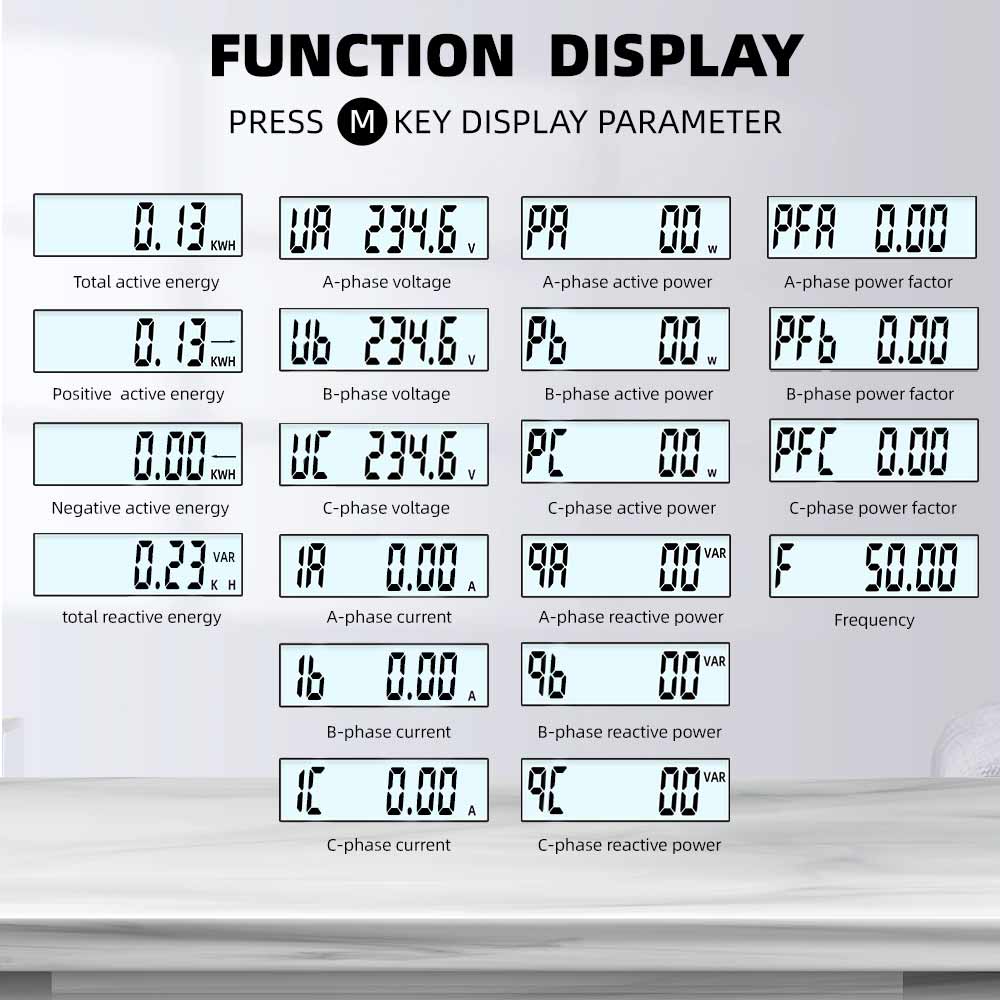

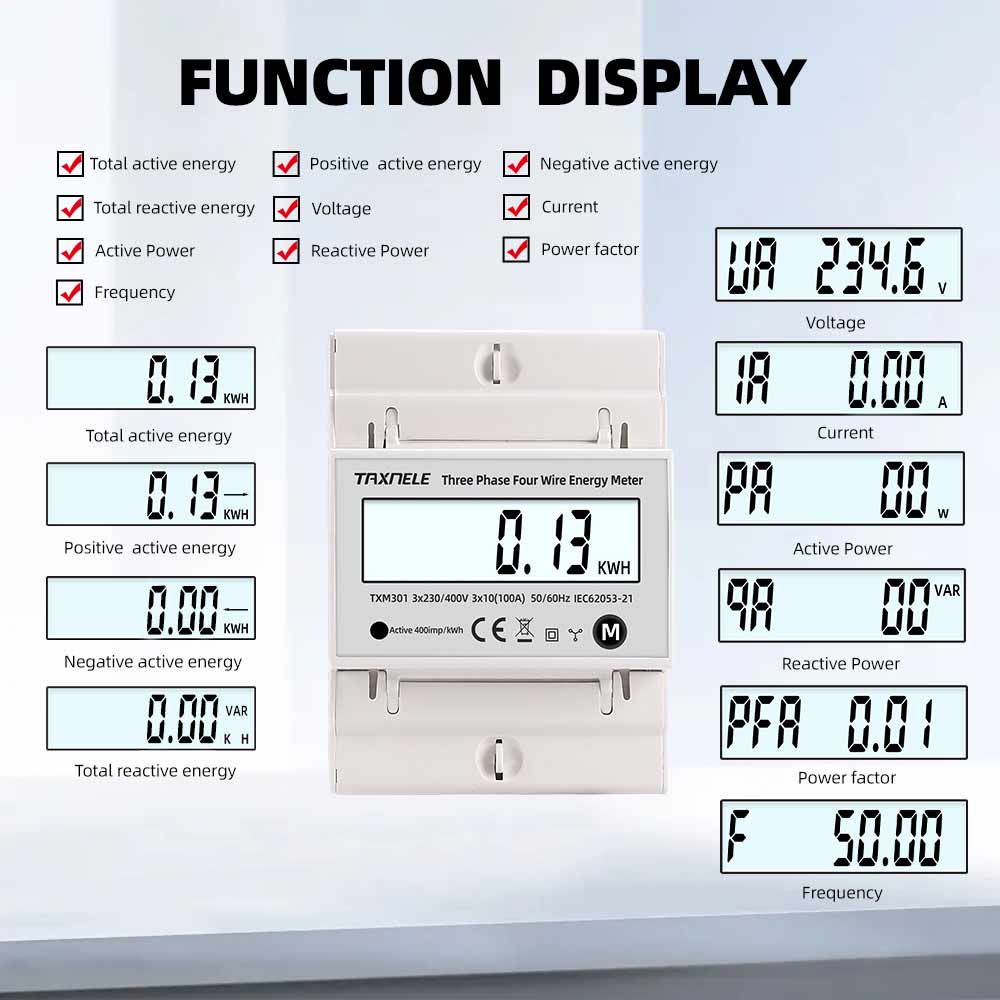

Real-time display of total Energy KWh, Positive KWH, Negative KWH, Total Reactive Energy KWH.

Voltage, Current, Active Power, Reactive Power, Power factor ,Frequency

Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)

Reference Current: 3 X10(100A)

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

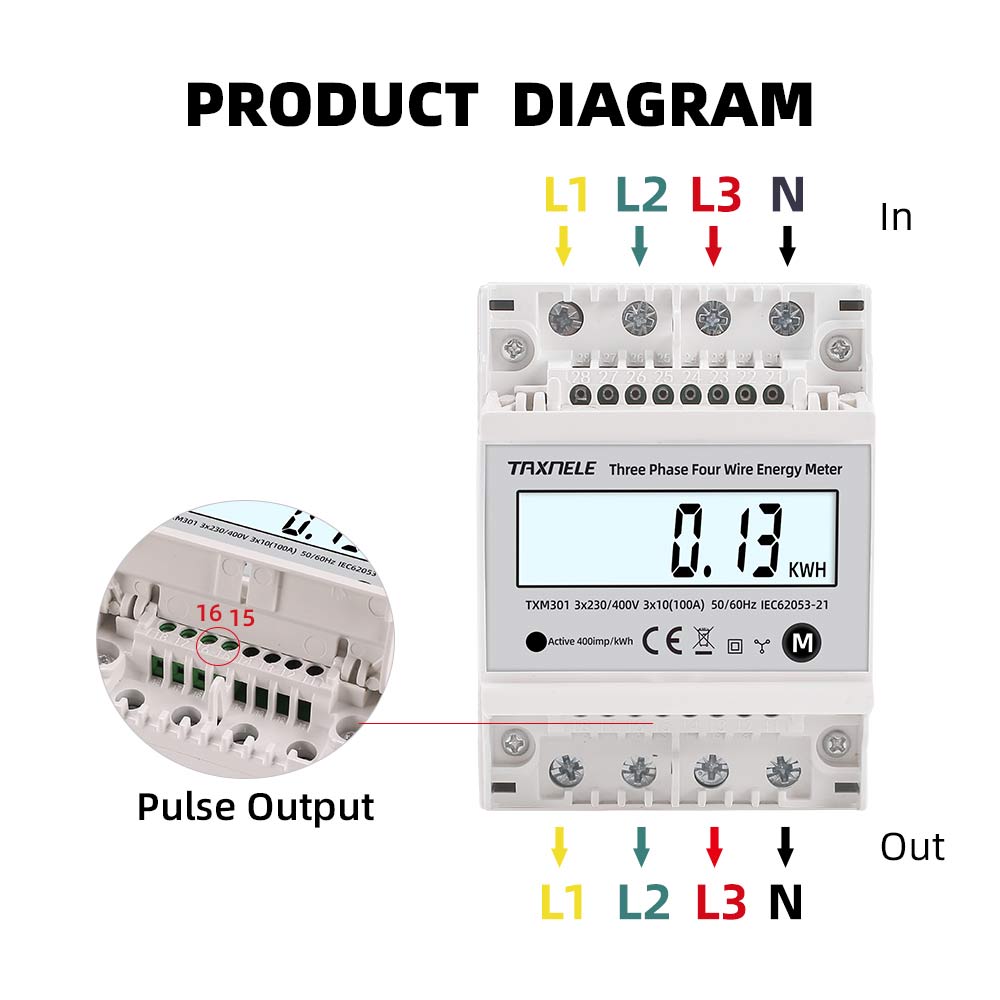

Constant Pulse: 400imp / kWh

Display: LCD 6 + 1

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

Operating Voltage: 0.9-1.1 Rated Voltage

Utmost Voltage: 0.8-1.15 Rated Voltage
