380V 100A Energy Meter LCD Analog Counter 7P Electronic Watt Power Meter 3 Phase 4 Wire Voltage Current Multifunction kWh

Parameter

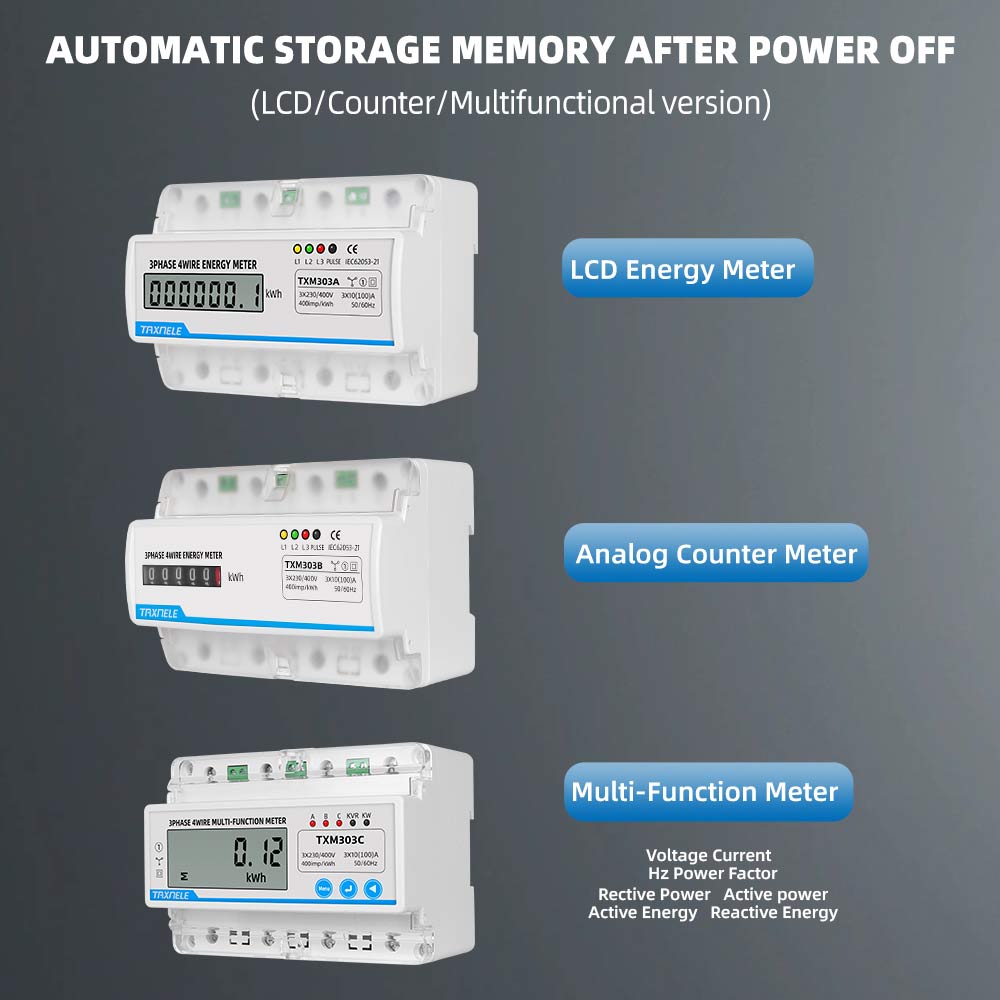

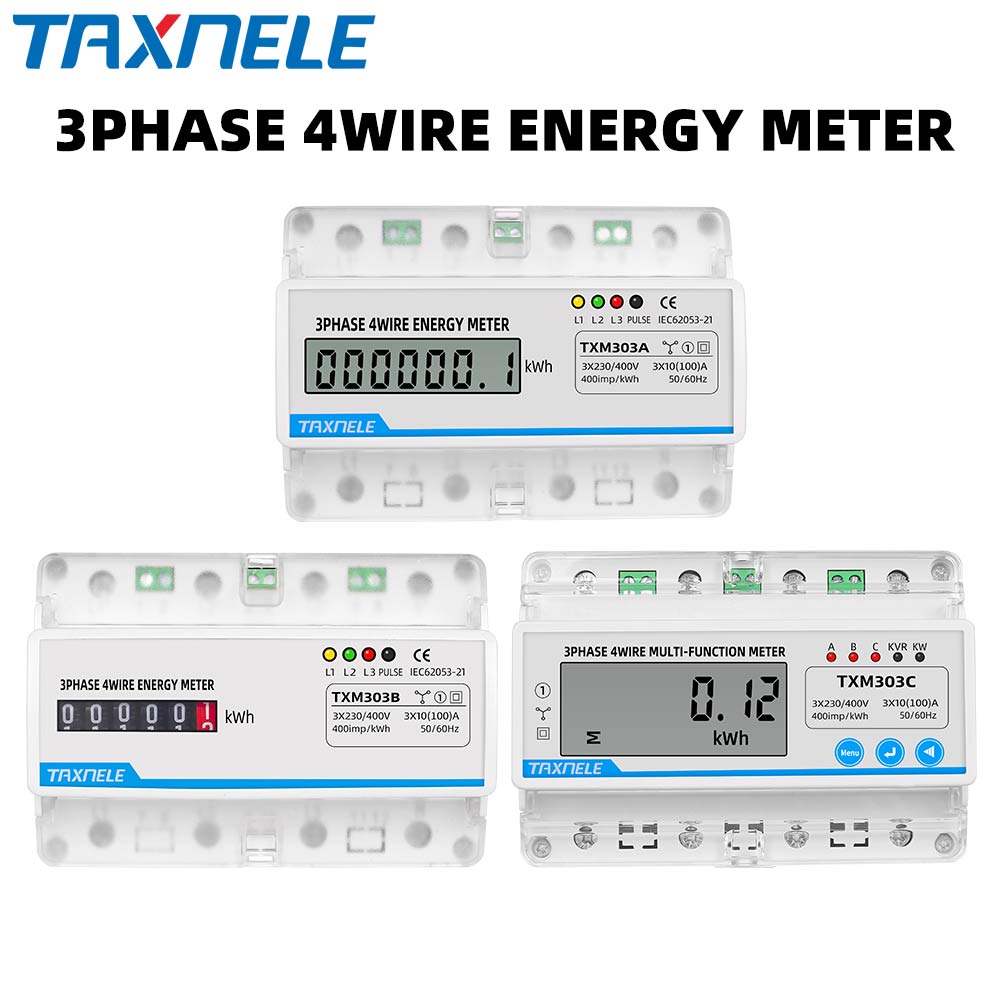

3 Phase 4 WireEnergy Meter

Specifications:

TXM303A LCD Digital Energy Meter(Only Energy Function)

Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)

Reference Current: 3 X10(100A)

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

Constant Pulse: 400imp / kWh

Display: LCD 6 + 1

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

Operating Voltage: 0.9-1.1 Rated Voltage

Utmost Voltage: 0.8-1.15 Rated Voltage

TXM303B Analog Counter Energy Meter(Only Energy Function)

Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)

Reference Current: 3 X10(100A)

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

Constant Pulse: 400imp / kWh

Display: LCD 5 + 1

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

Operating Voltage: 0.9-1.1 Rated Voltage

Utmost Voltage: 0.8-1.15 Rated Voltage

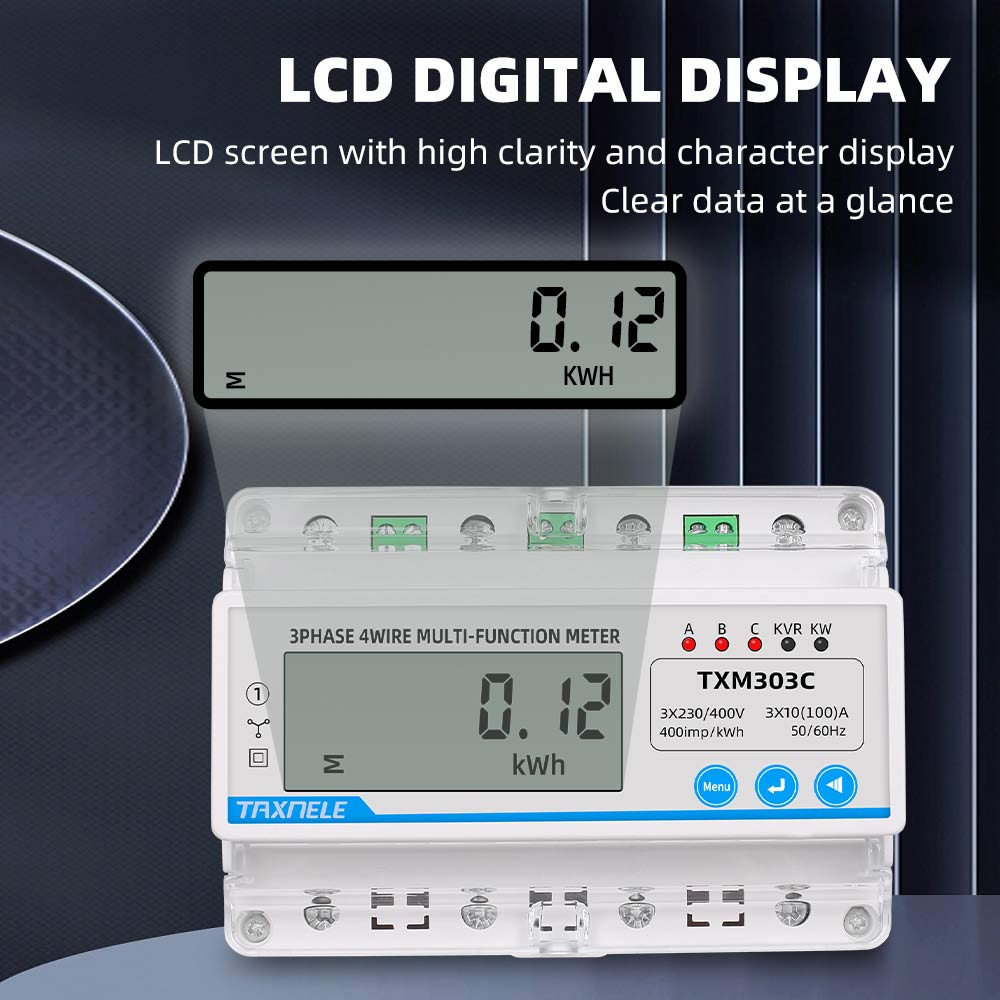

TXM303C LCD Multi-Function Meter

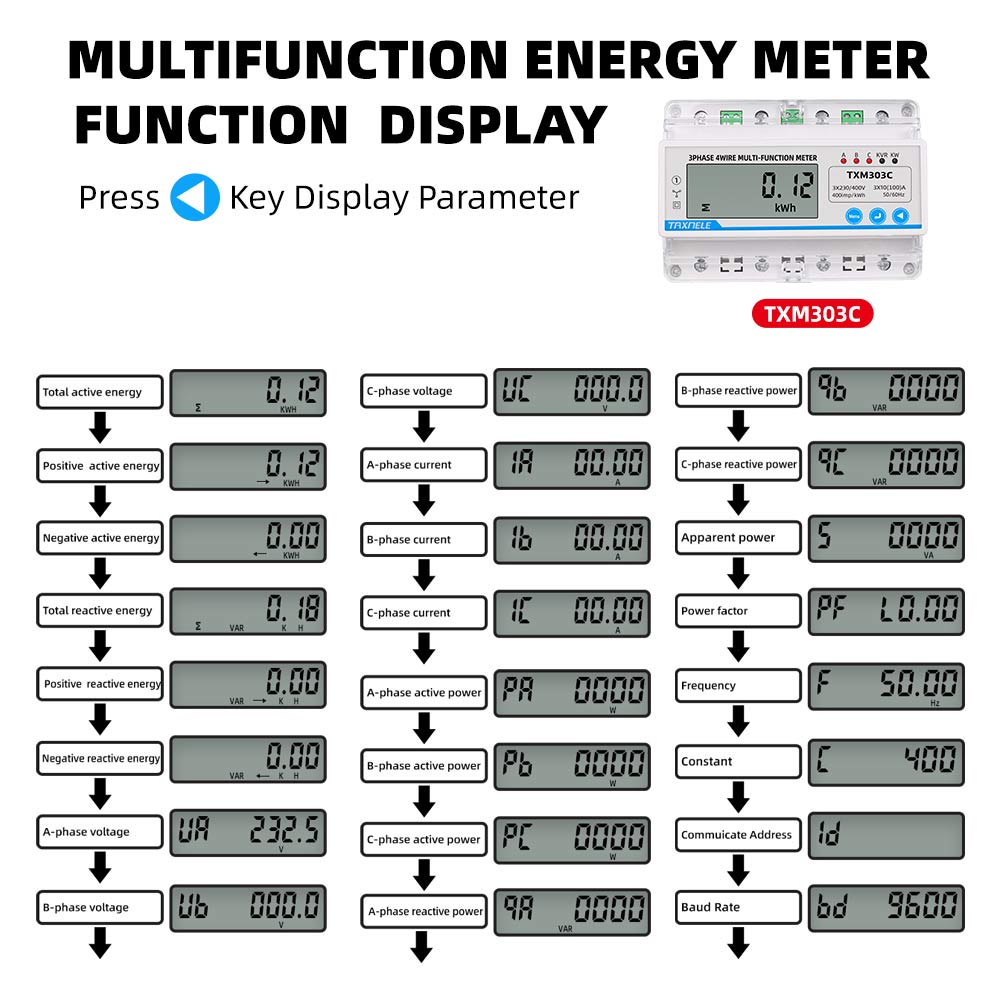

Total Energy KWh, Positive KWH, Negative KWH, Total Reactive Energy KWH.

Voltage, Current, Active Power, Reactive Power, Power factor ,Frequency

Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)

Reference Current: 3 X10(100A)

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

Constant Pulse: 400imp / kWh

Display: LCD 6 + 2

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

Operating Voltage: 0.9-1.1 Rated Voltage

Utmost Voltage: 0.8-1.15 Rated Voltage
