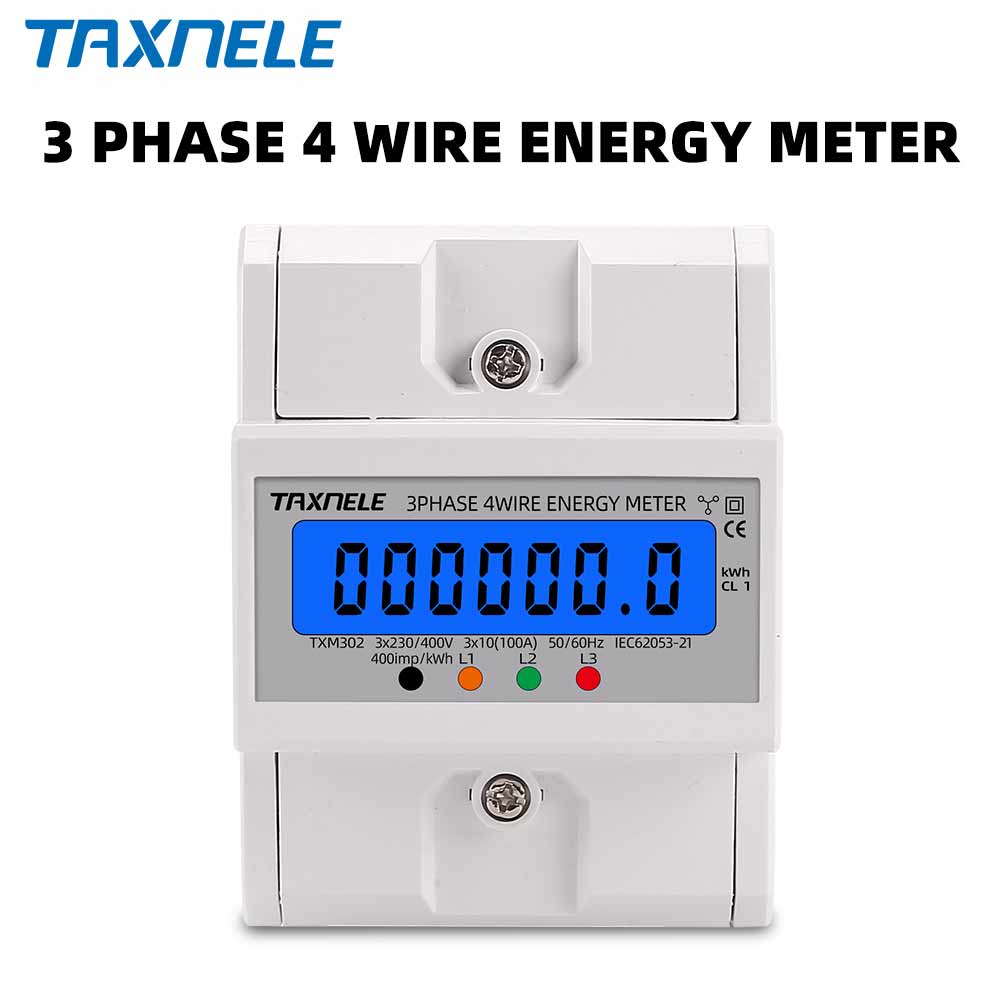

Din Rail 380V 3 Phase 4 Wire Electronic Watt Power Consumption Energy Meter Wattmeter kWh 100A AC 50Hz 60Hz LCD Backlight

Descriptions:

The meter is fully in conformity with the relevant technical requirements of the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of the energy consumption. It features high reliability, small volume, lightweight, beautiful appearance, advanced technology, and 35mm DIN standard guide rail installation, etc.


Features:

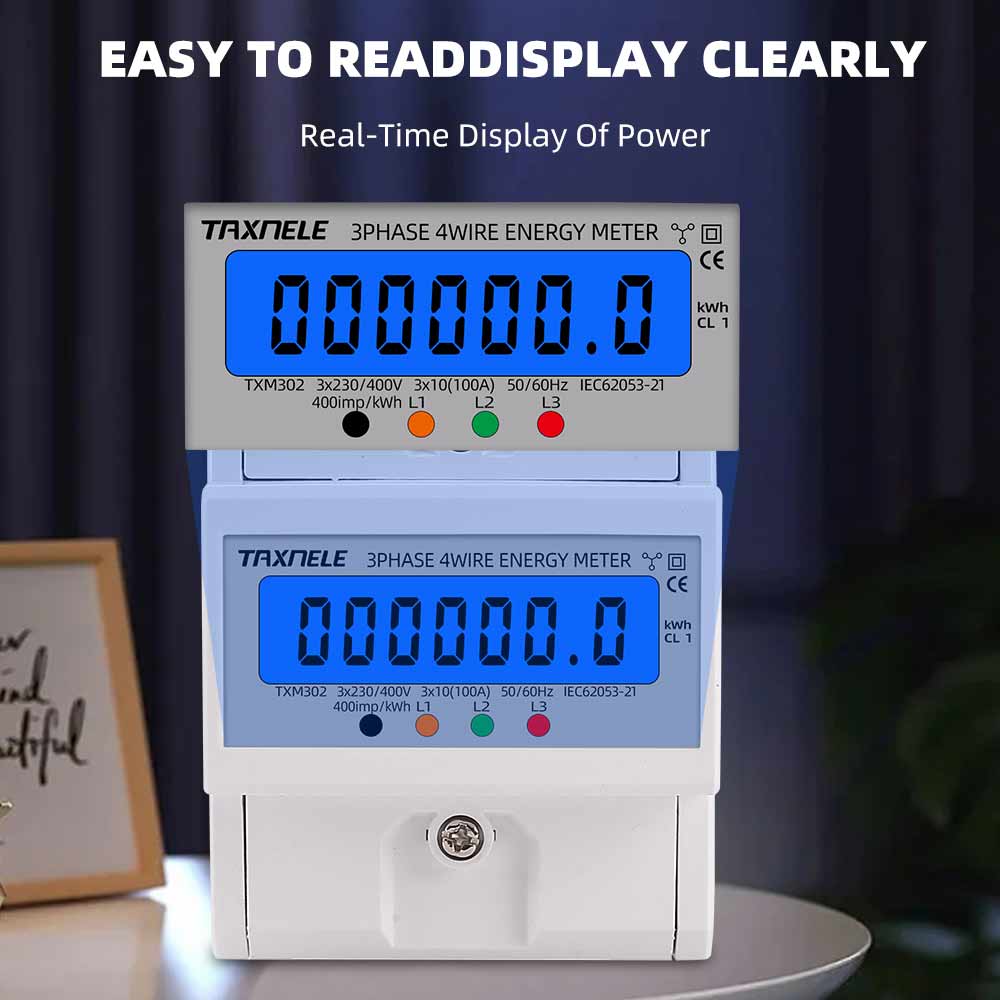

6+1 digits LCD display shows the total power consumption.

It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc.


It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life.


This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 °C ~ 55 °C, relative humidity is ≤ 95%, and in the air does not contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.


Specifications:

Materiel: Metal + ABS

Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)

Reference Current: 3 X10(100A)

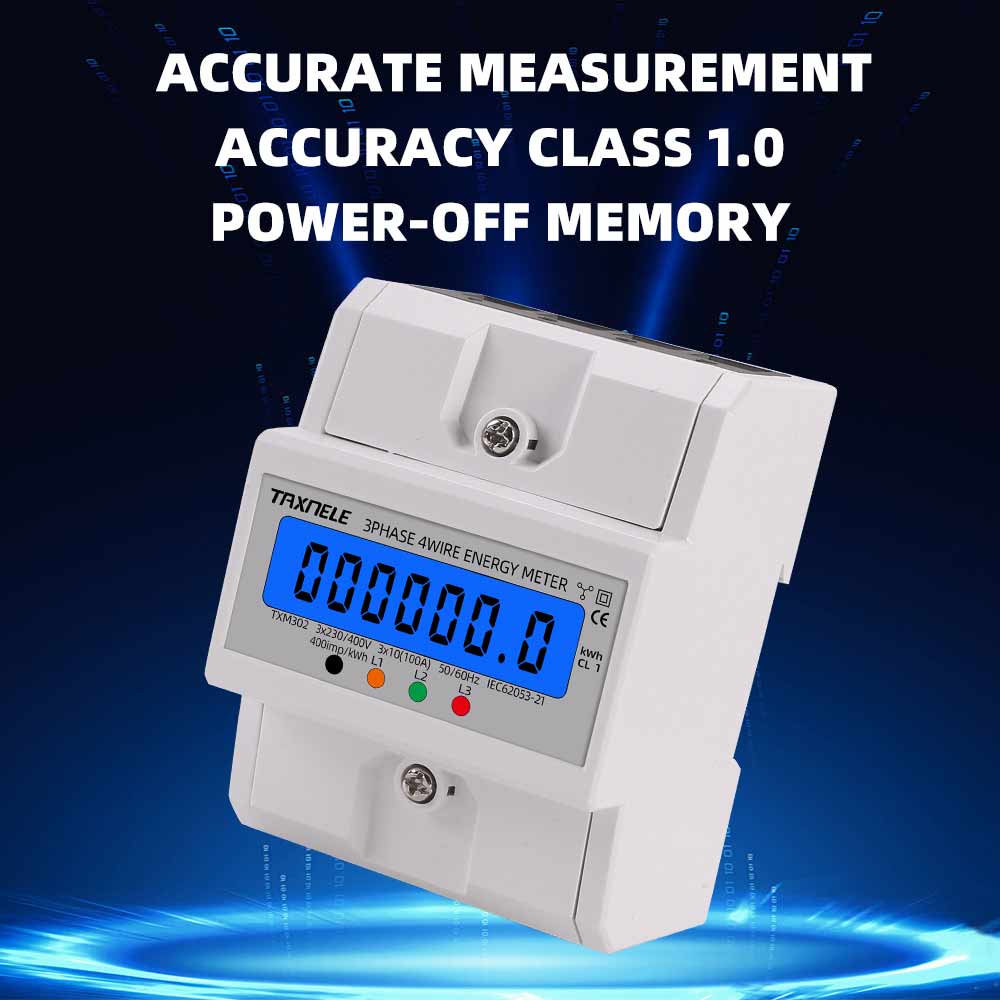

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

Constant Pulse: 400imp / kWh

Display: LCD 6 + 1

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

Operating Voltage: 0.9-1.1 Rated Voltage

Utmost Voltage: 0.8-1.15 Rated Voltage


Average Humidity Value of Year: ≤75%

Type: Three Phase Four Wire Electronic Type

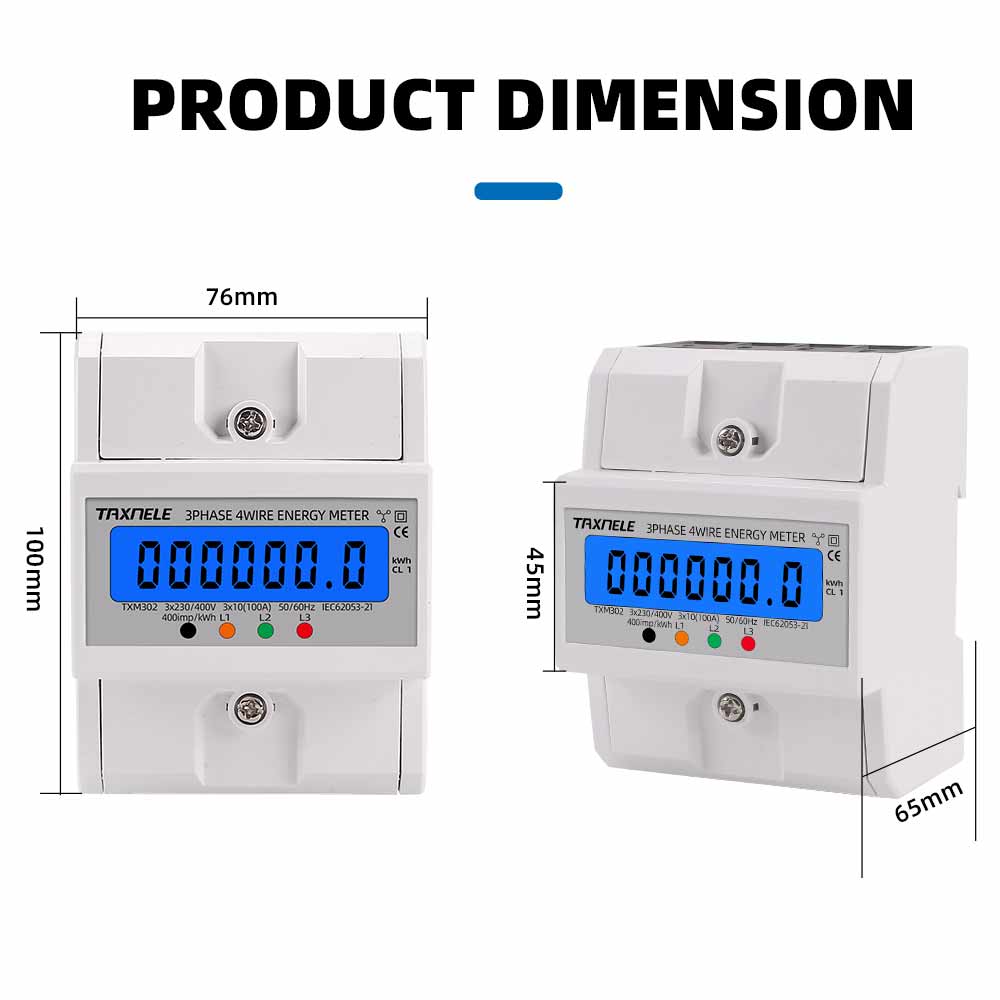

Size: Approx. 10.0X 7.6 X 6.5cm / 3.97 X 2.99 X 2.55in
