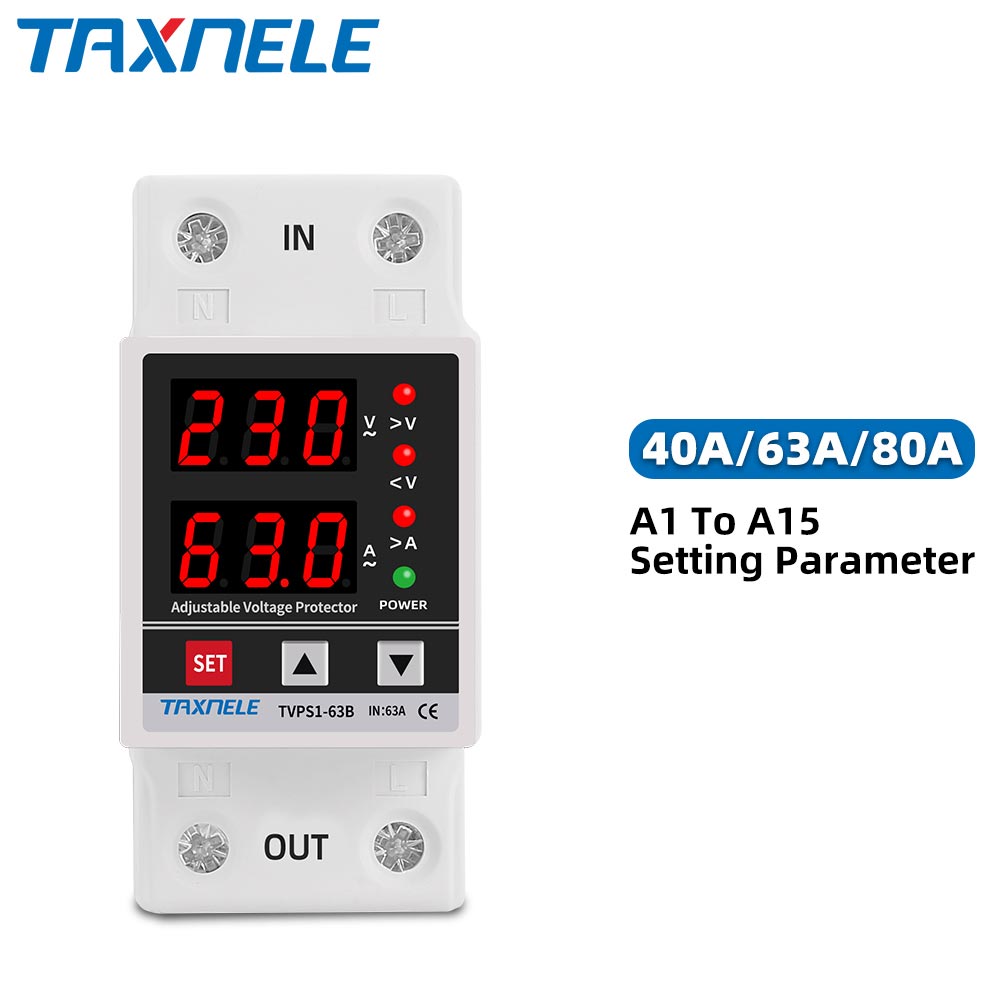

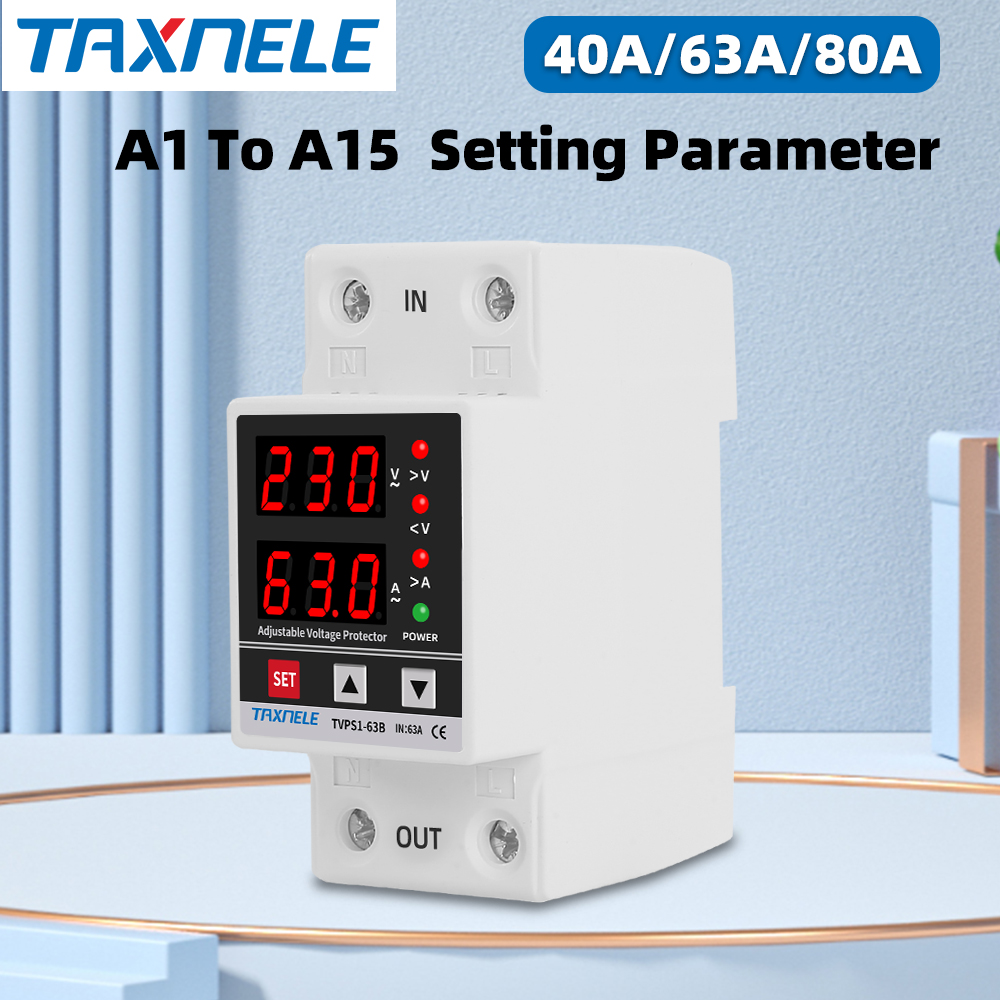

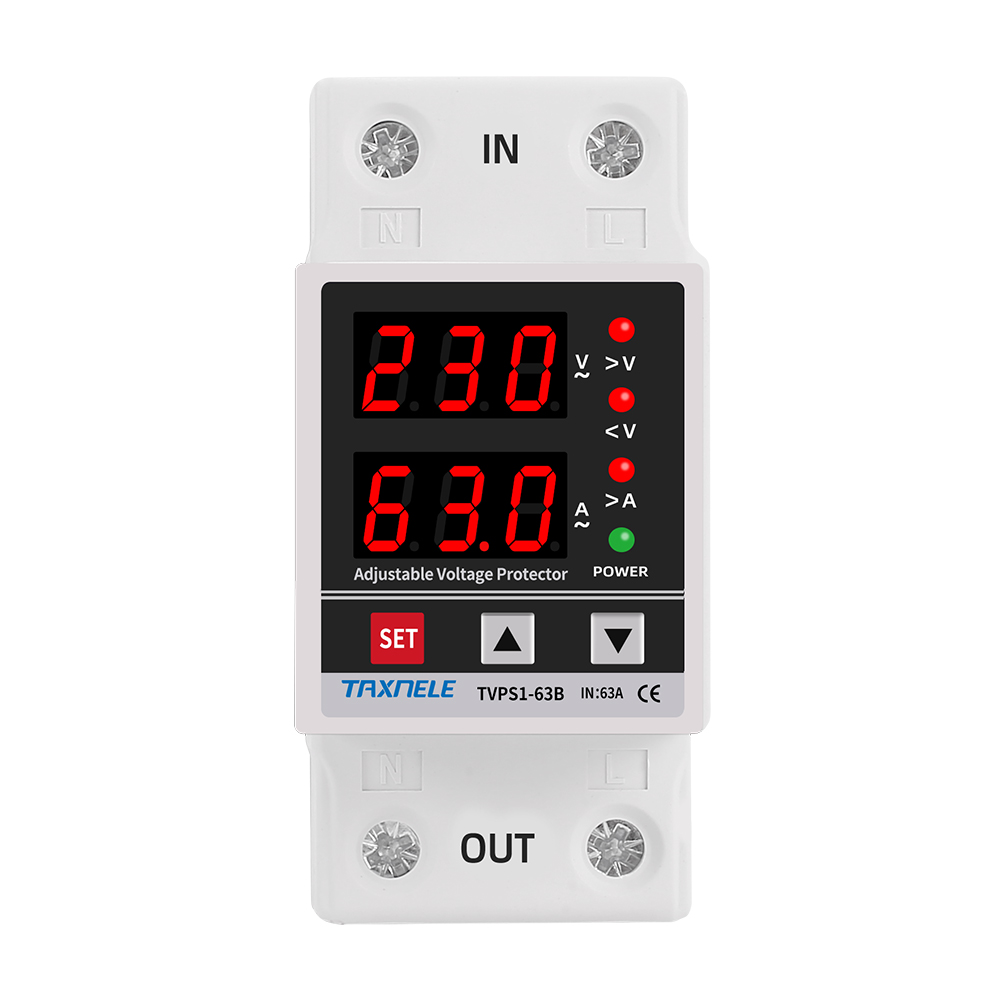

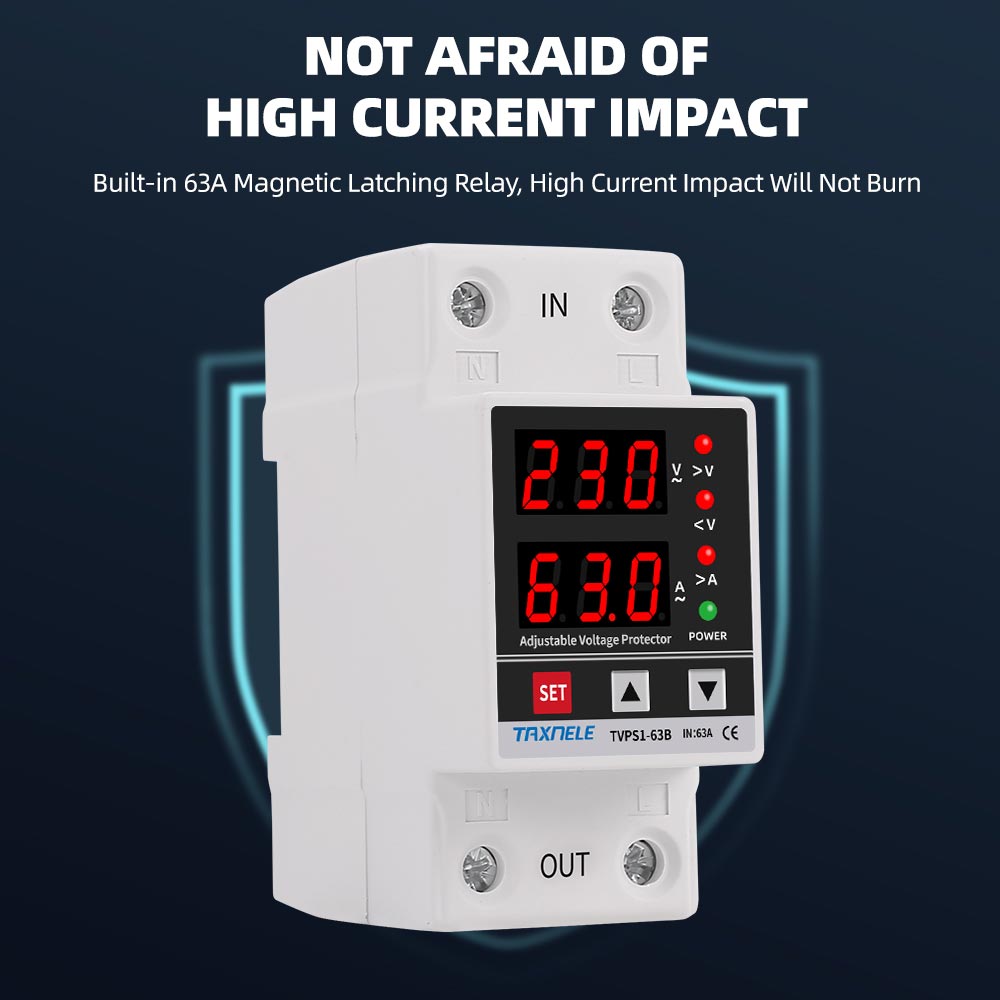

Dual Display 40A 63A 230V Din Rail Adjustable digital Over Under Voltage Relay Surge Protector Limit Over Current Protection

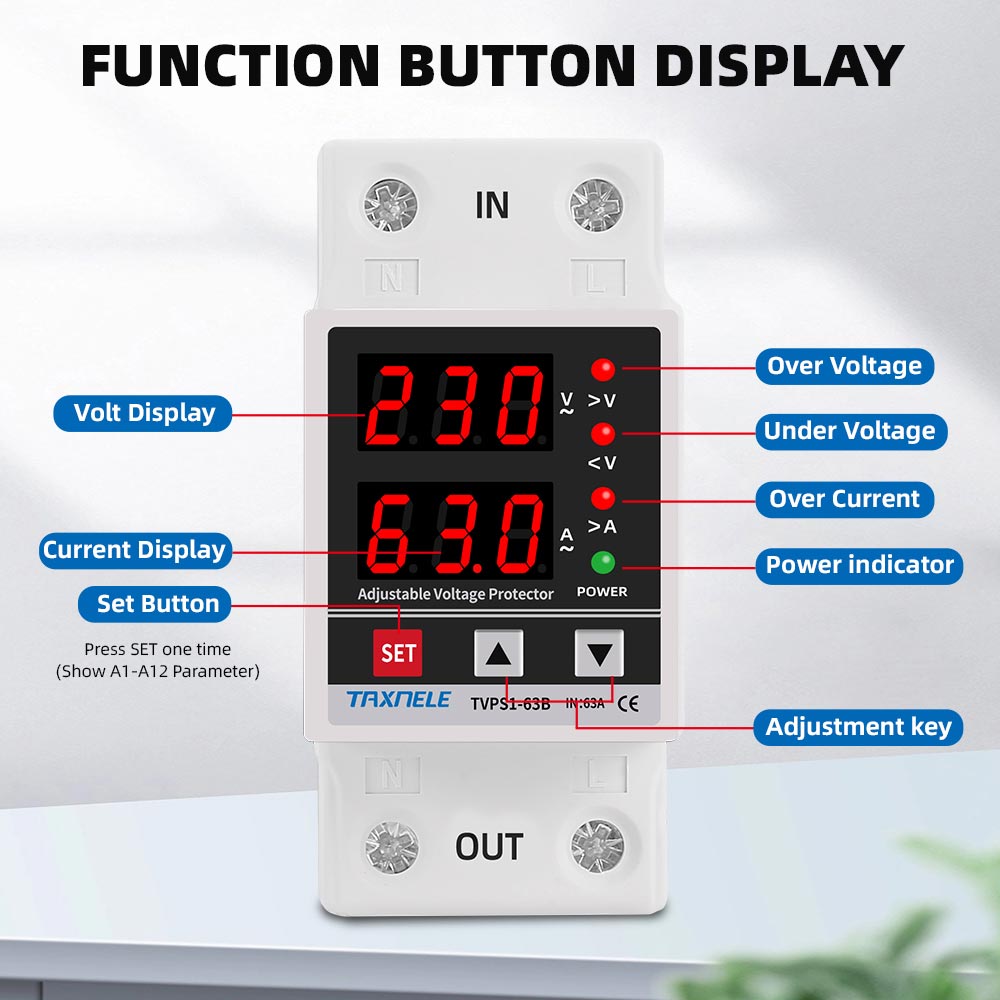

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
Product Parameters:
1.Model number:TVPS1-63B
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A  Adjustable（default:40A）
1~63A  Adjustable（default:63A）
4.Over-voltage protection value range:221V~300~OFF(default:280V)
Over-voltage recovery voltage range:220V--299V(default:250V)
Over-voltage protection action time:0.1s~10s(default value:0.1s)
5.Under-voltage protection value range:219V--150V --OFF(default:160V)
Under-voltage recovery voltage range:151V--220V (default:180V)
Under-voltage protection action time:0.1s~10s(default:0.1s)
6.Over-current adjustment range:1-40A （default:40A）
Over-current action range:0.1~512 second （default:5.0s）
7.Recovery delay time:2s~120s(default:60s)
8.Power-on delay time:2s~10s(default:2s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

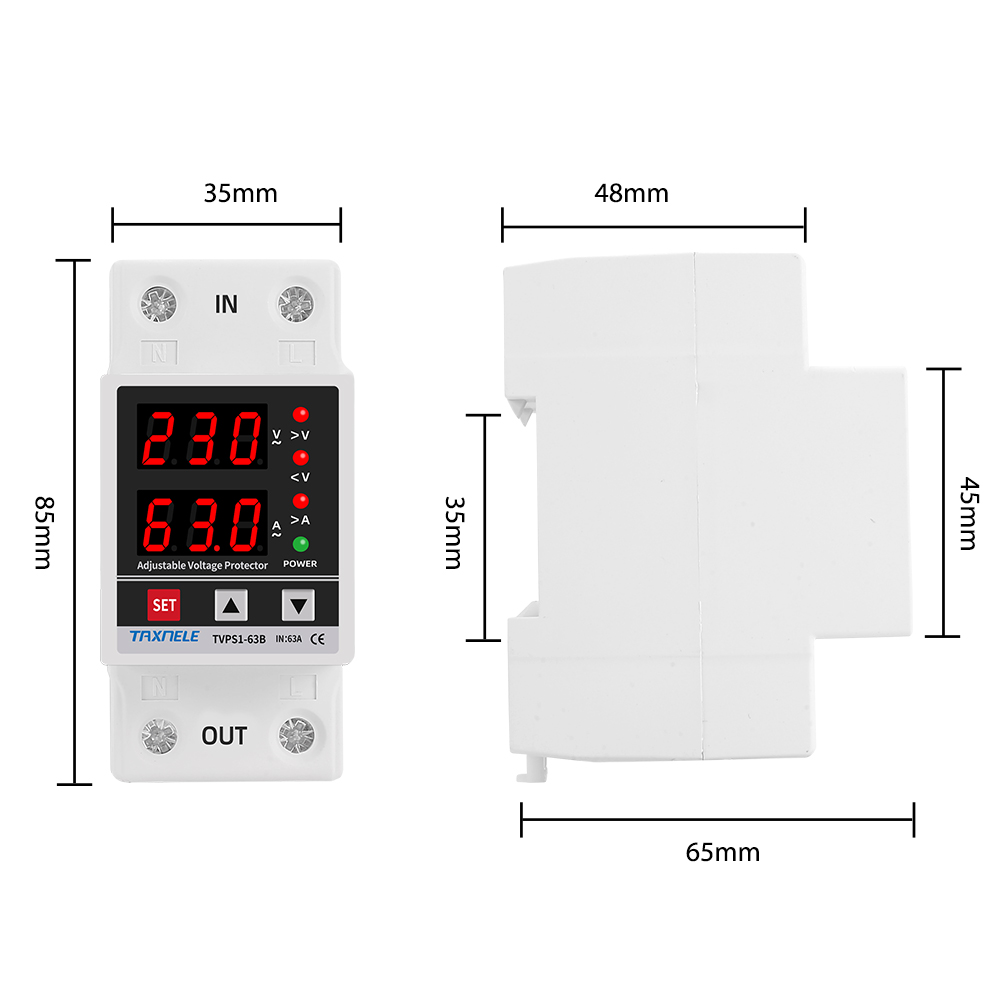

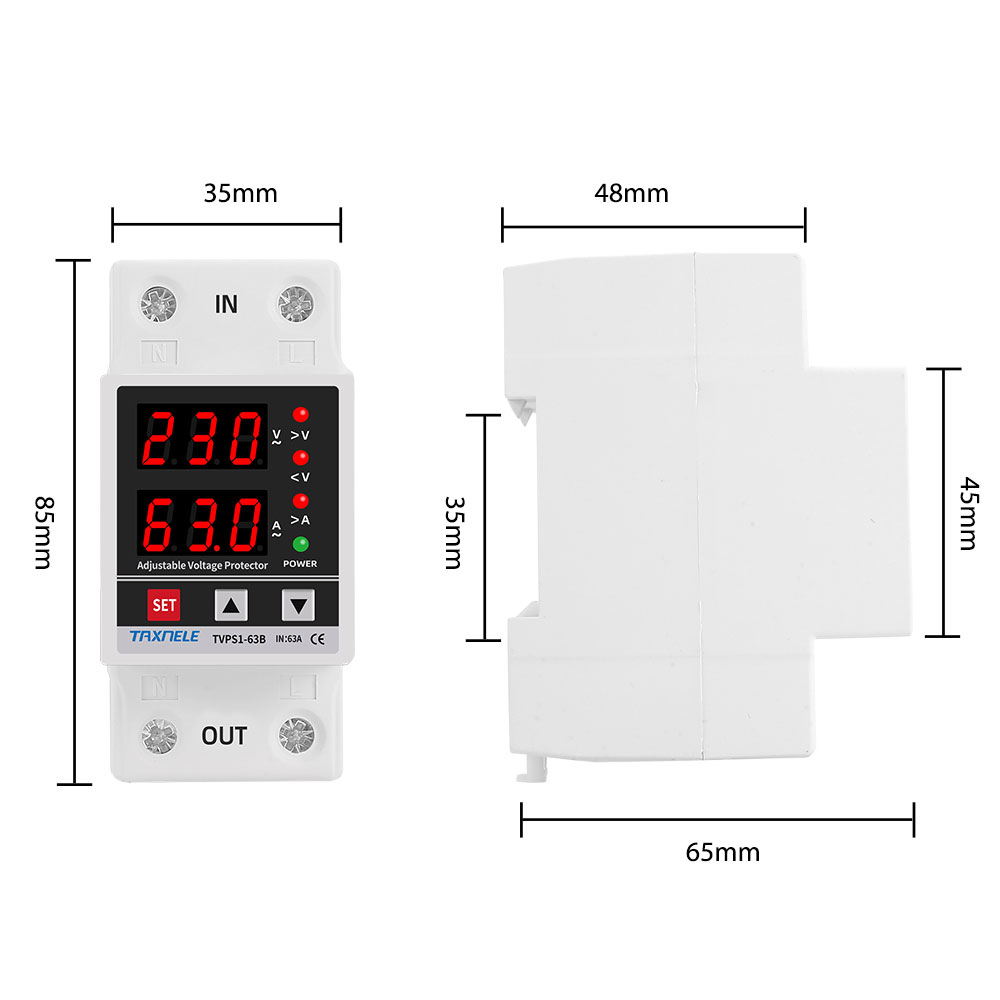

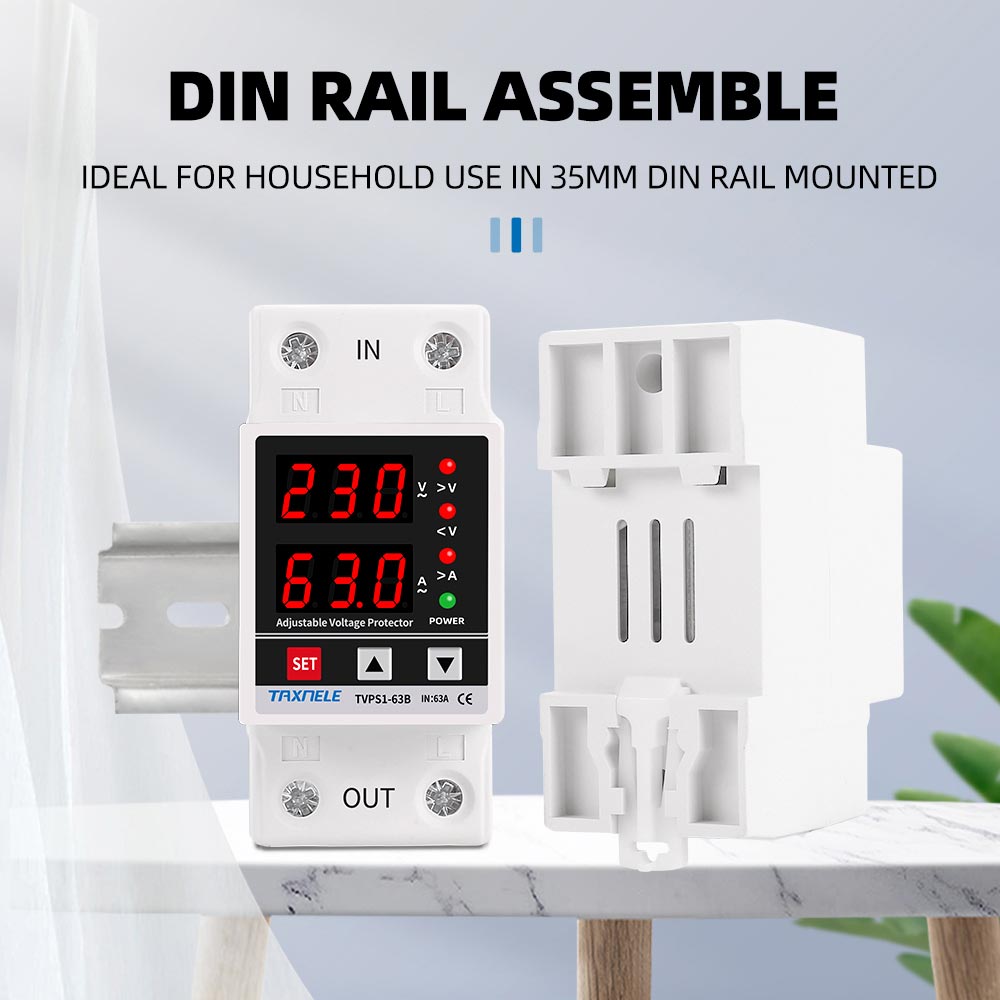

11.Installation:35mm DIN rail
Noted: When you first connect the product, you have to wait about 10 second(Power-on delay time:1s~500s(default:10s)),  after the red light turn off, then the product will work.
