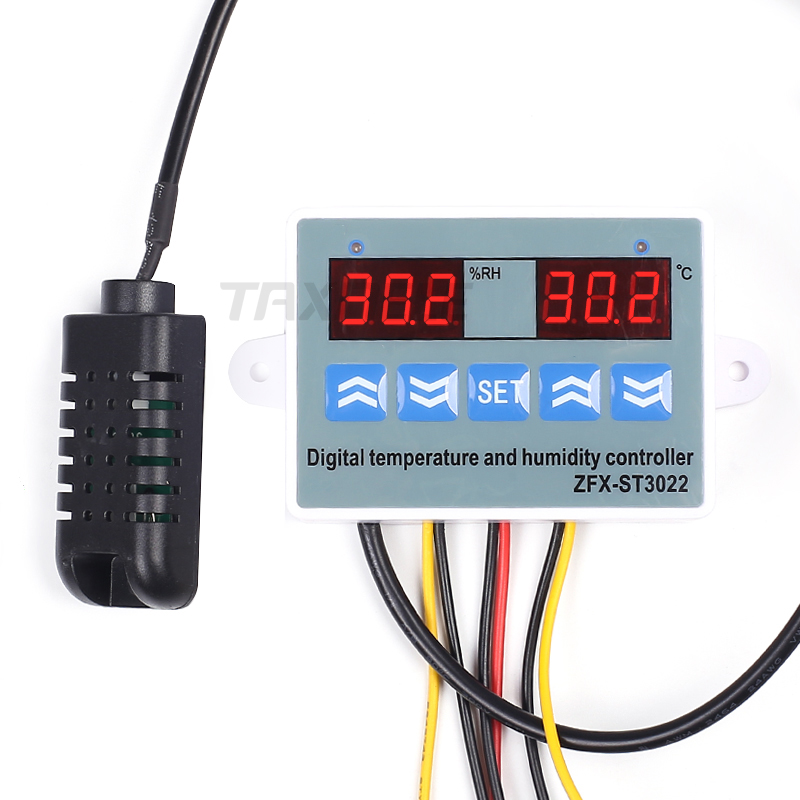

Digital Temperature Humidity Controller

Product Description

• Control range:1%RH-99%RH
• Load power:10A/AC220V
• Measurement range:-20℃~80℃
• Humidity range:1%RH-99%RH
• Measurement error:±3%RH(environment temperature at 25℃)
• Temperature precision:1℃ Humidity precision:1%RH
• Display accuracy:1%RH
• Power Supply:DC12V/DC24V/220V(Choose)
• Output type:10A relay output probe type
• Temperature: NTC precision ±1℃
• Humidity:resistance type sensor precision ±3℃

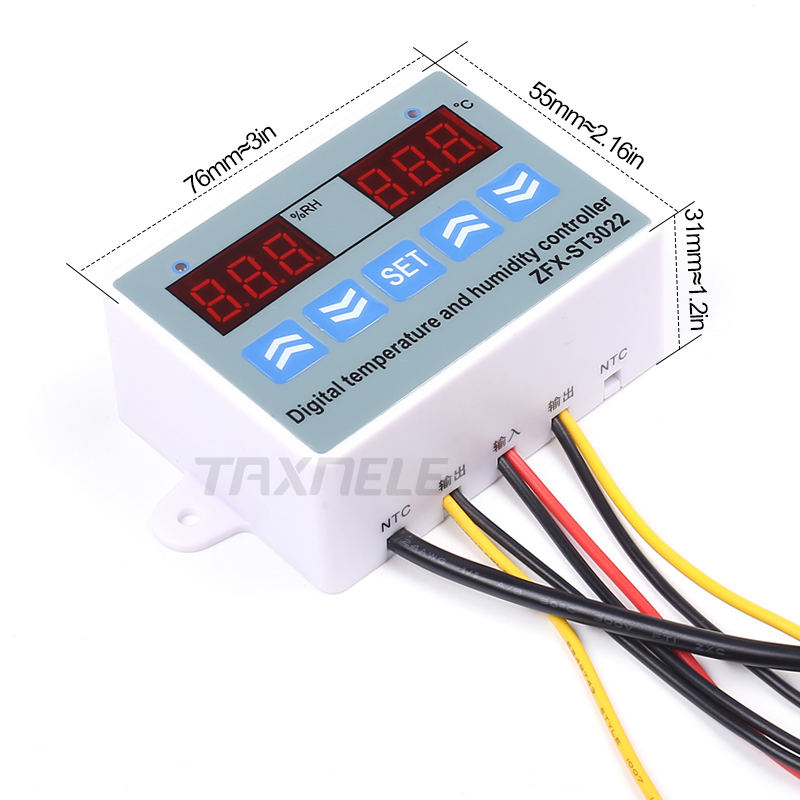

• Dimension:90*60*26.5mm(L*W*H)
• Temperature control object:one channel temperature(heating and refrigeration ventilator)
• Or humidity(Dehumidify or humidify electrical appliance)
• Probe line length:standard 1.5m
• Permanent memory of parameter:set the all parameter with permanent memory
• Power failure at the operation time:run after the power supply.
• Working environment: temperature 0-55℃ humidity90%RH without condensation

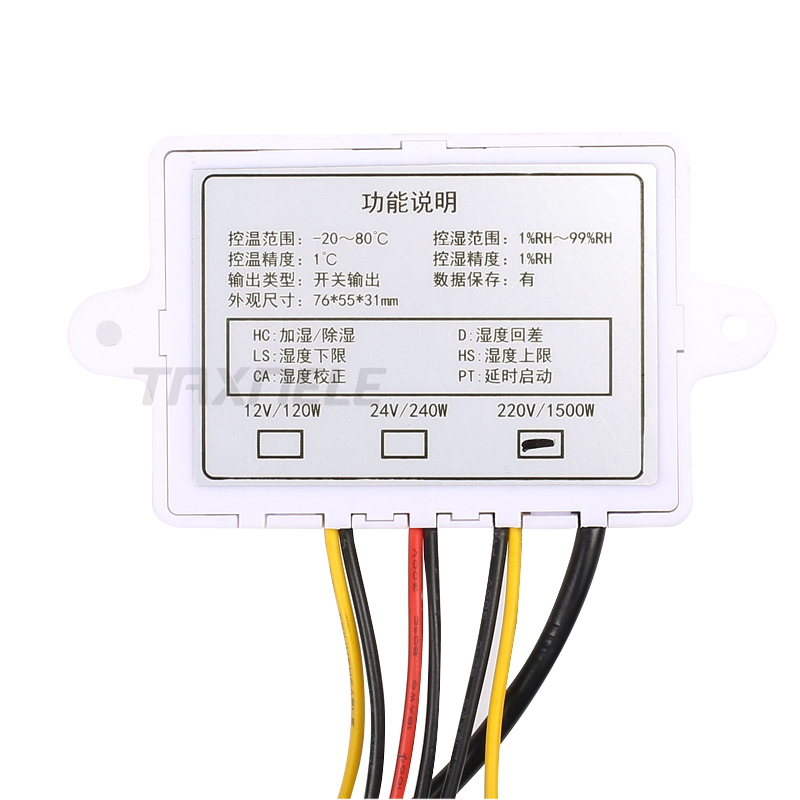

Menu code description:

Humidity control setting:Press Set keyboard one time,press three second enter into setting menu after humidity display flashing,it will display code HC.Press "▲ "keyboard or "▼"keyboard can cyclical selection HC-CP-PU-CA-HP parameter code.Please press Set keyboard if you need enter into a code,press "▲ "keyboard or "▼"keyboard to modify the required numerical for five seconds then return automatically.

Press "SET" keyboard twice enter into setting menu after temperature display flashing,and display code HC,press "▲ "keyboard or "▼"keyboard can cyclical selection HC-CP-PU-CA-HP

parameter code,please press "SET " keyboard if you need enter into one code ,press "▲ "keyboard or "▼"keyboard to modify the required numerical for five seconds then return automatically.

Dehumidification control: The way of mode control (code HC) it will be dehumidification control when setting as C.For example,set the humidity control value as 50% RH and humidity difference as 5%,relay start output,When environment humidity value ≤setting humidity value(50%RH),relay close output.

Damping control:The way of humidity control  (code HC) ,set H as damping mode,for example,set the humidity control value as 50%RH and humidity difference as 5%RH. When temperature humidity value ≤setting value(50%RH)-difference/(5%RH) ,relay start output.when temperature humidity ≥setting value(50%RH),relay stop output.

HC:mode selection,H means humidifying mode,C means dehumidificatio mode.

D:return difference, start the humidify when in the humidifying mode=displaying humidity-return difference.start the humidify when in dehumidification mode=displaying humidity + return difference.

PU:Delay to start.when relay stop output and start timing.the interval time of next boot must greater than delay start time to avoid start frequently.

HP:Humidity upper limit alarm:when humidity exceed upper limit alarm,digital tube displaying "-H-",humidity lower than alarm setting value it will return back from alarm automatically.

LS;Humidity lower limit alarm:When humidity exceed lower limit,digital tube display"-L-",humidity higher than alarm setting value it will return back from alarm automatically.

CA:Humidity correction:Humidity correction value plus displaying value.For example:humidity display 50% RH correction humidity increase 5% RH,then display humidity will be 55%RH.

Heating mode:Mode control way (code HC) set as H ,it is heating mode.For example,set control heating value as 35℃,temperature return difference is 2°.when environment humidity value ≥setting temperature value(35℃)-return difference(2 ℃),relay start output.when humidity value≤setting humidity value (35℃),relay close output.

Cooling control:The way of mode control ,set (HC code) as C ,it is cooling mode.For example,set cooling as 35 ℃ and temperature return difference as 2 ℃.When environment value ≥ setting temperature value (35℃)+return difference(2℃),relay start output:when environment humidity value≤setting humidity value(35 ℃),relay stop output.

HC:Mode selection,C means cooling mode,H means heating mode.

D:return difference,start temperature when in heating mode= displaying temperature"-return difference.Start temperature when in cooling mode=displaying temperature+return difference.

PU:Delay to start,When relay stop output and start timing,the interval of time must greater than delay start time to avoid start frequently.HP:temperature upper limit alarm:when temperature exceed upper limit alarm,digital tube display"HHH",temperature lower than alarm setting it will return back from alarm automatically.

LS:temperature lower limit alarm:when temperature exceed than lower limit alarm,digital tube display "LLL",temperature higher than alarm setting it will return back from alarm automatically.

CA temperature correction:Humidity correction value plus display humidity value,for example:humidity displaying 35℃ ,correction humidity increase 5℃,then temperature should be 35℃.

Reset:Press left up and down keyboard until screen displaying 888,then it will coma back to factory reset.
