Digital Thermostat

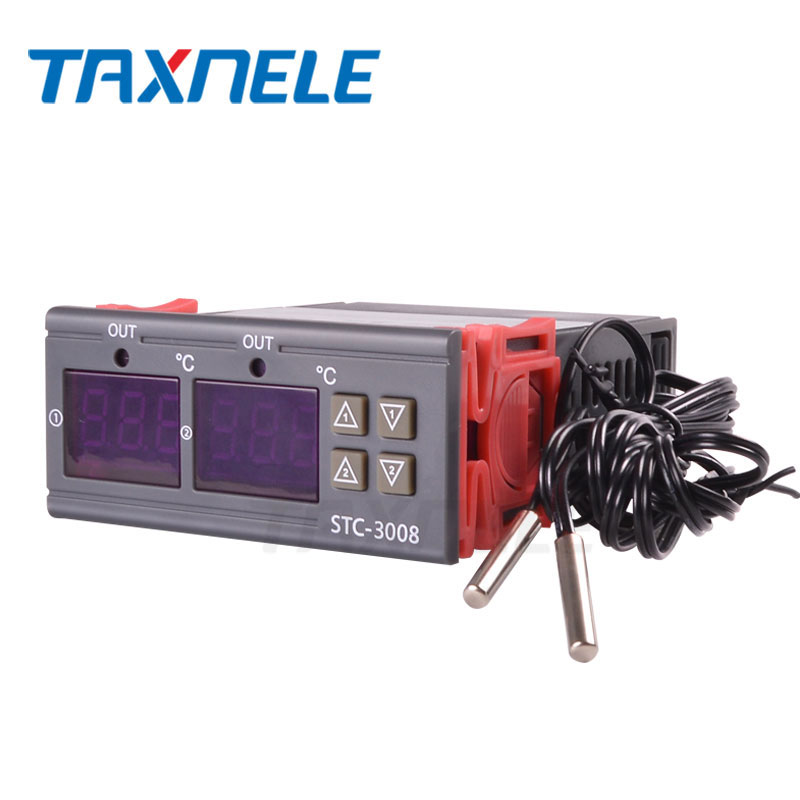

STC-3008 Dual Digital Thermostat Temperature Controller

Display Type:Digital
Temperature measuring range: -55 ° C ~ 120 ° C
Resolution: 0.1 ° C
Accuracy:±1° C
Product description: STC-3008 Dual Digital Thermostat Temperature Controller
INQUIRY

Features:

1.Automatic conversion of refrigeration and heating mode

2.Control mode of return difference;Temperature display resolution 0.1

3.The temperature controller has the characteristic of high accuracy, high sensitivity, high stability.

4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid

5.Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc

Specifications:

Display Type:Digital

Style:Standing Station

Temperature sensor: NTC 10K

Senor length:1.0m

Temperature measuring range: -55 ° C ~ 120 ° C

Resolution: 0.1 ° C

Accuracy:±1° C

Power supply: 110-220VAC 50/60Hz, 12V DC , 24V DC(Please choose power supply when ordering)

Power consumption: <3W

Storage temperature: -30 ° C ~ 75 ° C

Relative humidity: 20% ~ 85% (No condensate)

Relay contact capacity: Two Relay Cool 10A/240VAC; Heat 10A/240VAC

Package:

1X Temperature Controller

2X Waterproof Temperature Sensor

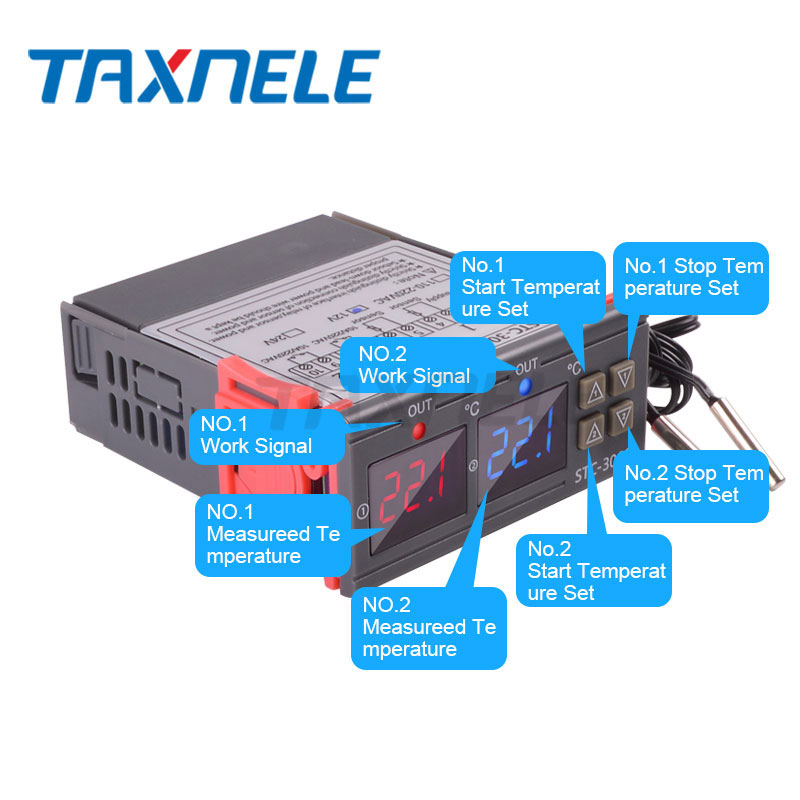

Set startup temperature:
Press the "up" button once to display the starting temperature. Long press the "up" button for about 3 seconds,The required temperature can be set by the up and down keys
Set the stop temperature:
Press the button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the up and down keys
