AC Meter

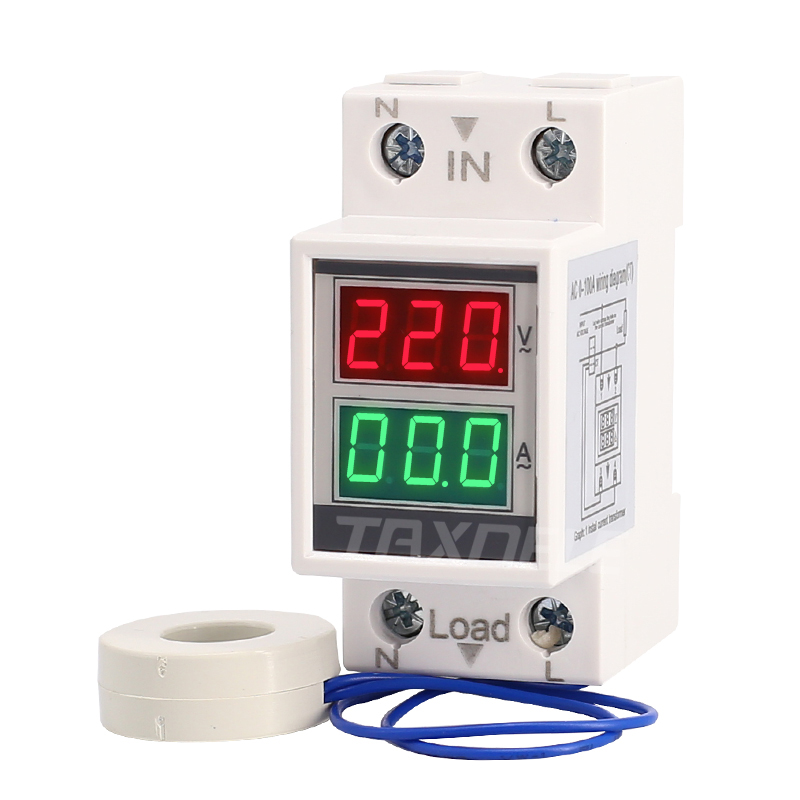

DIN Rail Digital Voltmeter Ammeter

Item Name: DIN Rail LED Digital Voltmeter Ammeter
Test Range: AC 80-300V 0-100A 60A

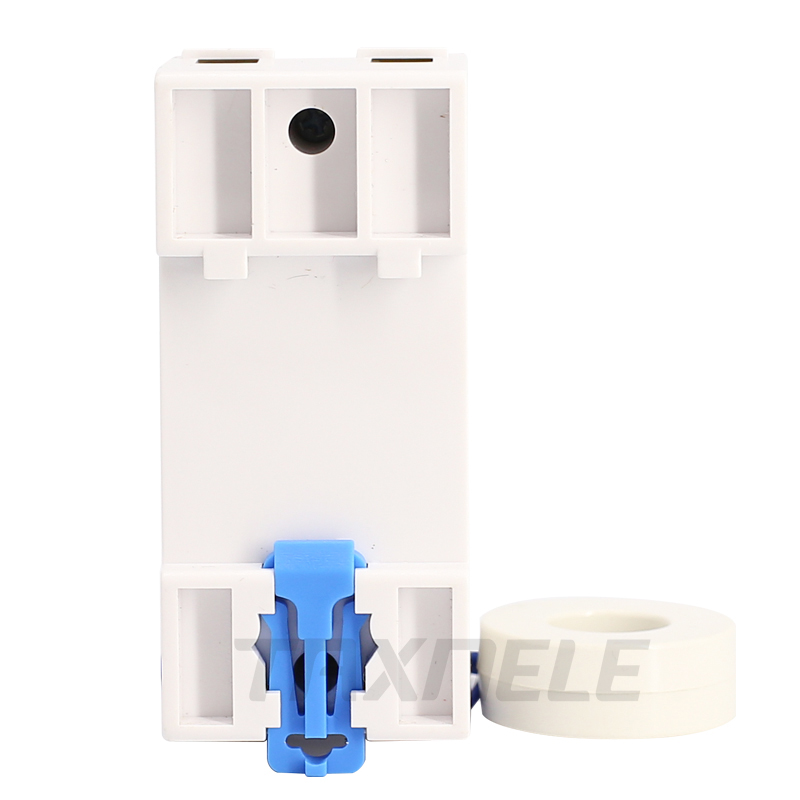

Installation: 35mm Din rail
Size: 37x87x64m
Product description: Din-rail digital meter can measure and display AC voltage, AC current at the same time ; A precision small current transformer for the meter is provided .
INQUIRY

Specifications:
Accuracy: 1%±2 words
Display mode: 0.32-inch Led ( AC voltage with red led and AC current with green led)
AC voltage Range: AC 80.0-300.0V
AC Current Range: AC 0-59.9A/ 0-99.9A (when measure current lower than 10A, the accuracy is 0.01A, when measure current between 10.0 and 99.9A, the accuracy is 0.1, the accuracy auto-change)
Power supply:<0.2VA
Speed: 2 per second
Installation: 35mm Din rail
Size: 37x87x64m
