DC Circuit Breaker

2P DC 1000V L7 MCB Solar Mini Circuit Breaker Overload Protection Battery Switch 10A 16A 20A 25A 32A 40A 50A 63A Photovoltaic PV

Product description: 2P DC 1000V L7 MCB Solar Mini Circuit Breaker Overload Protection Battery Switch 10A 16A 20A 25A 32A 40A 50A 63A Photovoltaic PV
INQUIRY

Parameter
TXL7-63PV Series DC Miniature Circuit Breaker,It is mainly used for the overloading and short circuit protection in DC distribution system and Solar PV System.

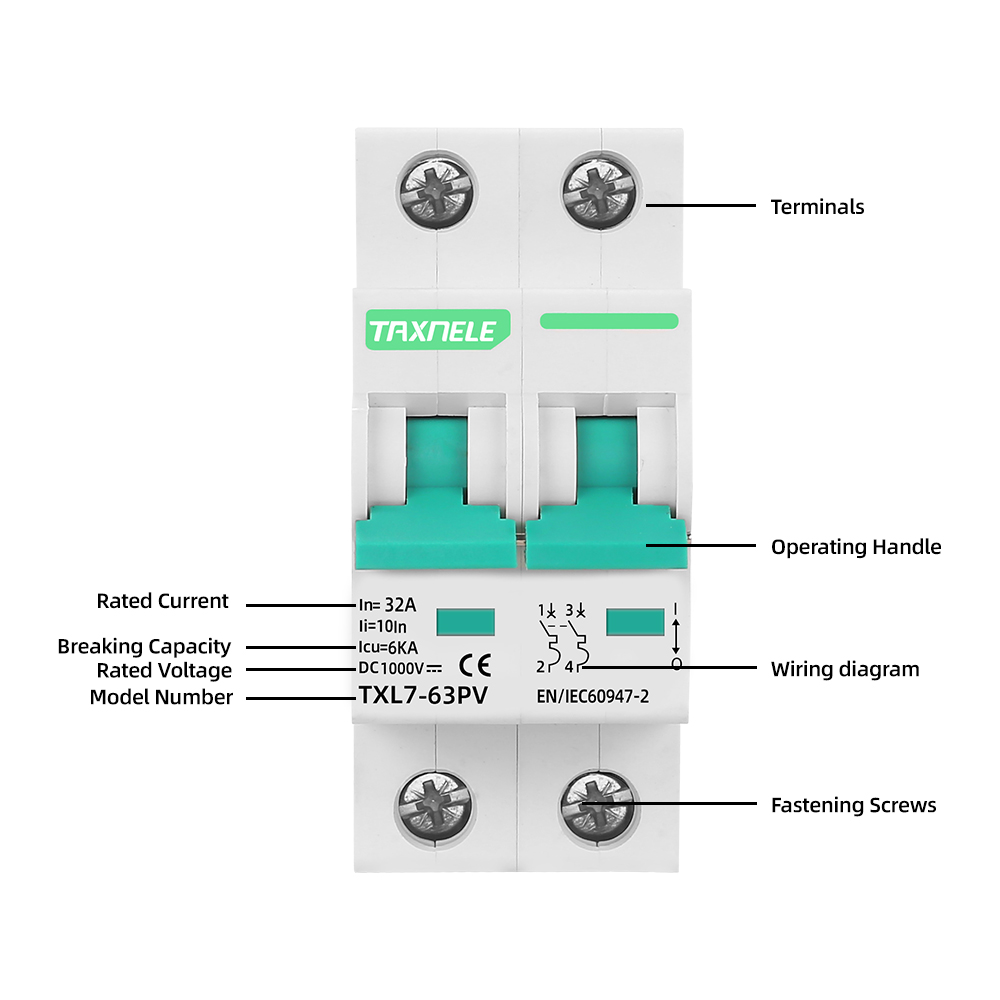

DC Circuit Breaker TXL7-63PV

Rated Operating Voltage DC12-1000V

Rated Current :10A 16A 20A 25A 32A 40A 50A 63A

Rated Insulation Voltage Ui 1200VDC

Ultimate Breaking Capacity lcu 6KA

Curve Type C

Mechanical Life 20000

Electric Life 10000
