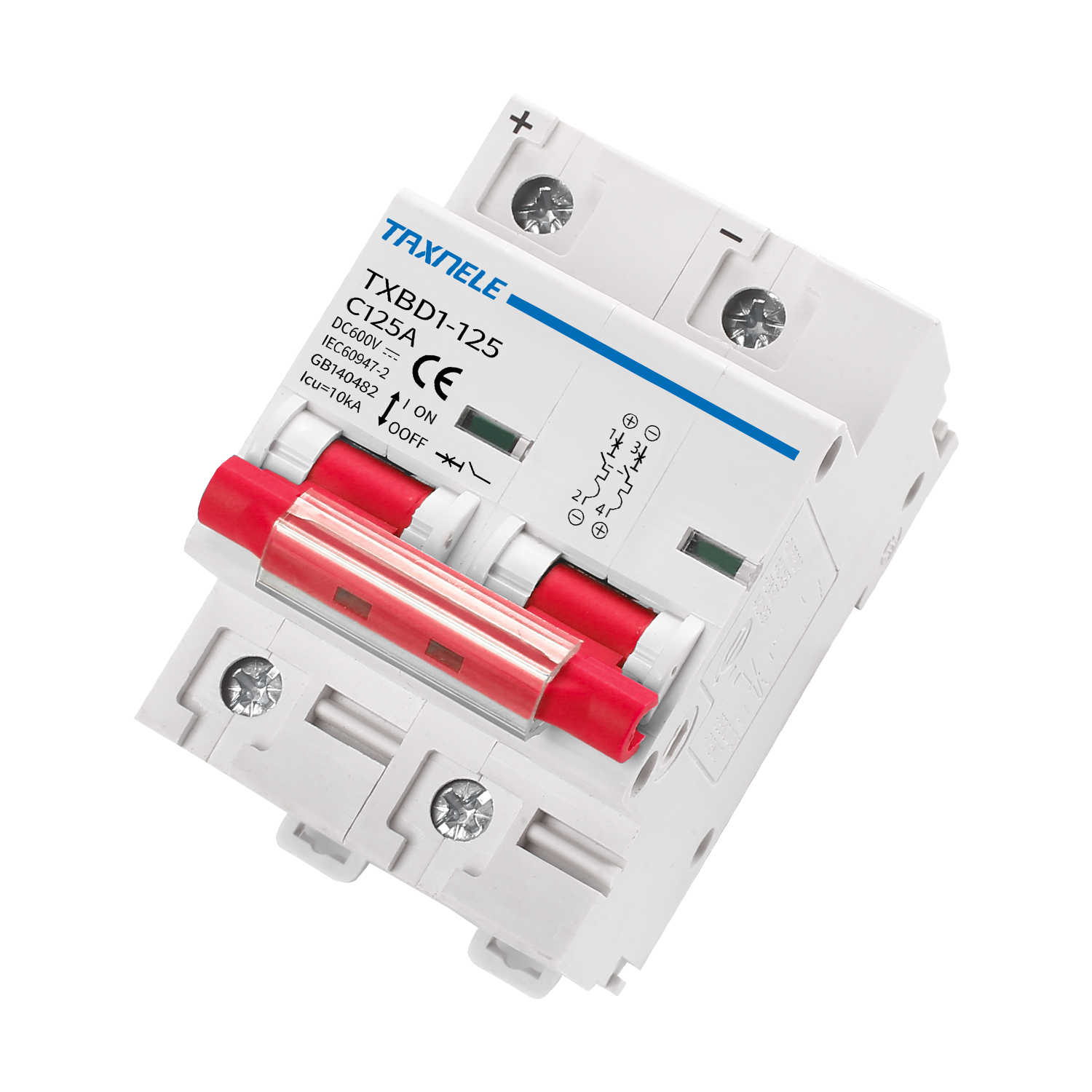

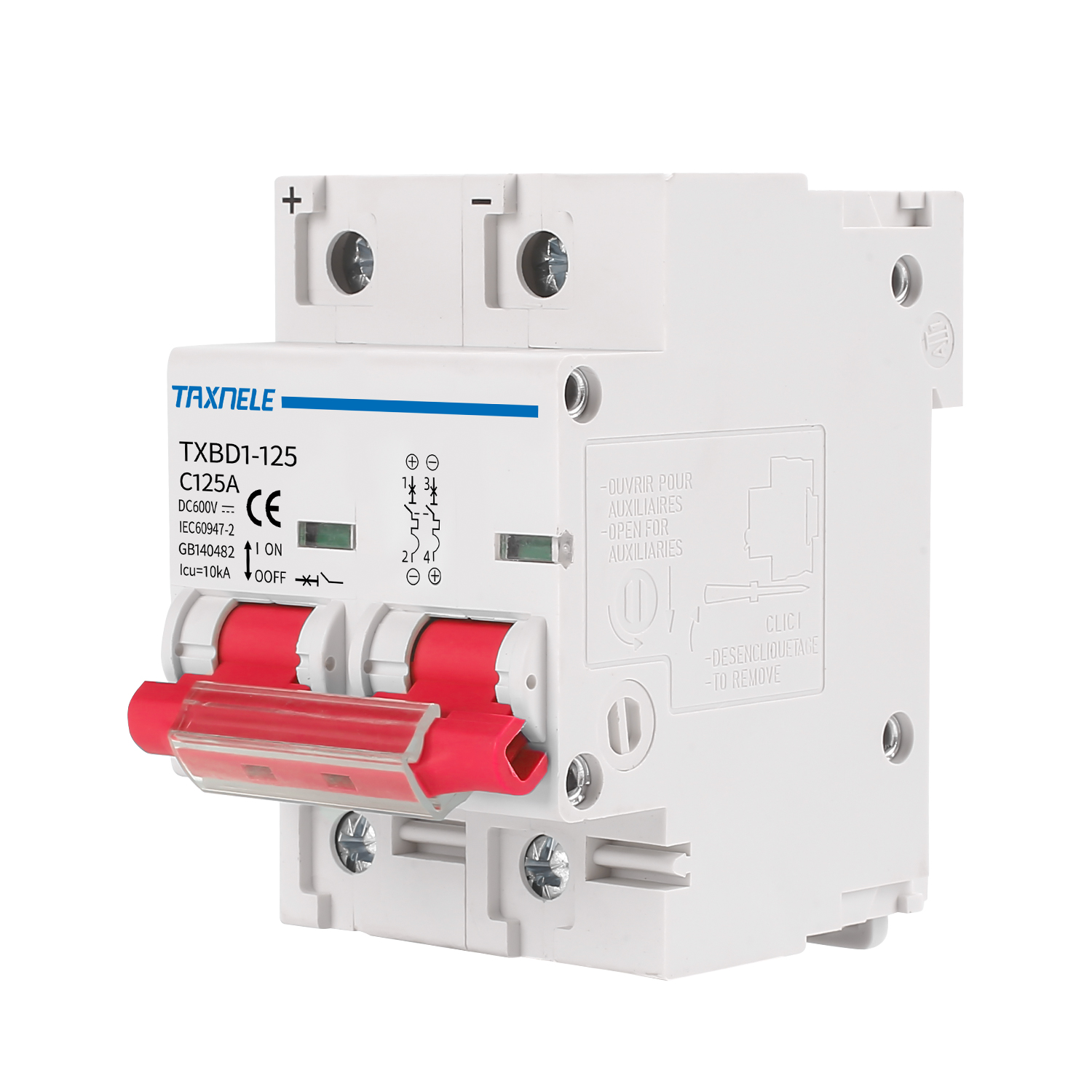

2P DC 600V Solar Mini Circuit Breaker Battery Switch 125A 100A DC MCB for Photovoltaic PV System

Product description: 2P DC 600V Solar Mini Circuit Breaker Battery Switch 125A 100A DC MCB for Photovoltaic PV System
INQUIRY

Parameter

TXBD1-125 Series DC Miniature Circuit Breaker,It is mainly used for the overloading and short circuit protection in DC distribution system and Solar PV System.

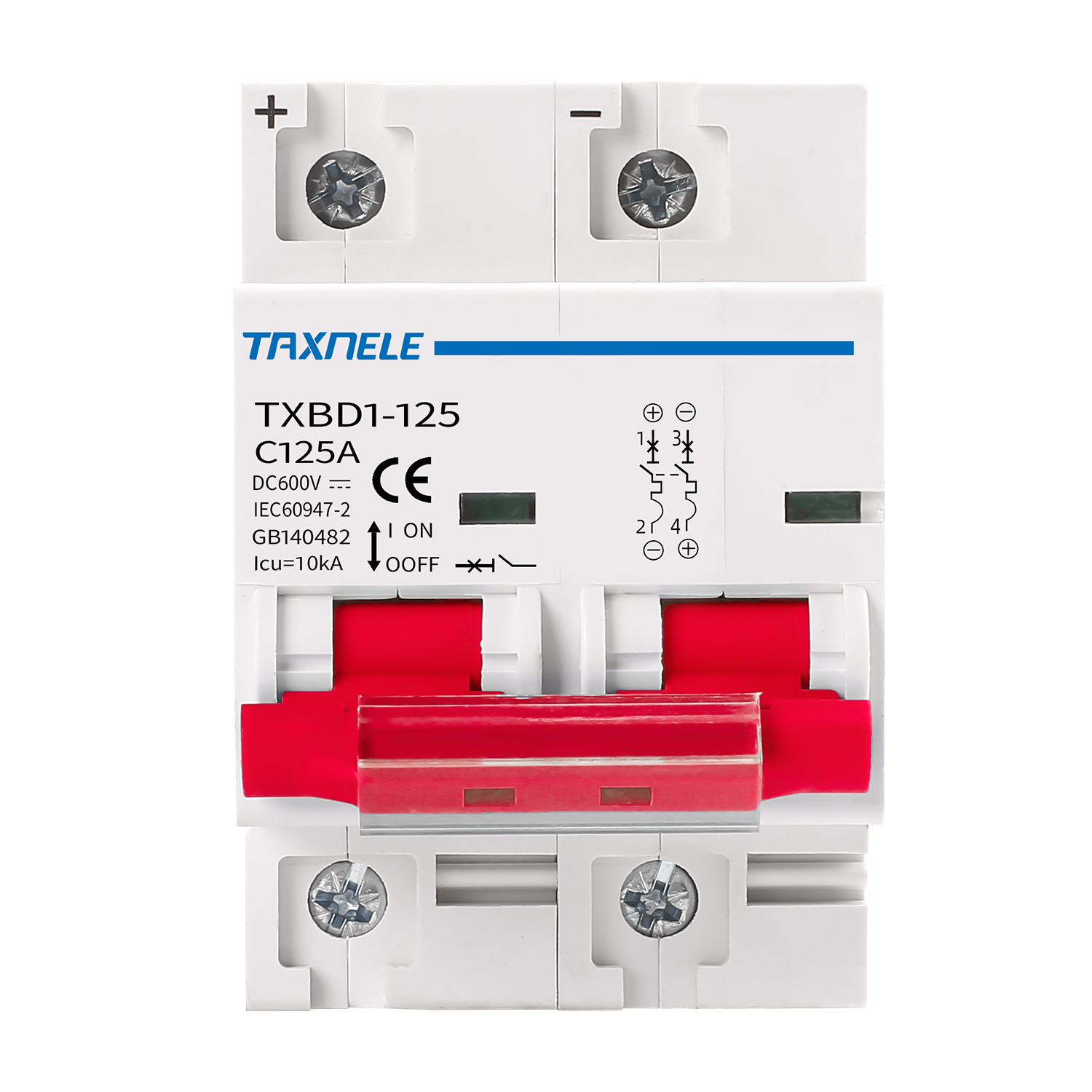

DC Circuit Breaker TXBD1-125
Frame Degree Rated Current 125A
Pole 2P
Rated Operating Voltage DC12-600V
Rated Current In 1-125A
Rated Insulation Voltage Ui 800VDC
Ultimate Breaking Capacity lcu 10KA
Curve Type C
Mechanical Life 20000
Electric Life 10000
