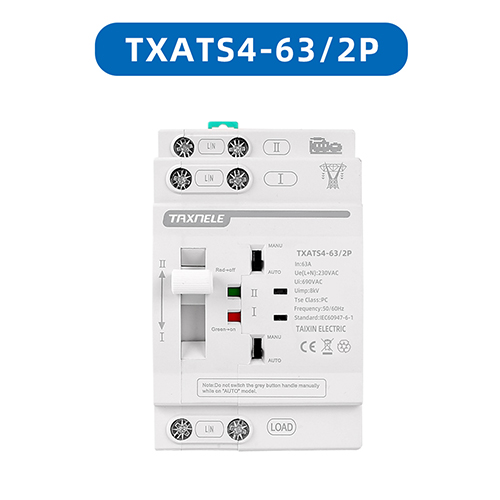

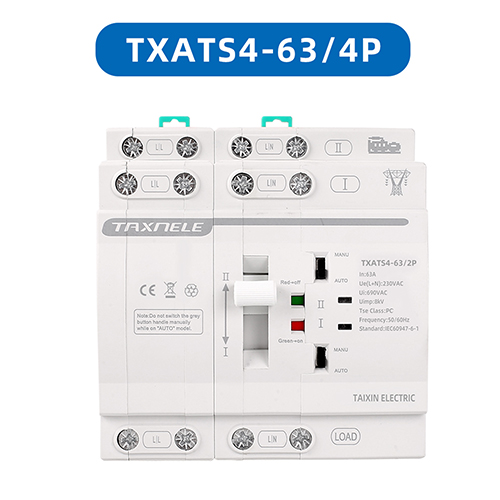

Taxnele Din Rail 63A ATS Dual Power Automatic Transfer Switch Electrical Selector Switches Uninterrupted Power 2P 4P

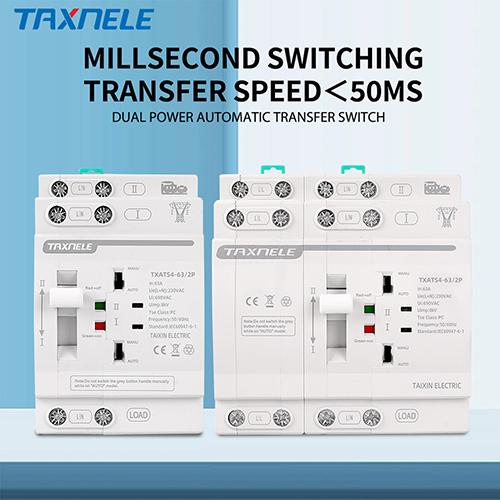

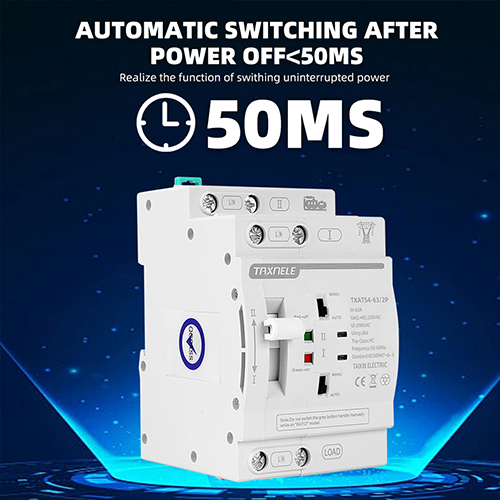

TXATS4 automatic transfer switch is a PC class infrequent change-over switch, with two-station design (commonly used for A and standby for B), suitable for AC systems with AC 50-60hz and rated current 10A-63A. The main function of the automatic transfer switch is when the main power (common power supply A) fails, the ATS will automatically switch to the backup power (Backup power supply B) to continue working (switching speed <50 milliseconds), which can effectively solve the troubles caused by power outages.



When both A and B have electricity, priority is using A Power



Attention!

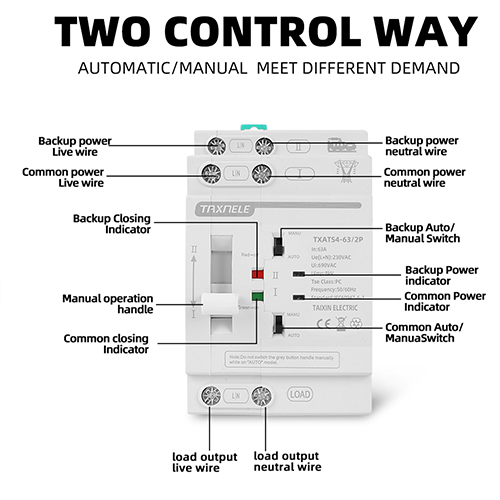

When manual operation the mode selection switch must be in "manual" position

The coil can work normally at 85%-110% of the rated operating voltage. Too low or Too High input voltage may cause the coil to overheat and burn out.
