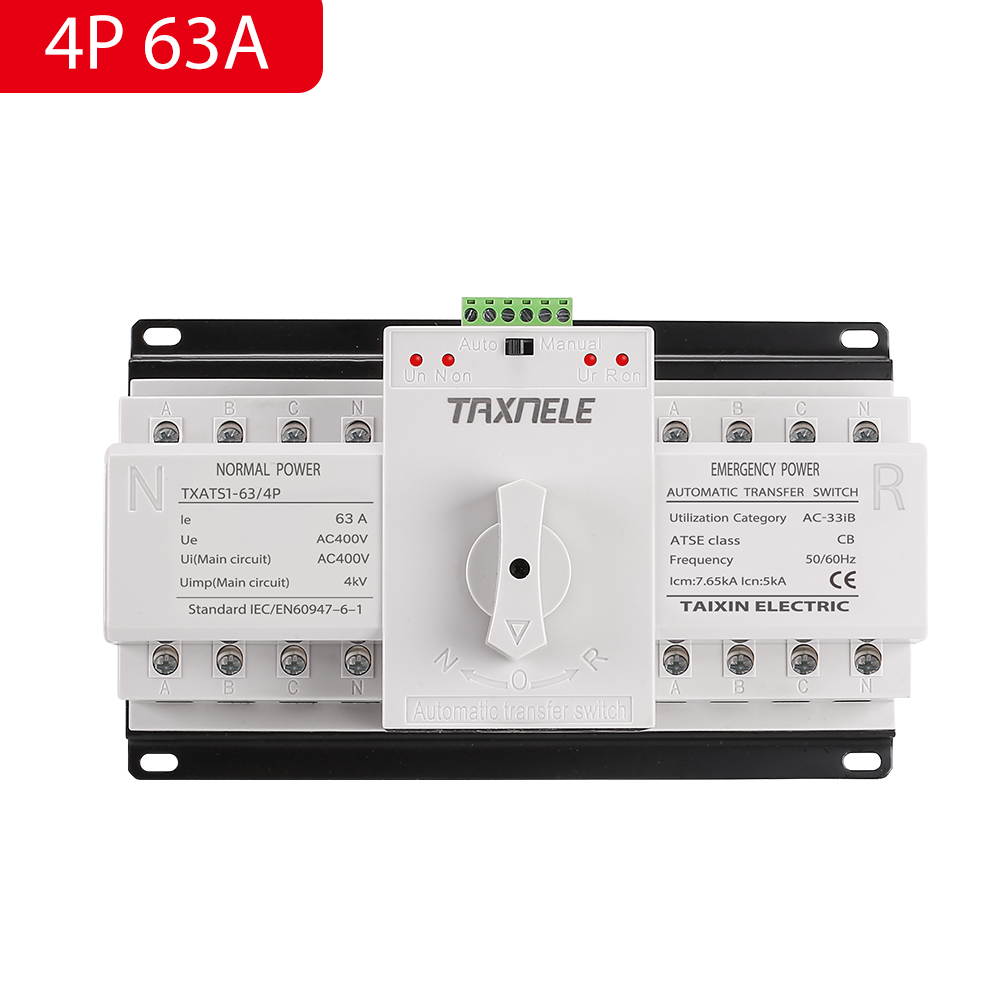

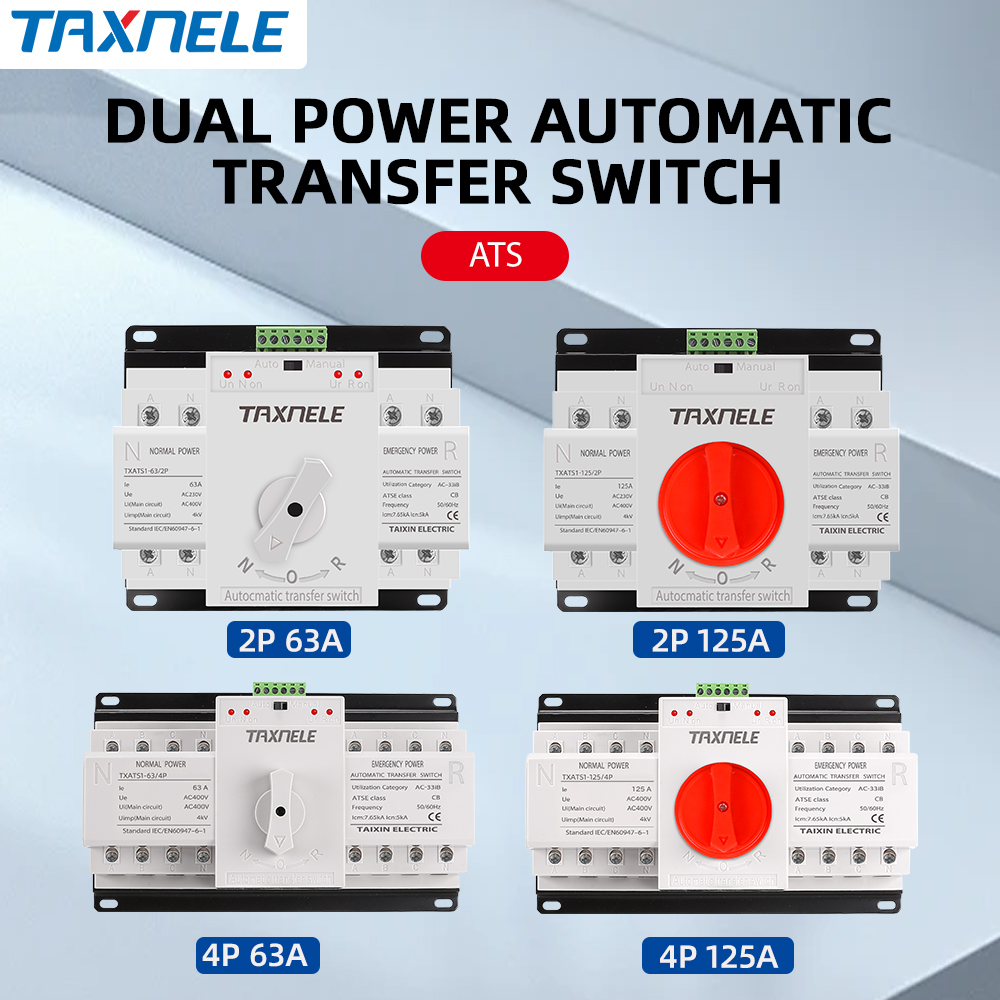

ATS 2P 4P 63A 125A Dual Power Automatic Transfer Switch AC230V 380V MCB Auto Changeover Switch Circuit Breakers

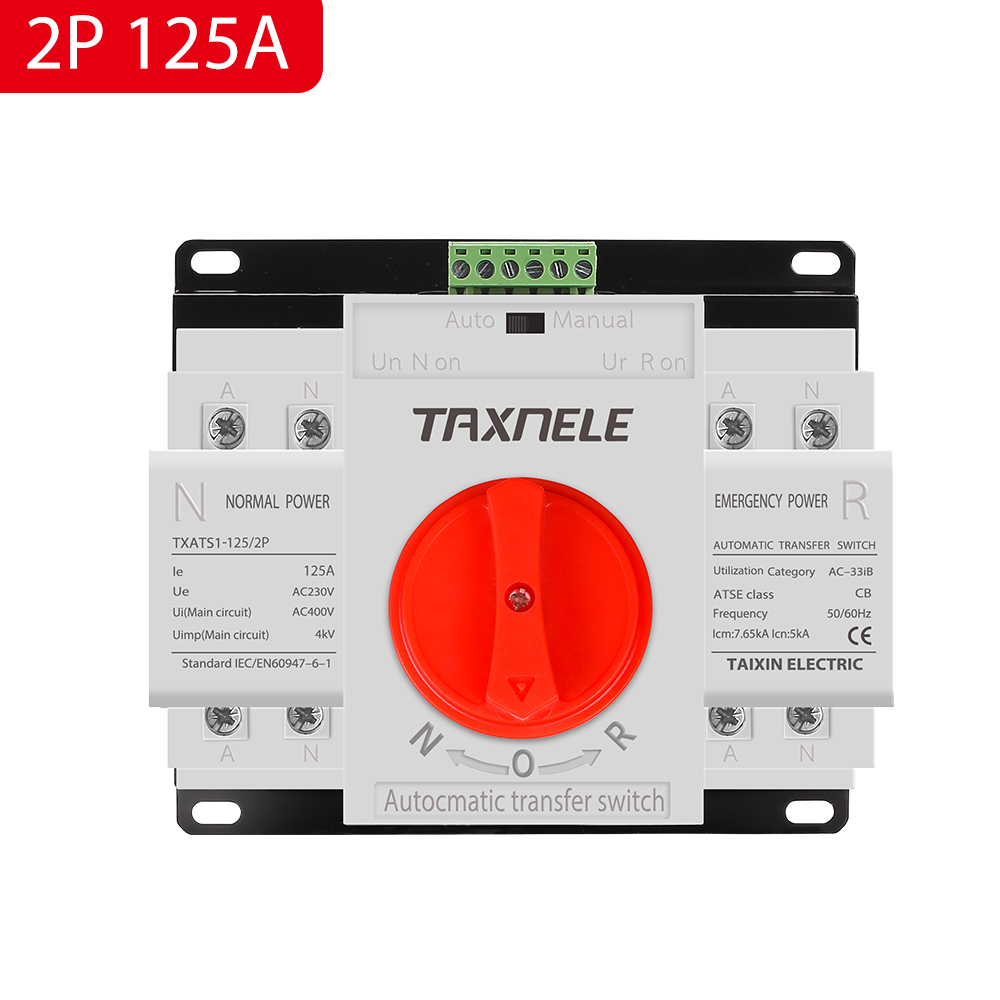

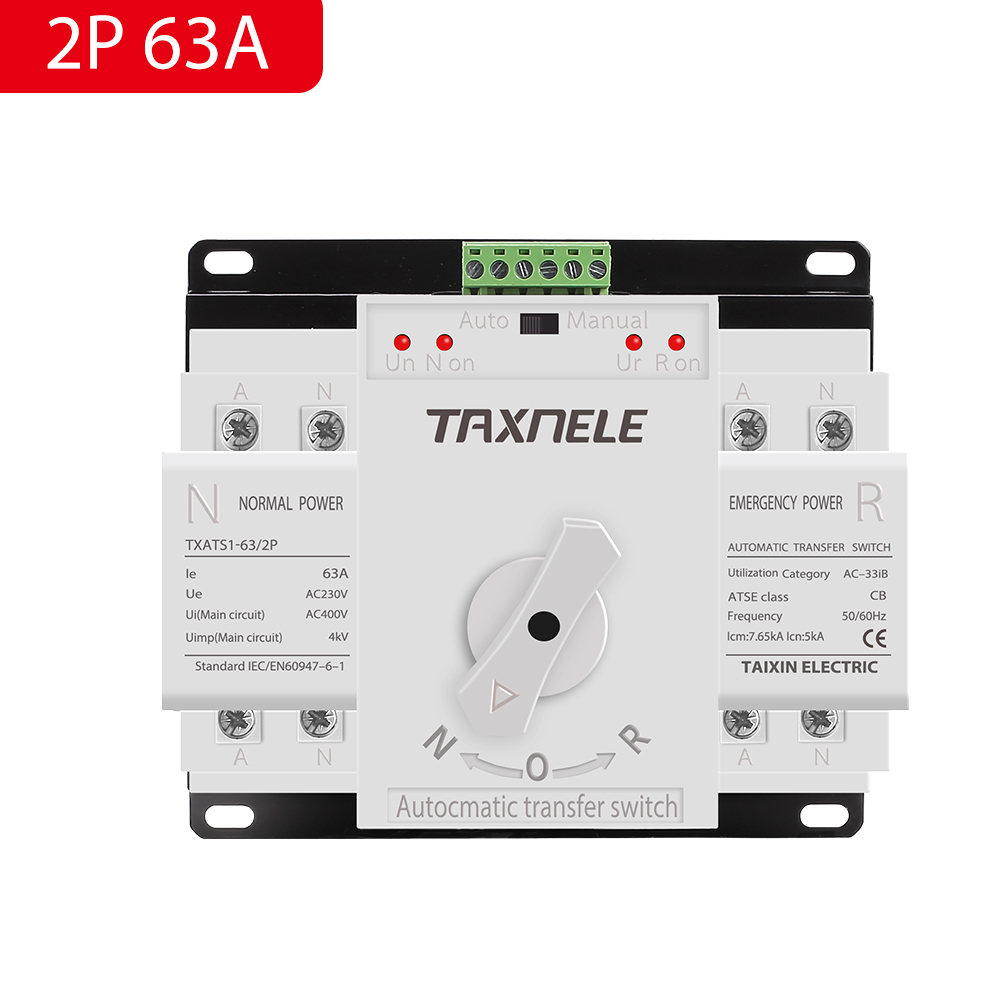

Rated: voltage 2P AC200V-240V 50/60HZ

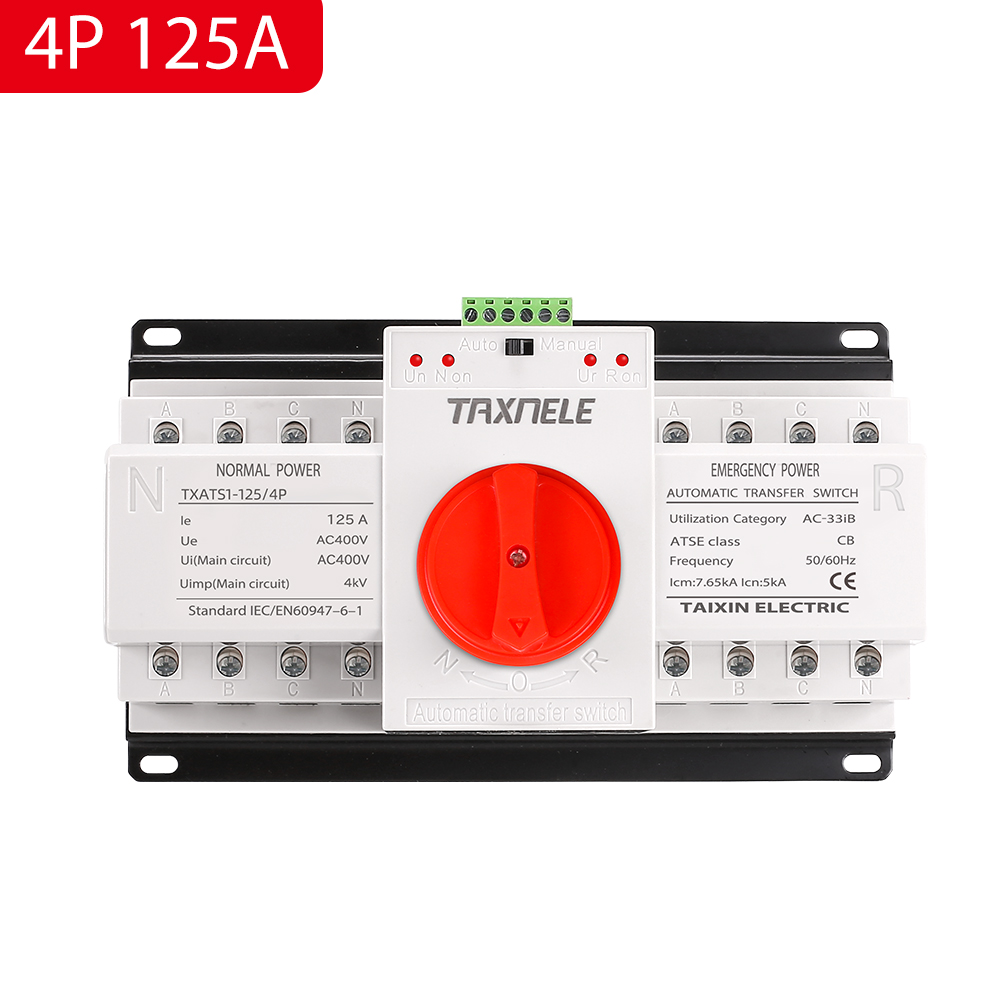

                        4P AC350V-440V 50/60HZ



Noted: power will be interrupted when Switching.



Switch time<4S



Max current: 63A 125A



1. Usage

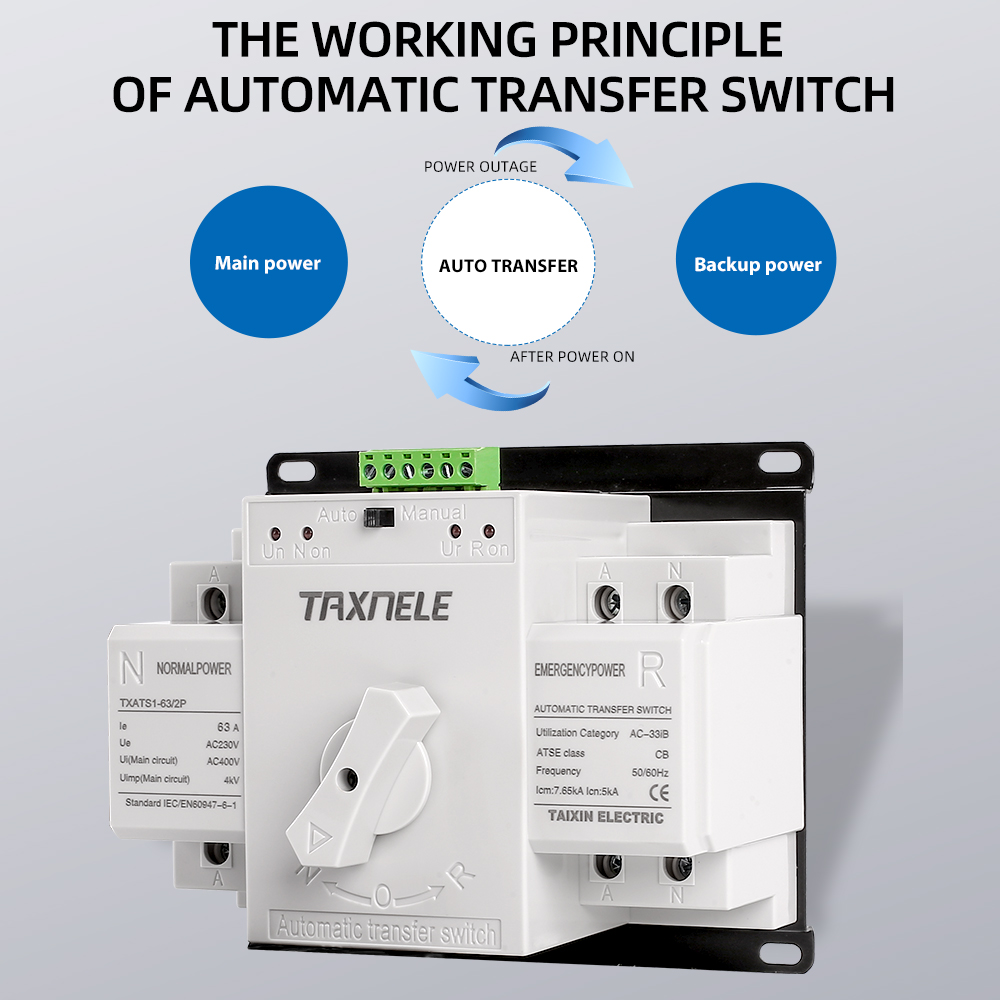

 Dual power Automatic transfer switch can switch to Normal power or reserve power automatically. Please noted that the switch can't turn on or turn off the generator. This switch Normal power first. If normal power on, the switch will switch to Normal power. If normal power off, and reserve power on, the switch will switch to reserve power.

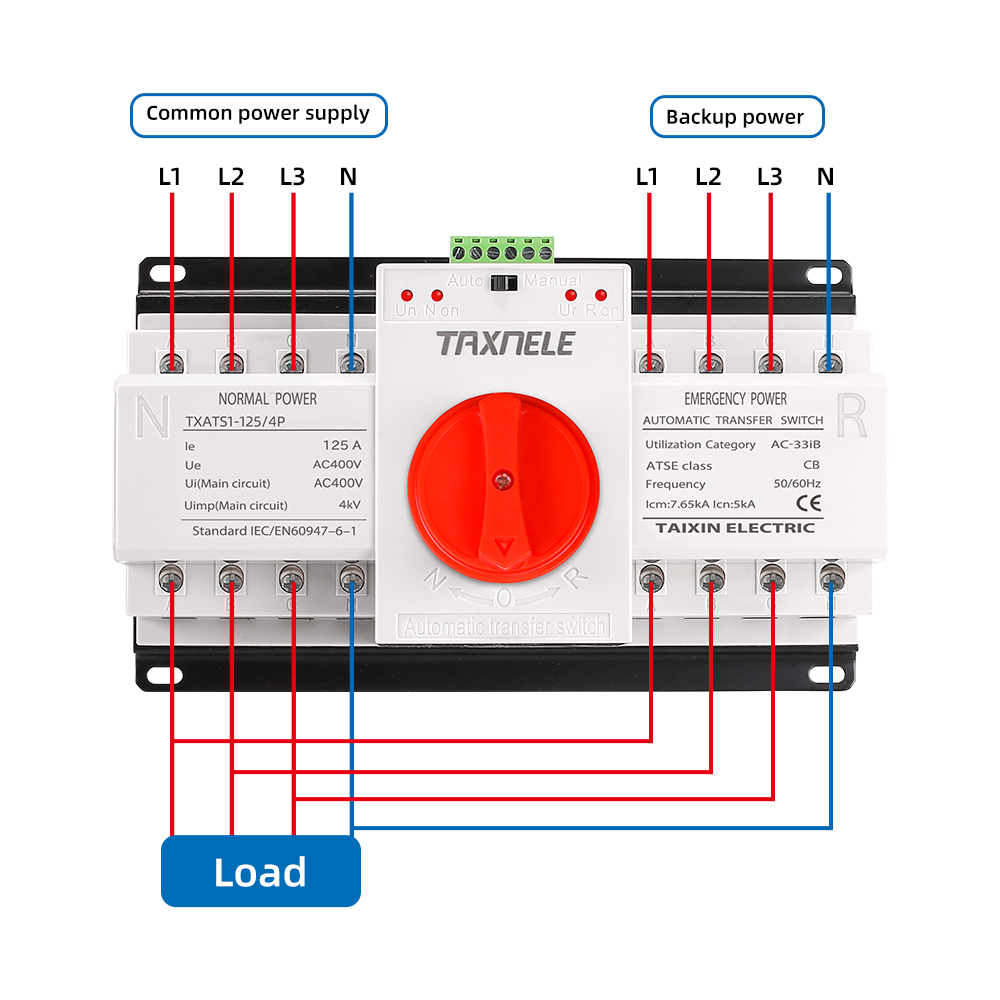

2.Connect

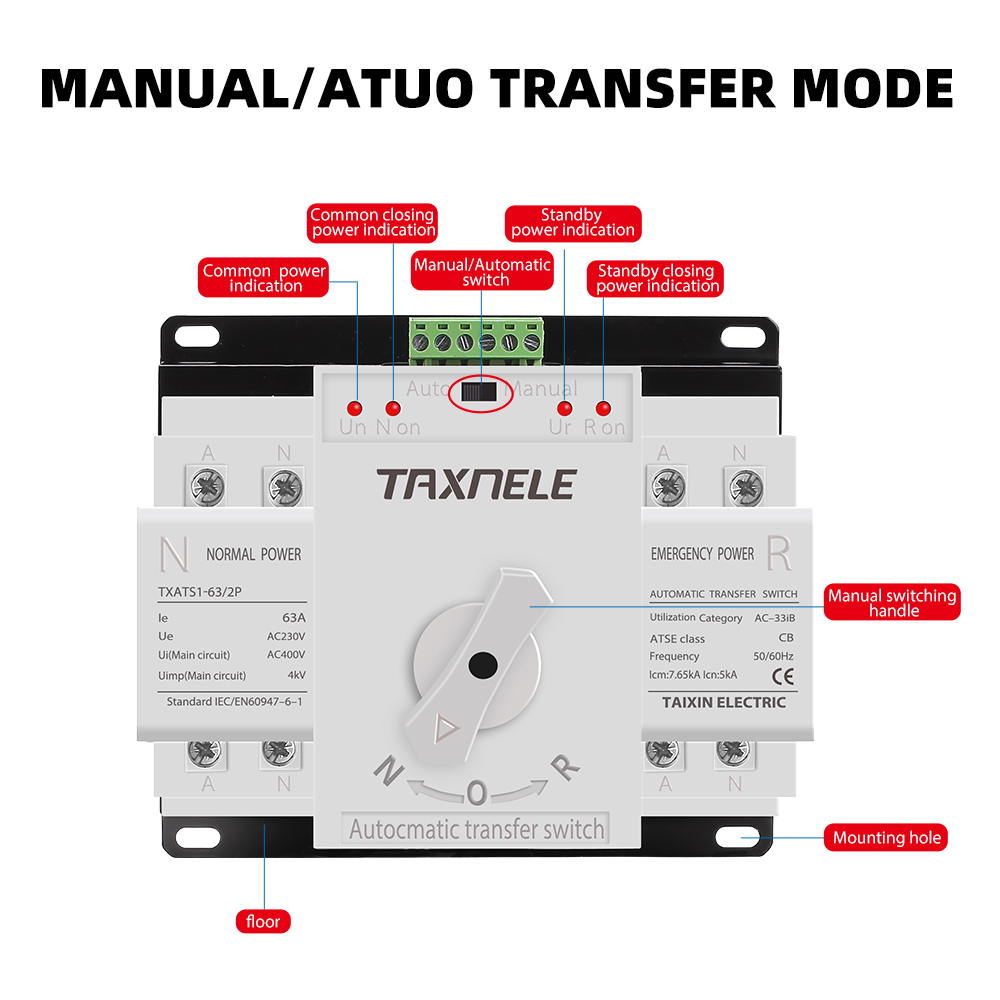

Press the button to Automatic, the switch will switch to Normal power or reserve power automatically.

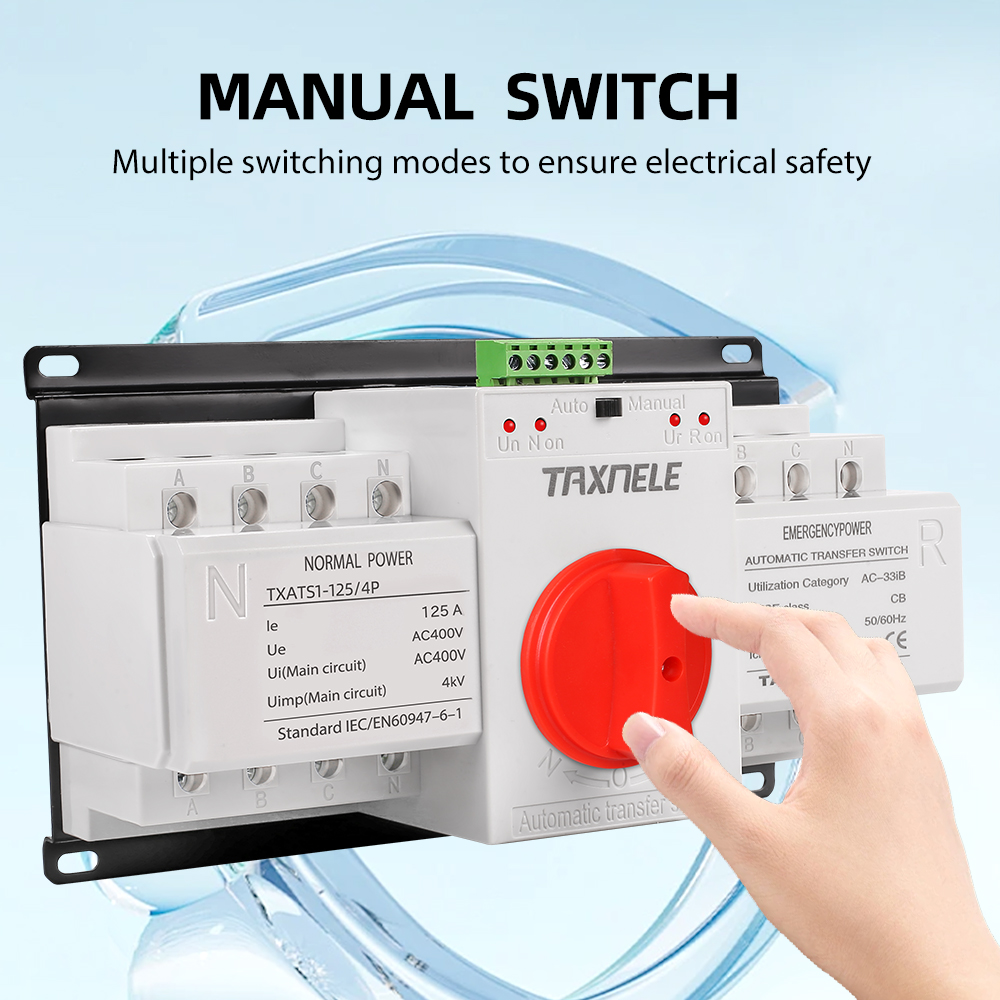

Press the button to Manual, Then you have to switch the Direction manually.



3.Application


TXATS1 is terminal type automatic transfer device. It's suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A/125A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits.

The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11

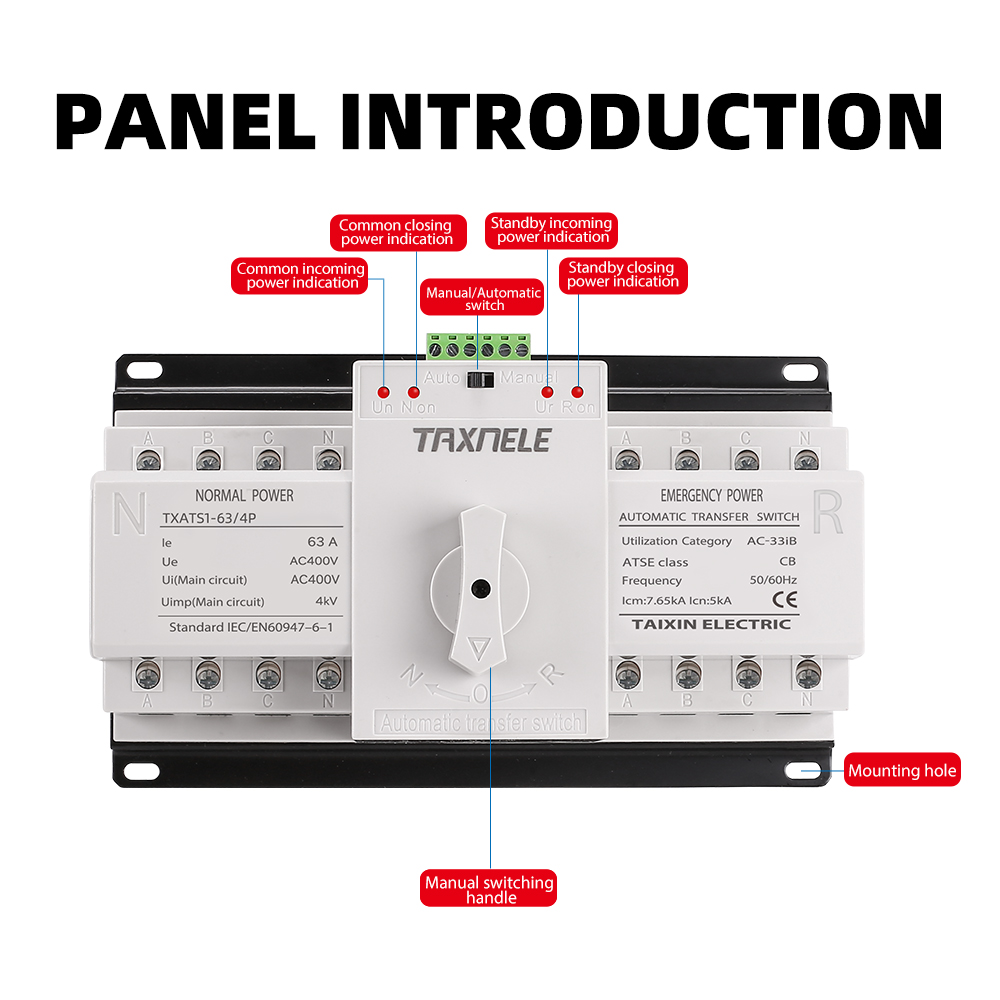

Press the button to Automatic, the switch will switch to Normal power or reserve power automatically.



Press the button to Manual, Then you have to switch the Direction manually.
