DC Meter

0.56

Voltage Measuring range: DC 0 - 100V

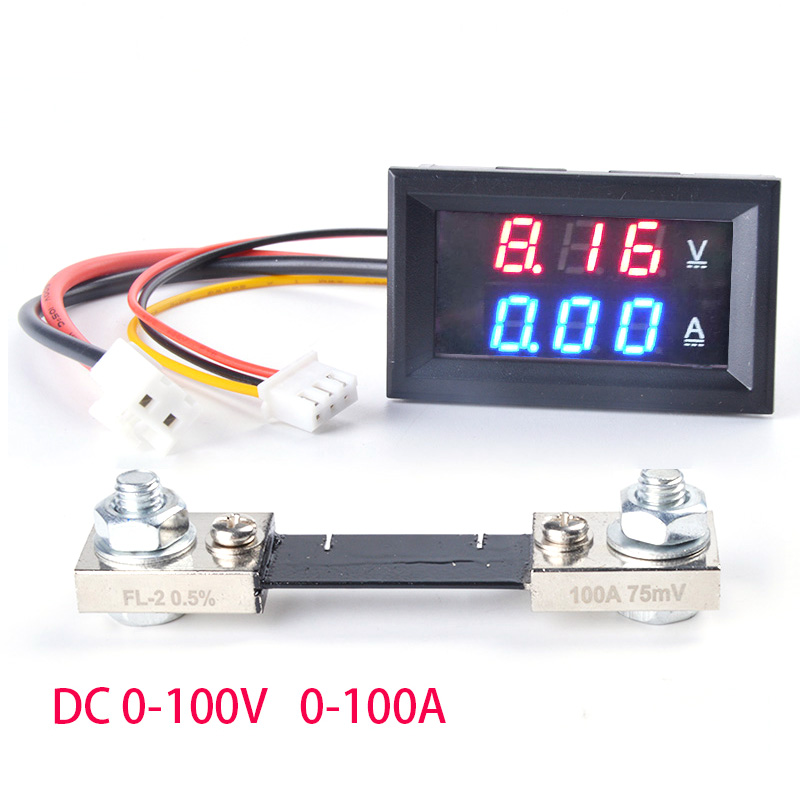

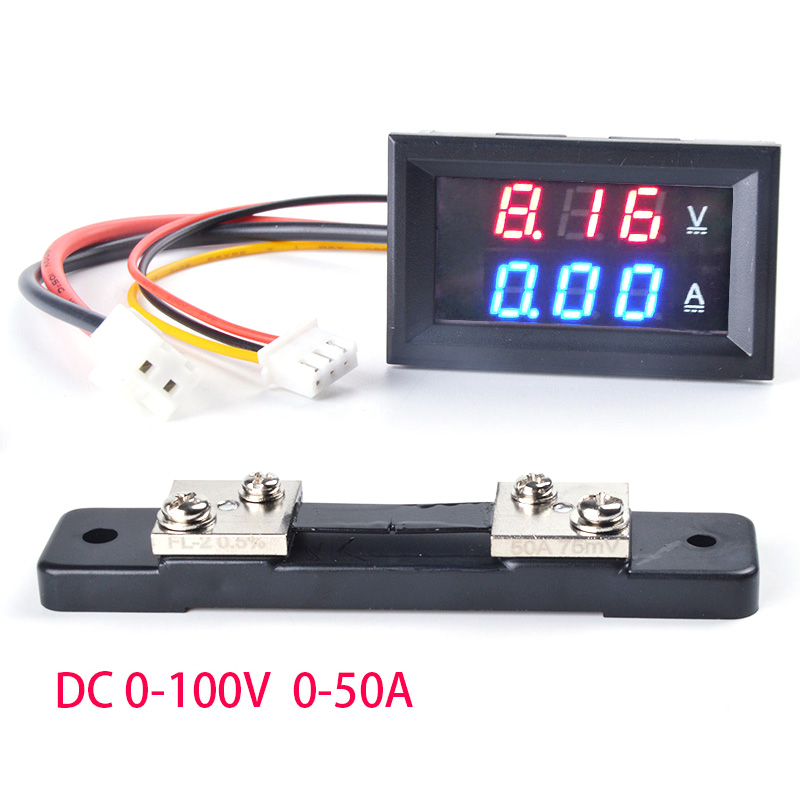

Current Measuring range: DC 0 - 50A,0-100A
Display: 0.28

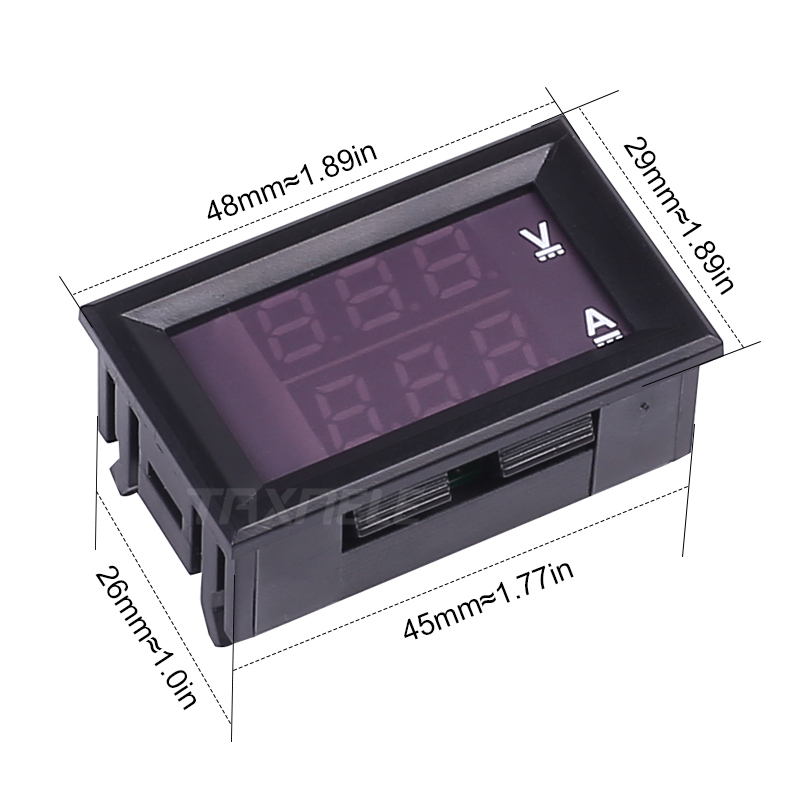

Dimensions:48mm*29mm*26mm
Product description: Black - Red : Working voltage of Meter itself:DC 4 - 30V Black - Yellow : Voltage Measuring range: DC 0 - 100V
INQUIRY

Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
Working current of Meter itself:≤20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 50A,0-100A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube, Two color blue and red
Refresh rate: about 300mS / times
Dimensions:48mm*29mm*26mm
Operation Temp: -10°-+65°
