DC Meter

DC Digital LCD Voltage Current Power Energy Meters

  • Working voltage: 6.5 ~ 100VDC
  • Test voltage: 6.5 ~ 100VDC
  • Rated power: 0-20A,0-100A(optional)
  • Measurement accuracy: 1.0
  • Product description: 1. electrical parameter measurement function (voltage, current, power, energy). 2. The voltage alarm function (over voltage alarm thresholds, backlighting and voltage flicker tips). 3. The power but
  • INQUIRY

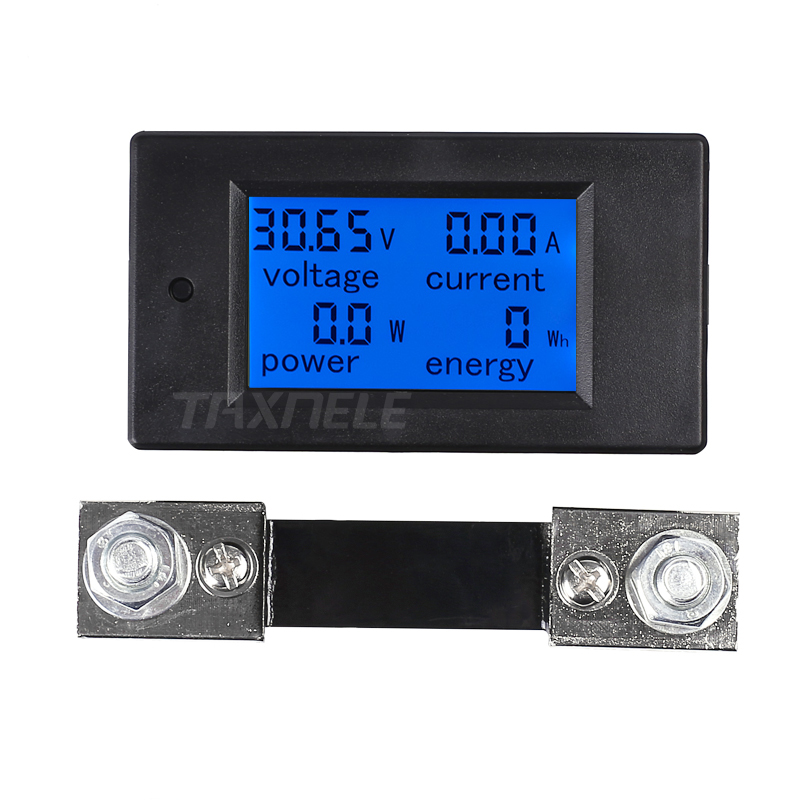

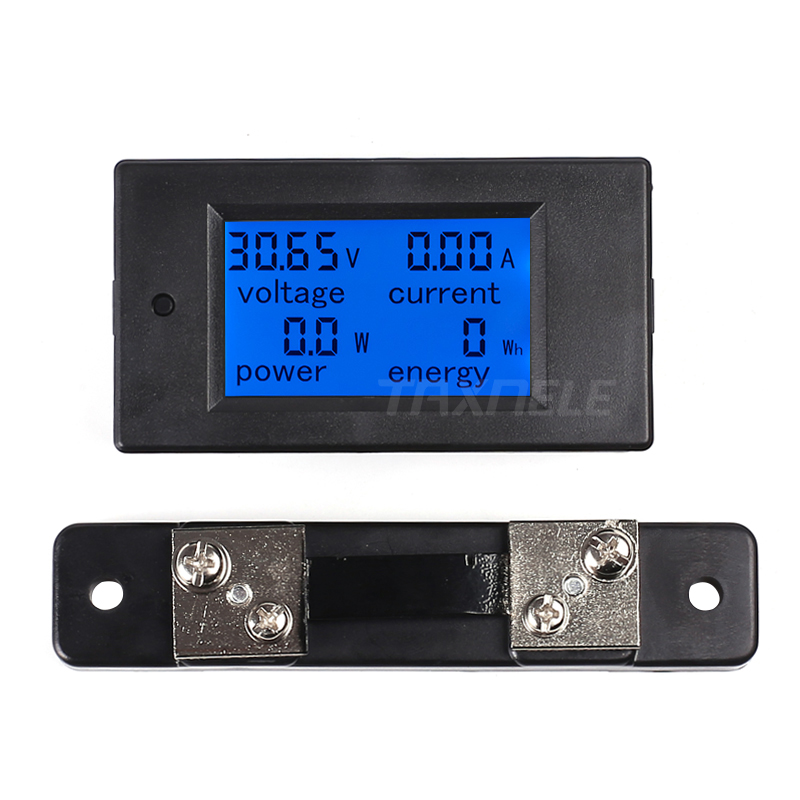

I Display Interface

  • Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.

II Display Format

1. Power: measurement range 0 ~ 10kW

1kW display format within 0.0 ~ 999.9W;

From 1kW display format 1000 ~ 9999W.

2. Power: measurement range 0 ~ 9999kWh

10kWh within the display format 0 ~ 9999Wh;

Above 10kWh display format 10 ~ 9999kWh;

3. Voltage: test range 6.5 ~ 100V

Display Format 6.50 ~ 99.99V

4. Current: Test Range 0 ~ 100A,0-20A (optional)

Display Format 0.00 to 99.99.
