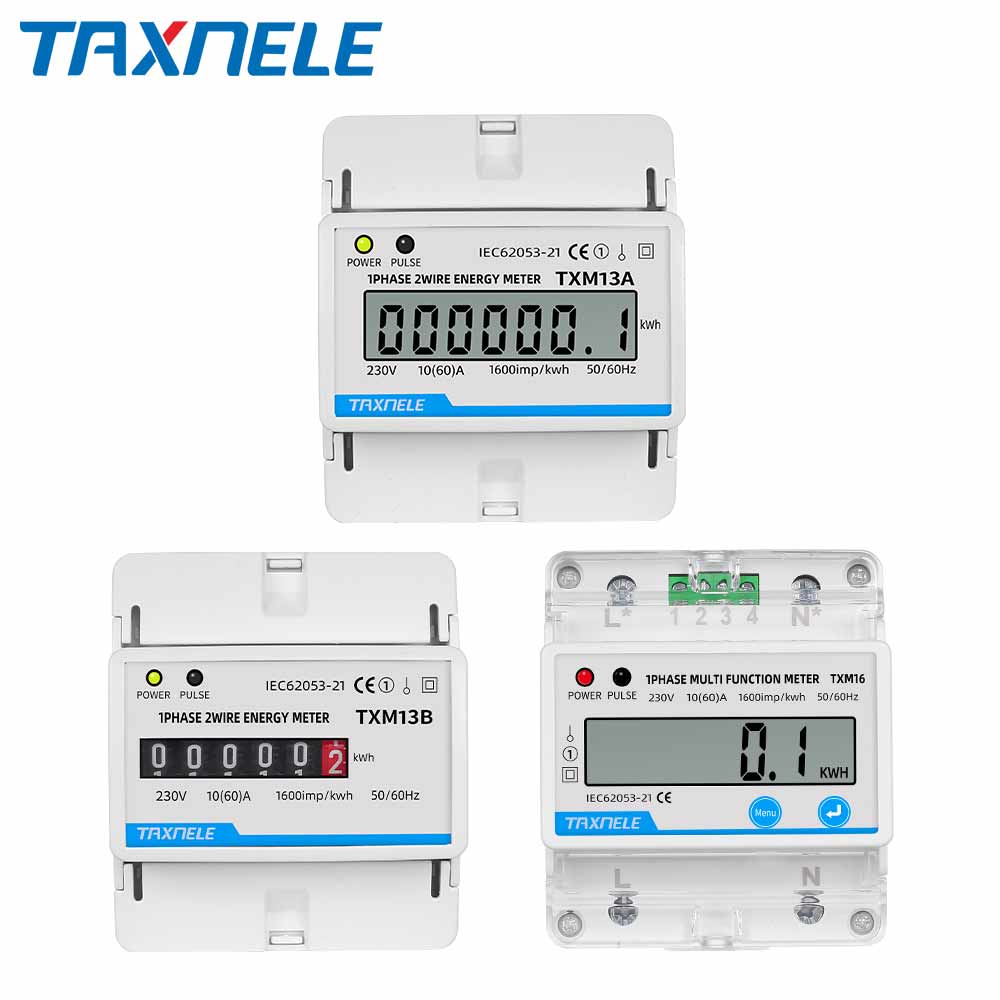

Din Rail Electricity Digital Power Energy Meter Single Phase 1P 2 Wire kWh AC 230V Voltmeter Ammeter LCD Analog Counter Display

Parameter
1Phase 2 Wire Energy Meter

Specifications:

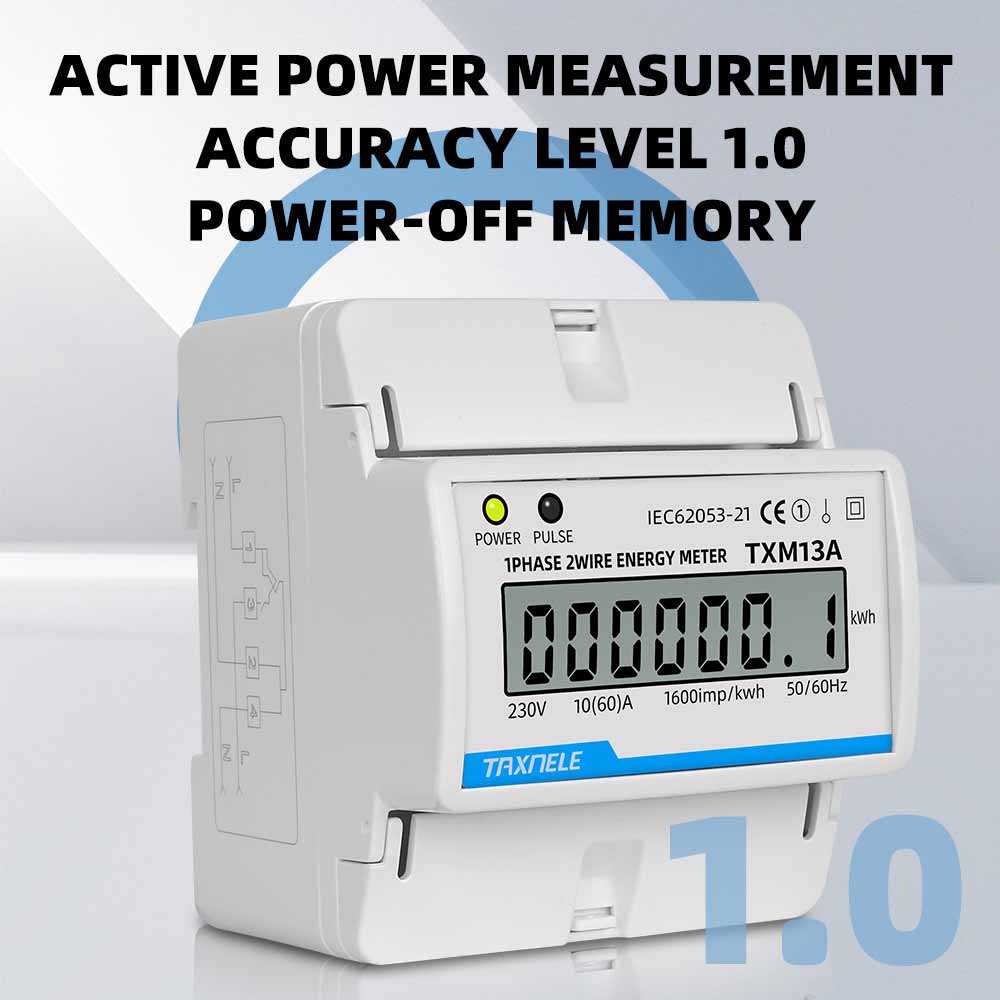

TXM13A LCD Digital Energy Meter(Only Energy Function)

Reference Voltage: 230VAC(170-250VAC)

Reference Current: 10(60A)

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

Constant Pulse: 1600imp / kWh

Display: LCD 6 + 1

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

TXM13B Analog Counter Energy Meter(Only Energy Function)

Reference Voltage: 230VAC(170-250VAC)

Reference Current: 10(60A)

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

Constant Pulse: 1600imp / kWh

Display: LCD 5 + 1

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

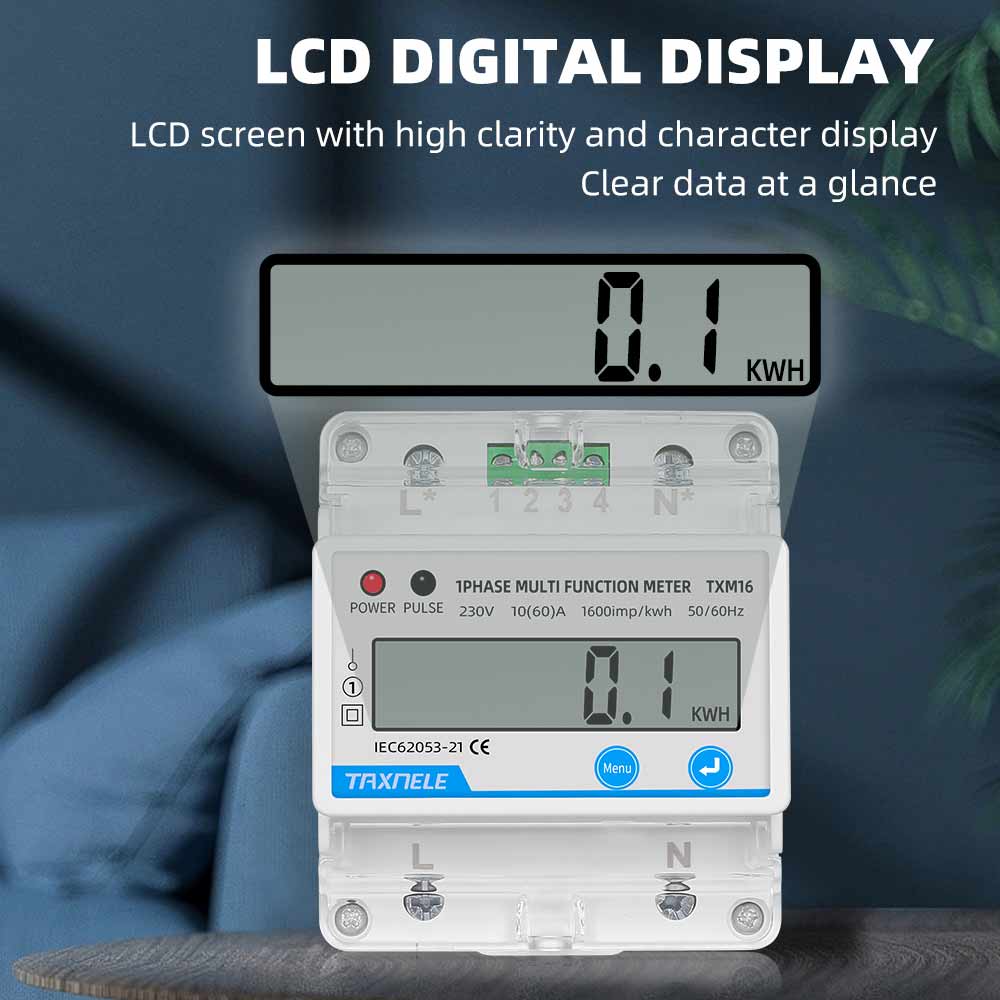

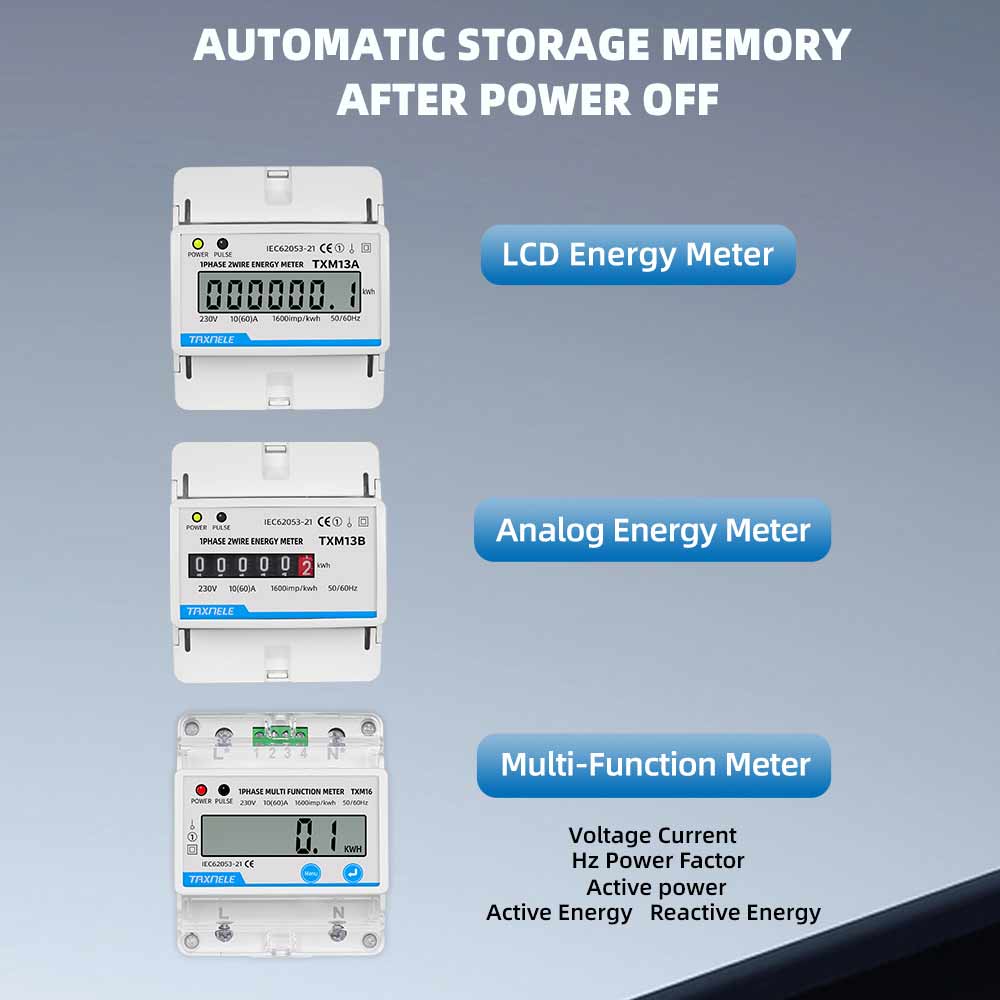

TXM16 LCD Multi-Function Meter

Total Energy KWh, Positive KWH, Negative KWH, Total Reactive Energy KWH.

Voltage, Current, Active Power, Power factor ,Frequency

Reference Voltage: 230VAC(170-250VAC)

Reference Current: 10(60A)

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

Constant Pulse: 400imp / kWh

Display: LCD 6 + 2

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°
