AC Meter

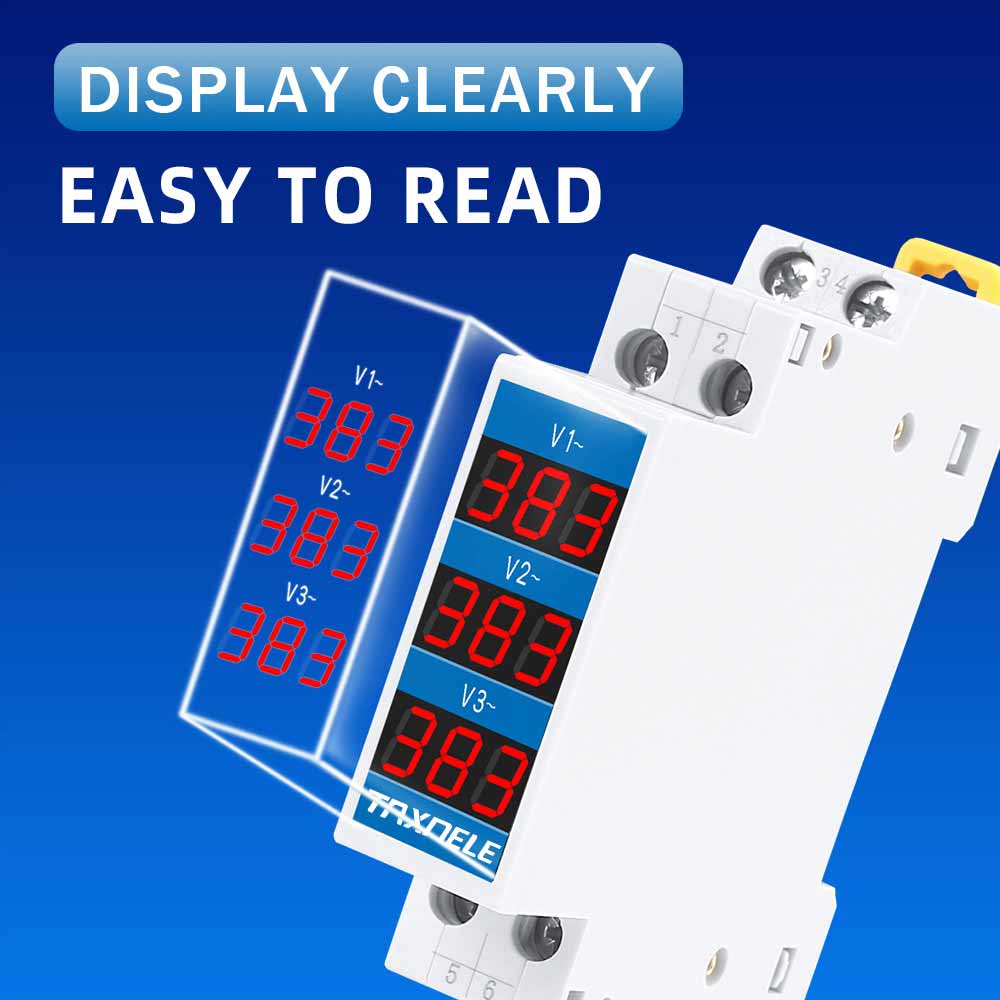

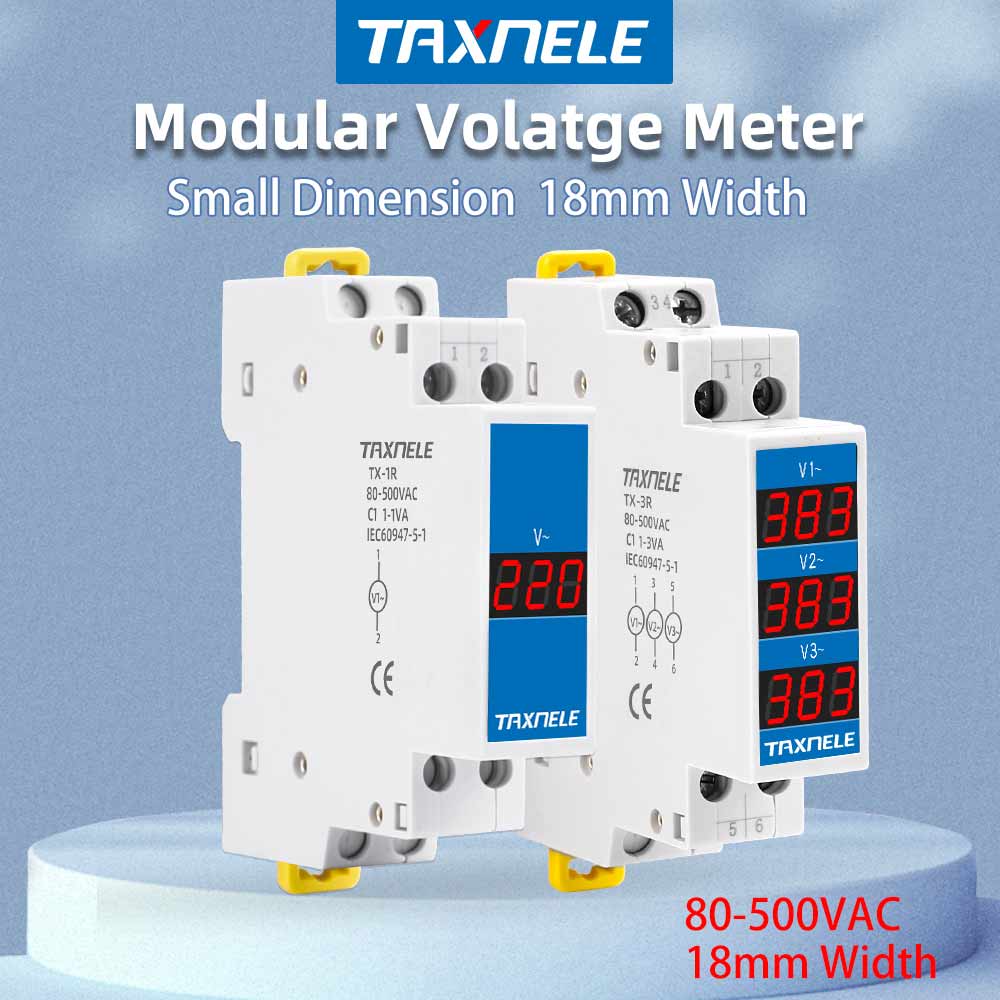

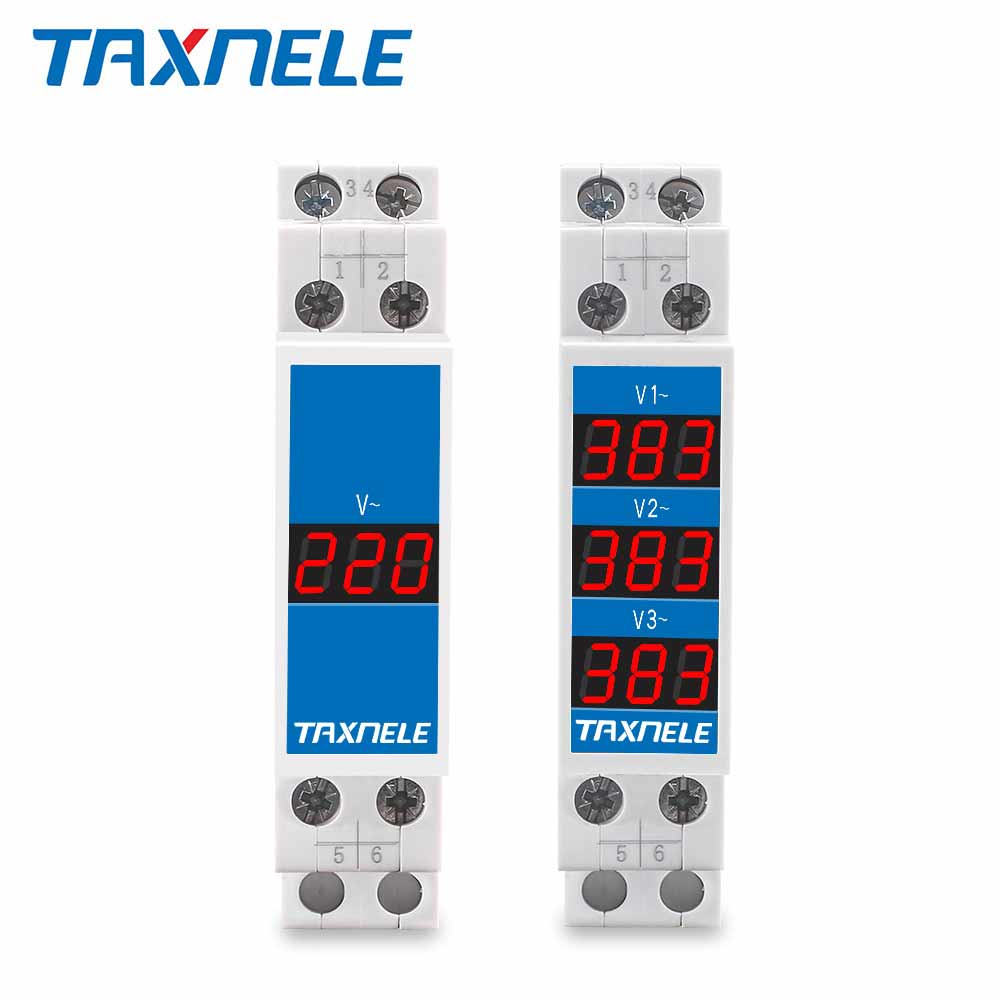

Din Rail 18mm Three Phase Voltage Meter Ac 80-500V 220V 380V Modular Voltmeter Gauge Indicator LED Digital Display Detector

Product description: Din Rail 18mm Three Phase Voltage Meter Ac 80-500V 220V 380V Modular Voltmeter Gauge Indicator LED Digital Display Detector
INQUIRY

Parameter

Type:Three Phase Voltage Meter
Terminal for wiring: 3L+3N

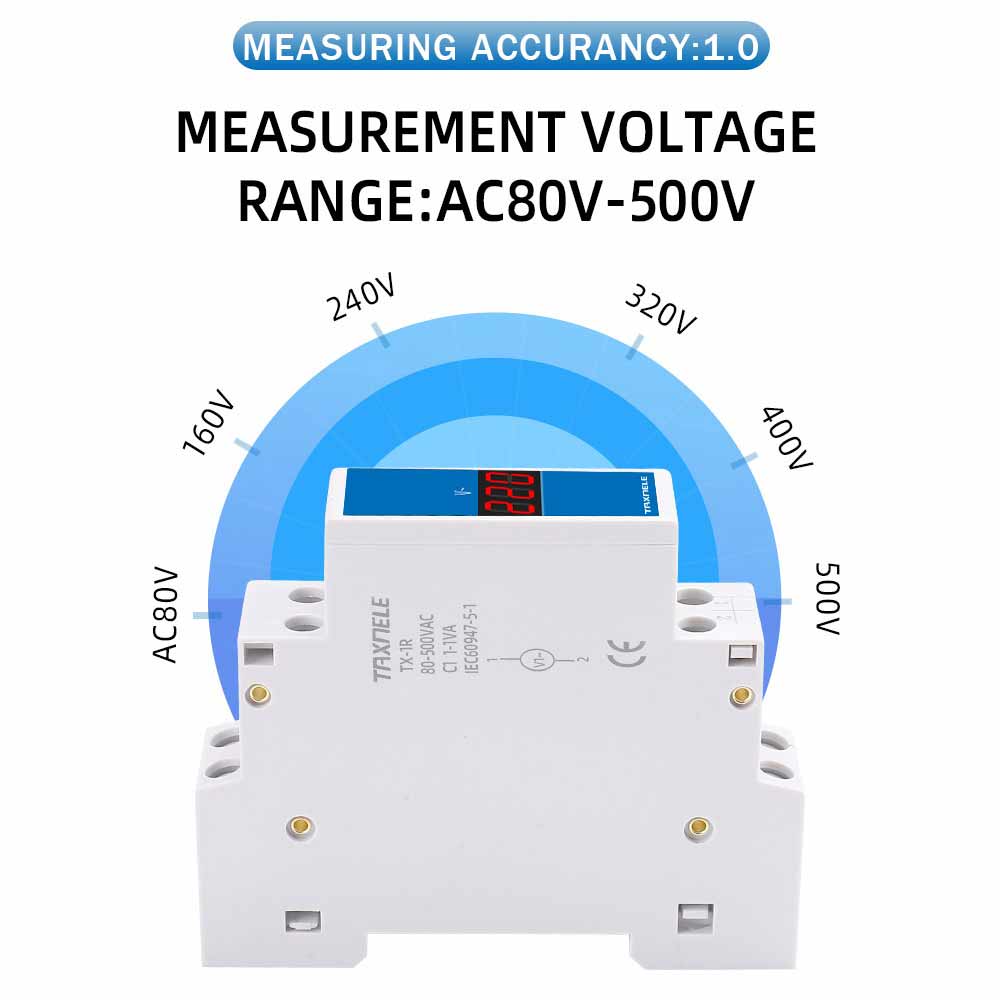

Measurement voltage range:AC 80V~500V
Measuring accuracy:1%
Measuring rate:>200MS/time
Protection degree:IP 20
Electrical Life:≥15000 hours

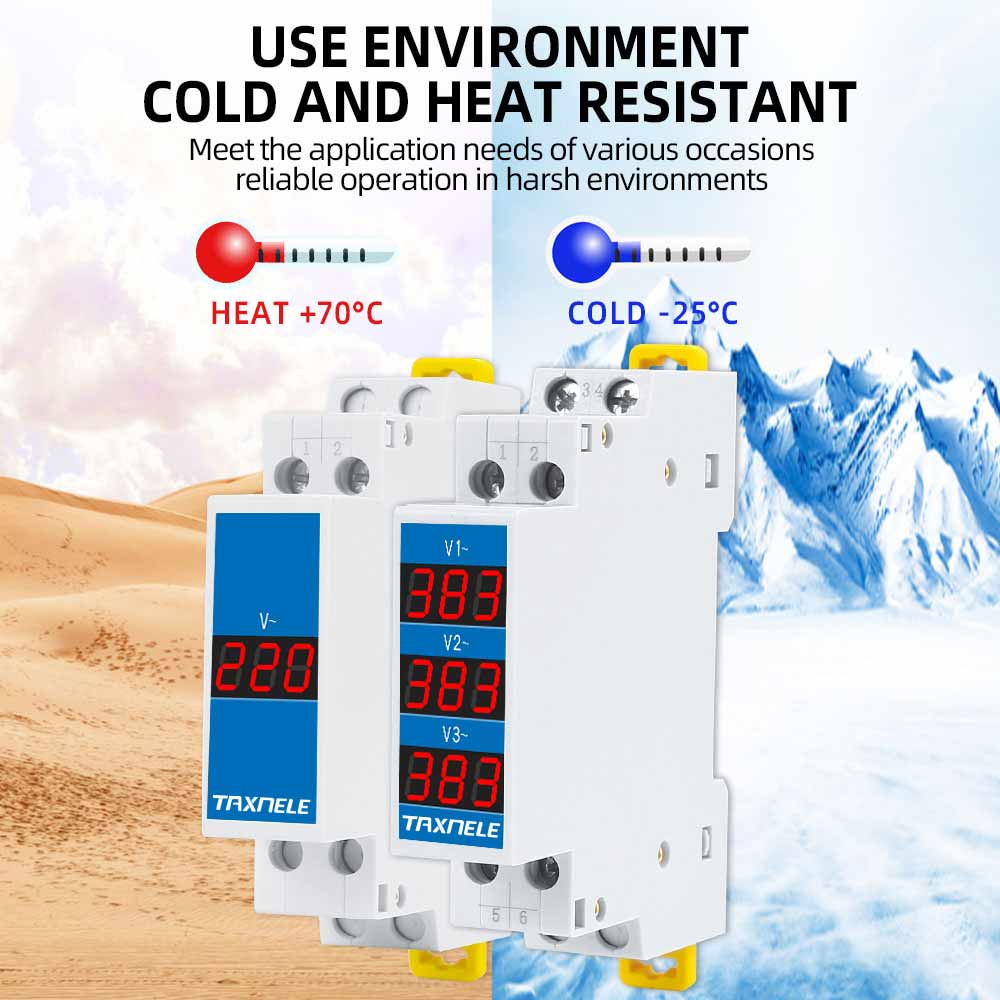

Working Conditions:temperature(with daily average ≤35℃ ) -5℃～+40℃
Storage temperature:-25℃～+70℃
Air relative humidity:1-80% (no condensation)
Working pressure:80～160Kpa
Weight:75g

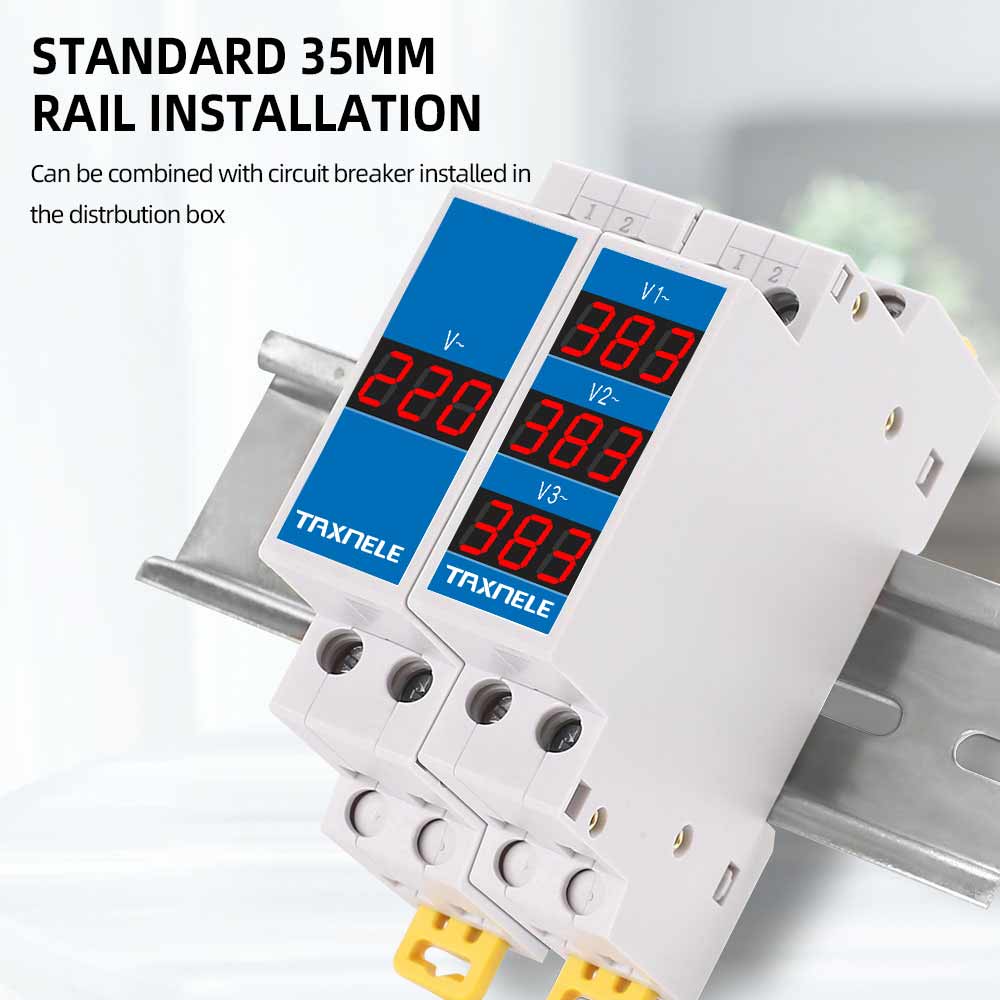

Mounting:DIN rail (18mm)
