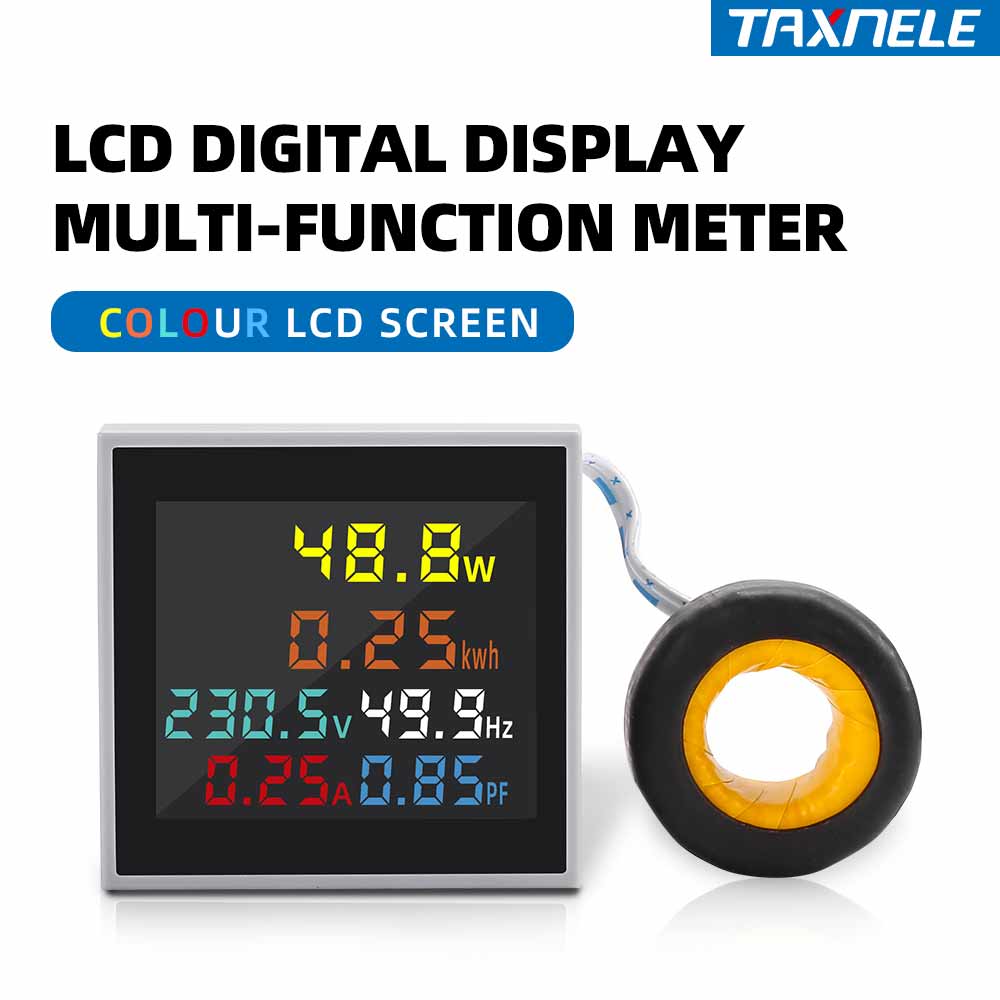

6IN1 Digital Display Voltmeter Ammeter Current Voltage Frequency Energy Meter AC monitor 100A KWH Signal Light lndicator 22MM

Parameter

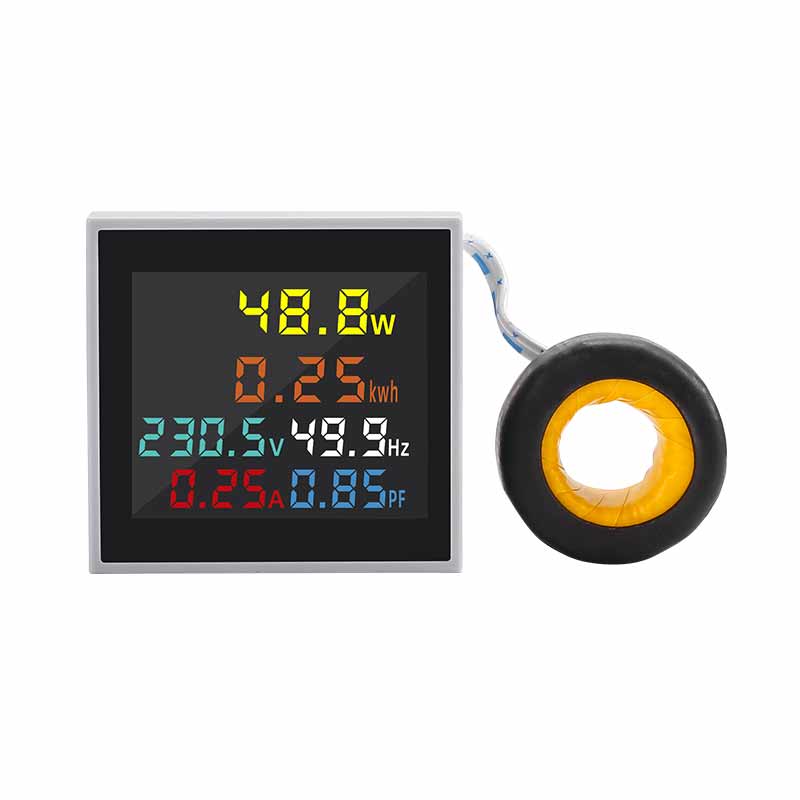

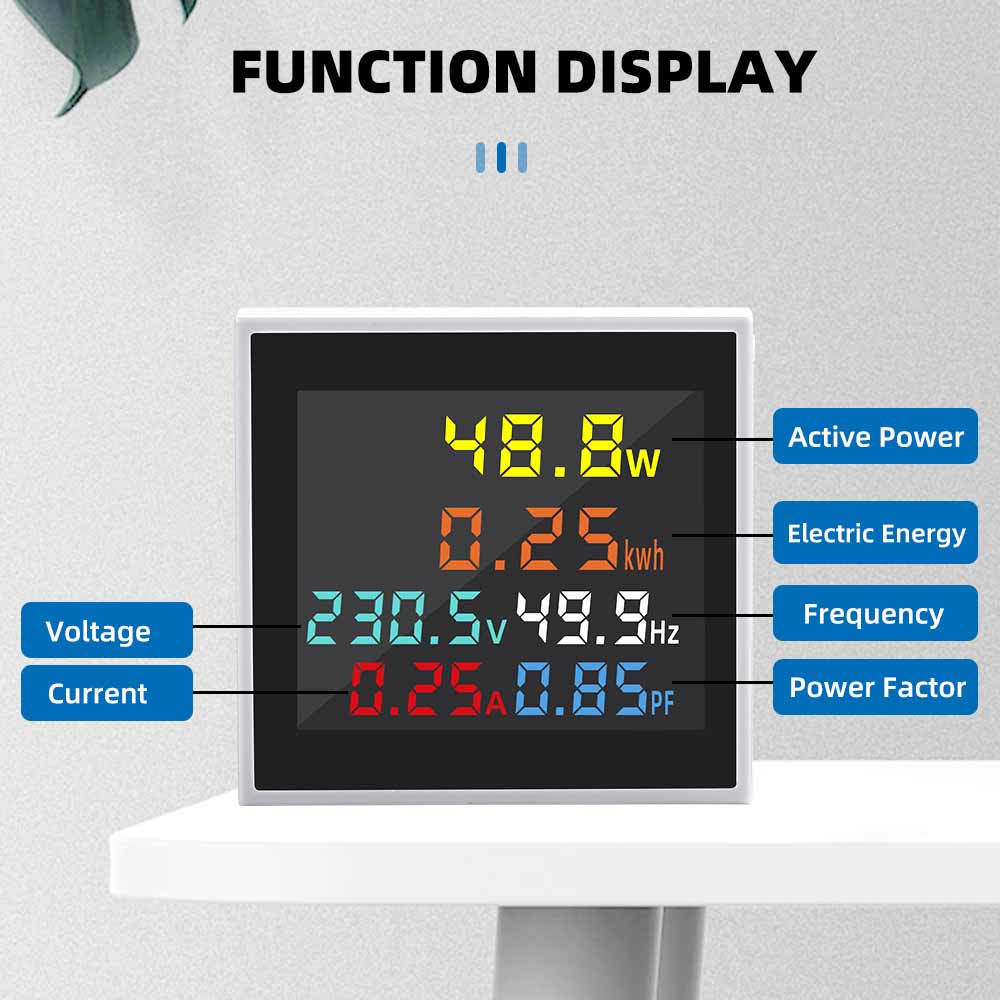

The digital multifunction meter can simultaneously measure and display 6 parameters such as AC voltage, AC Current, Active Power, Power Factor, Frequency and Electric Energy. The display part of the instrument adopts a color high-definition liquid crystal display


Technical Indicators:

1.Accuracy: 1%+2 words
2. Range:
AC voltage : AC 50. 0-300.0V or AC 250.0-450.0V
AC current: AC 0.0-99.99A (the accuracy is 0.01A when measure signal lower than 100A, when measure
signal higher than 100A, the meter will show 100.0A)
Power frequency: 45.00-65.00Hz
Power Lactor: 0.00- 1.00PF
Active power: 0-30000W or 0-45000W
( The display accuracy is 0. 1W when the active power between 0 and 9999.9W,
otherwise the accuracy is 1W)
Electric energy: 0-99999kwh (The display accuracy is 0.01kwh when the electric energy between
0-999.99kwh, 0. 1kwh when the electric energy between 1000.0-9999.9kwh, 0.01kwh
when the electric energy between 100000-99999kwh
3. Speed: 2 times per second

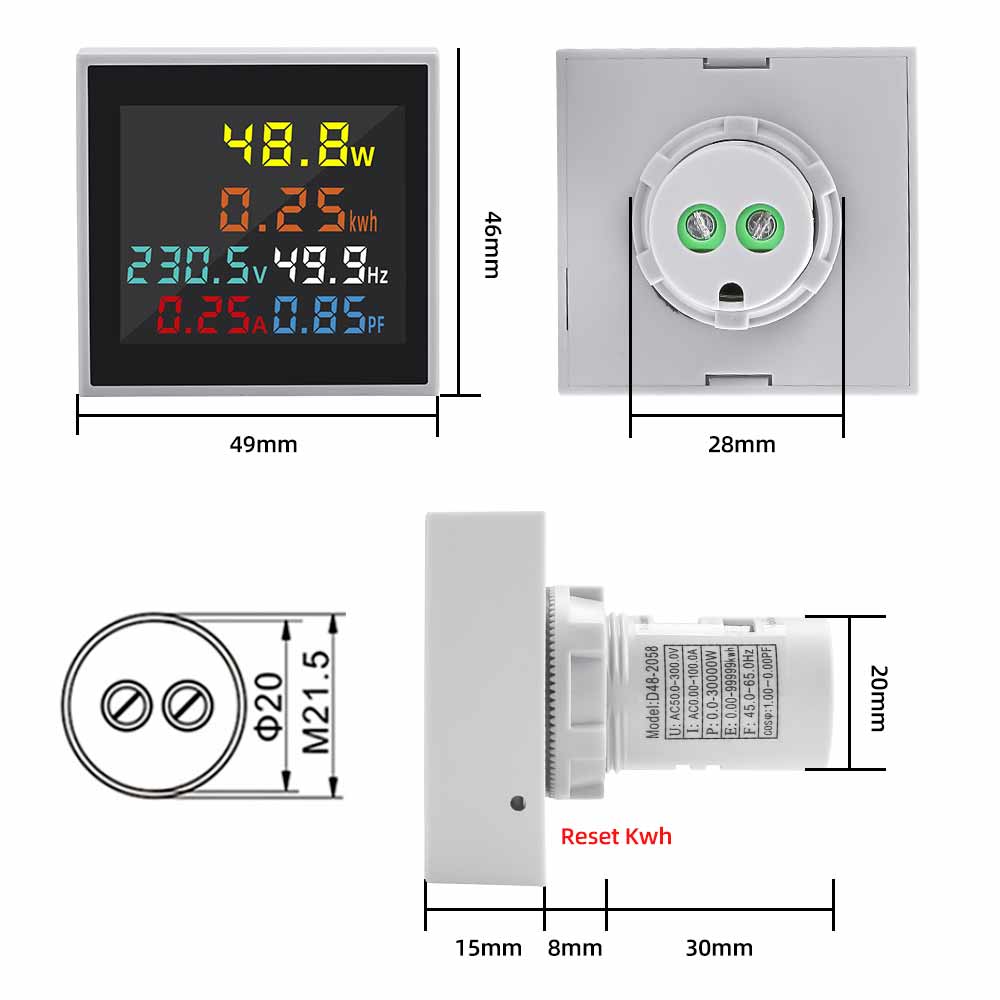

4. Size: 49*47*53mm
5. Hole: diameter Φ 22mm
6. Autosave: When the meter power is off, the current eletric energy value will be automatically saved . the meter
will read the value after the next power on and going to keep adding to the saved value. number.


Application Method:

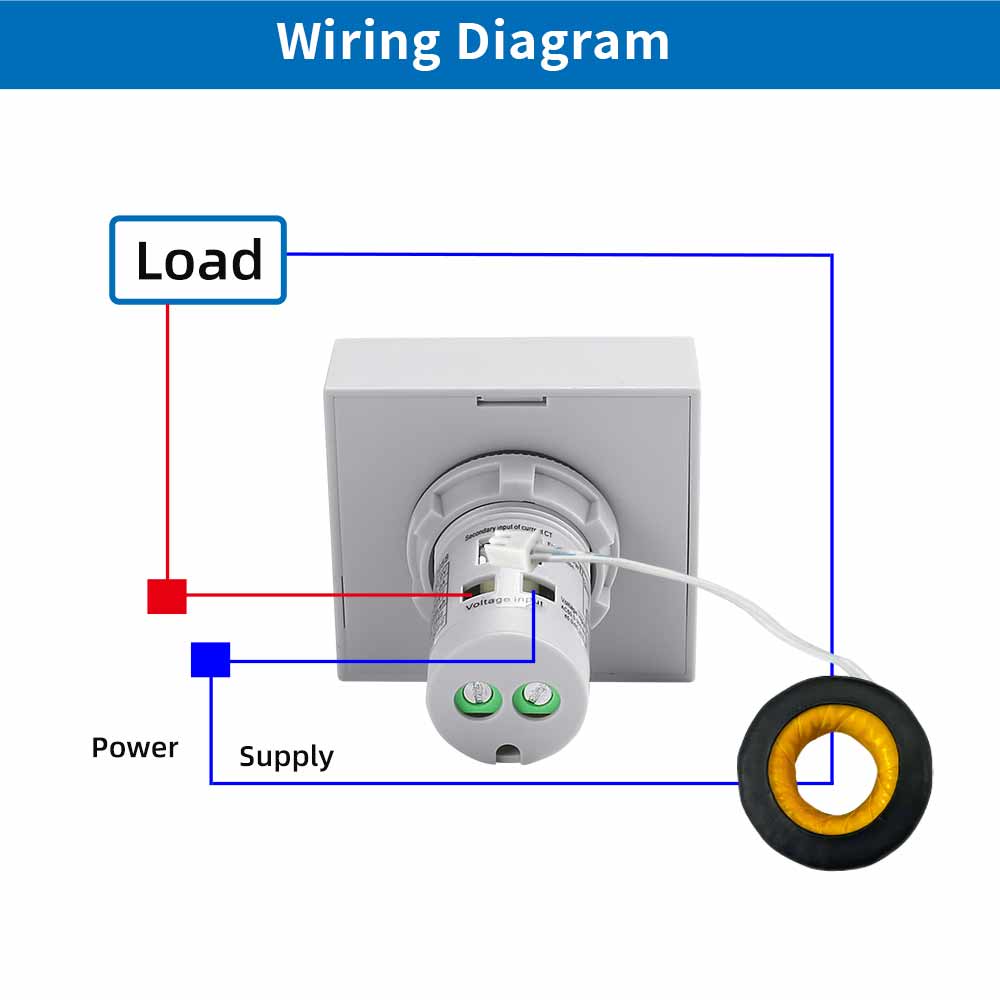

1. According to the wiring diagram, connect the plug two-wire of the current transformer to transformer the input on
meter, make the current return conductor across the hold which in the middle of the current transformer.
2. Connect the voltage measurement to the voltage input terminal of the meter. Then turn on and measure the voltage
to start to read the measure result.

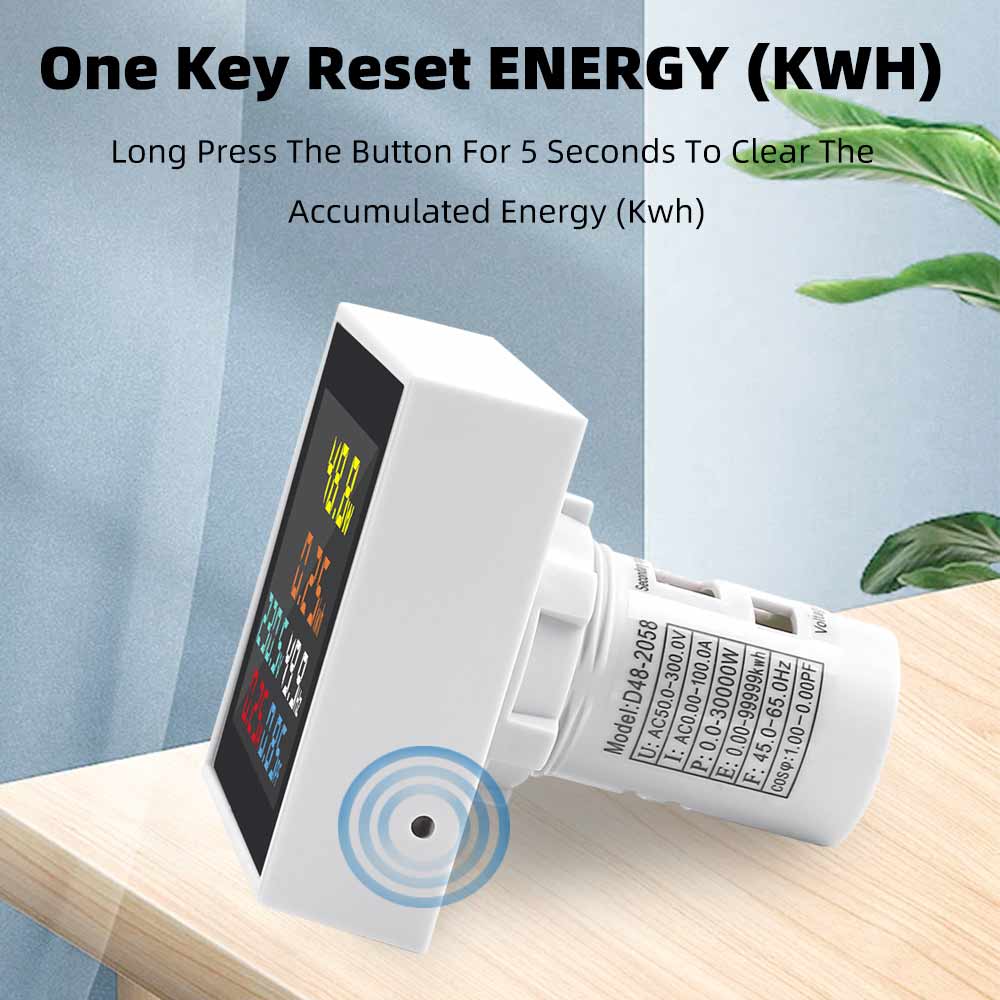

3. The electric enengy reset button is on the right-bottom of the meter, you can press the button with a needle last for
5 seconds, then the electric energy will be reset.
