WIFI Circuit Breaker Energy Meter

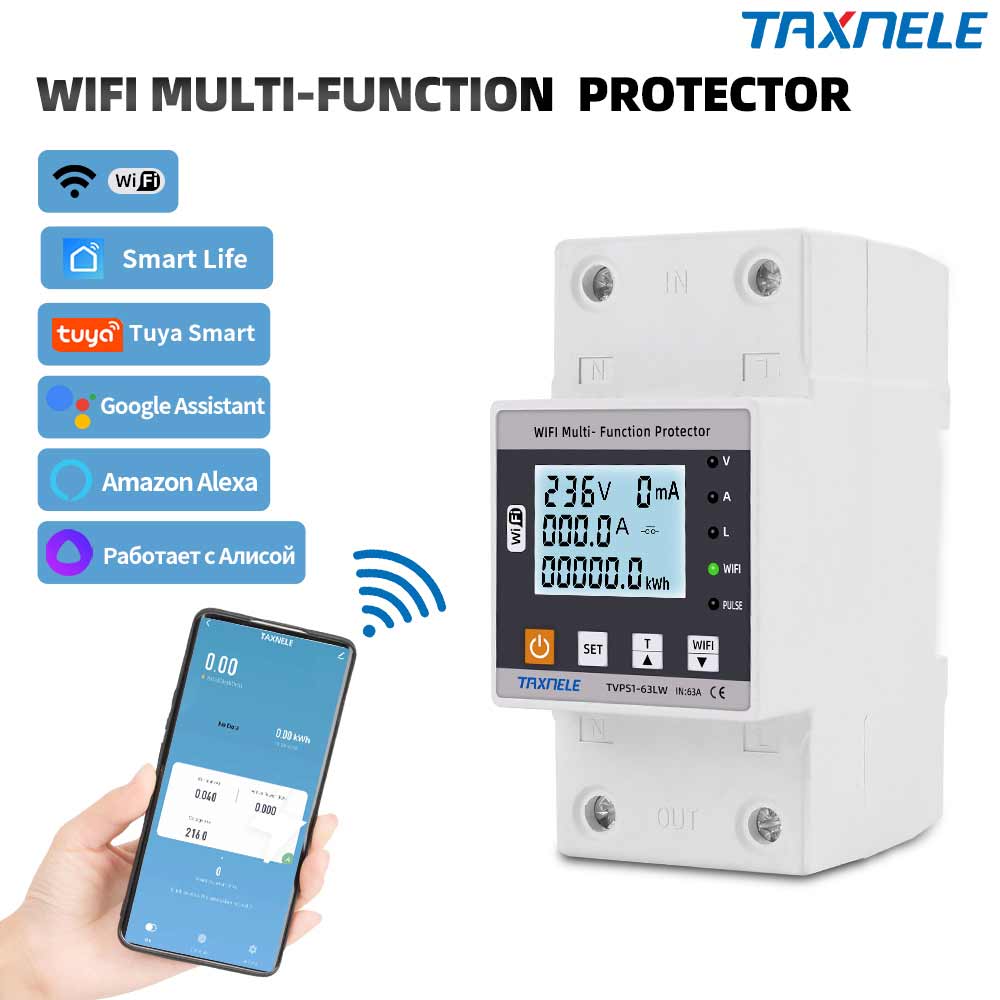

WIFI Smart Switch TUYA Energy Meter Kwh Metering 63A Circuit Breaker Timer with voltage current and leakage protection

  • Product description: WIFI Smart Switch TUYA Energy Meter Kwh Metering 63A Circuit Breaker Timer with voltage current and leakage protection
  • INQUIRY
Product specification

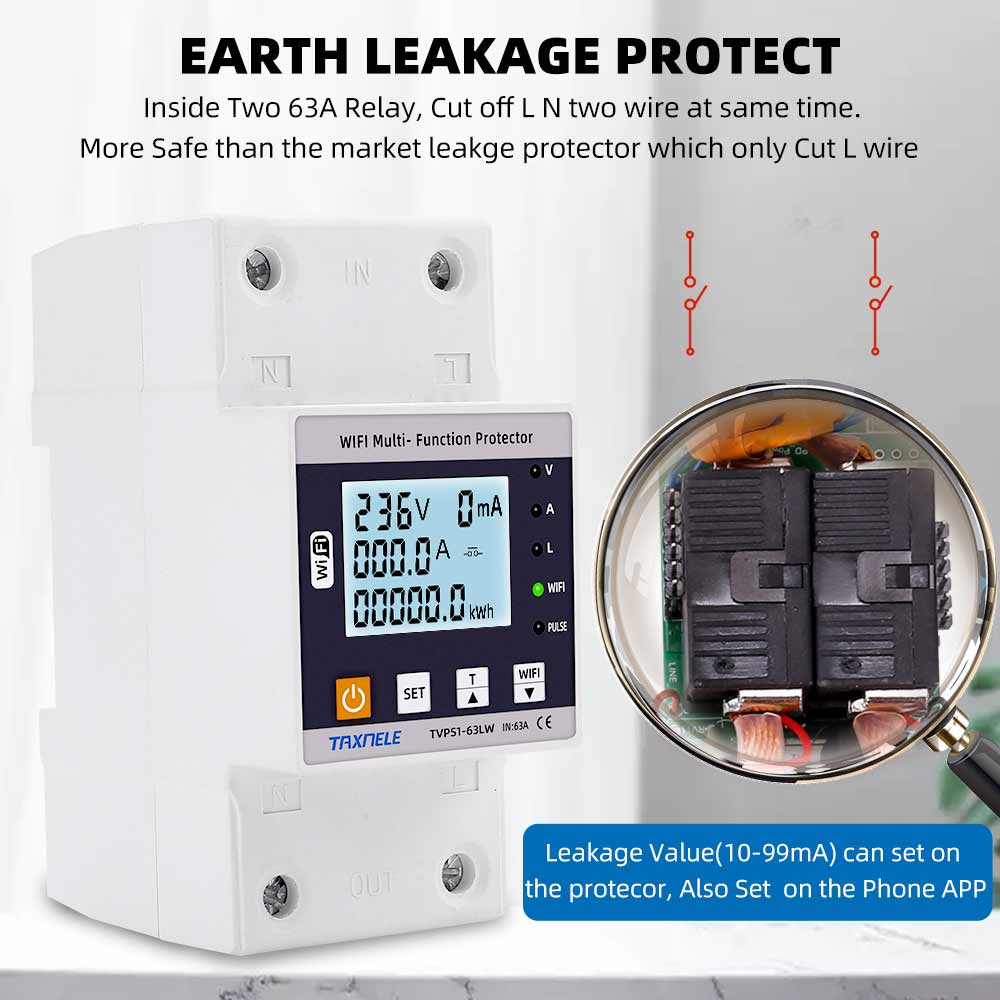

This Protector can cut off L and N at same time.
More Safe than the market leakage protector which only Cut L wire

TVPS1-63LW TVPS1-80LW WIFI Type

TVPS1-63L TVPS1-80L NO WIFI Type

Rated voltage: 230V; Frequency: 50Hz/60HZ
Function:

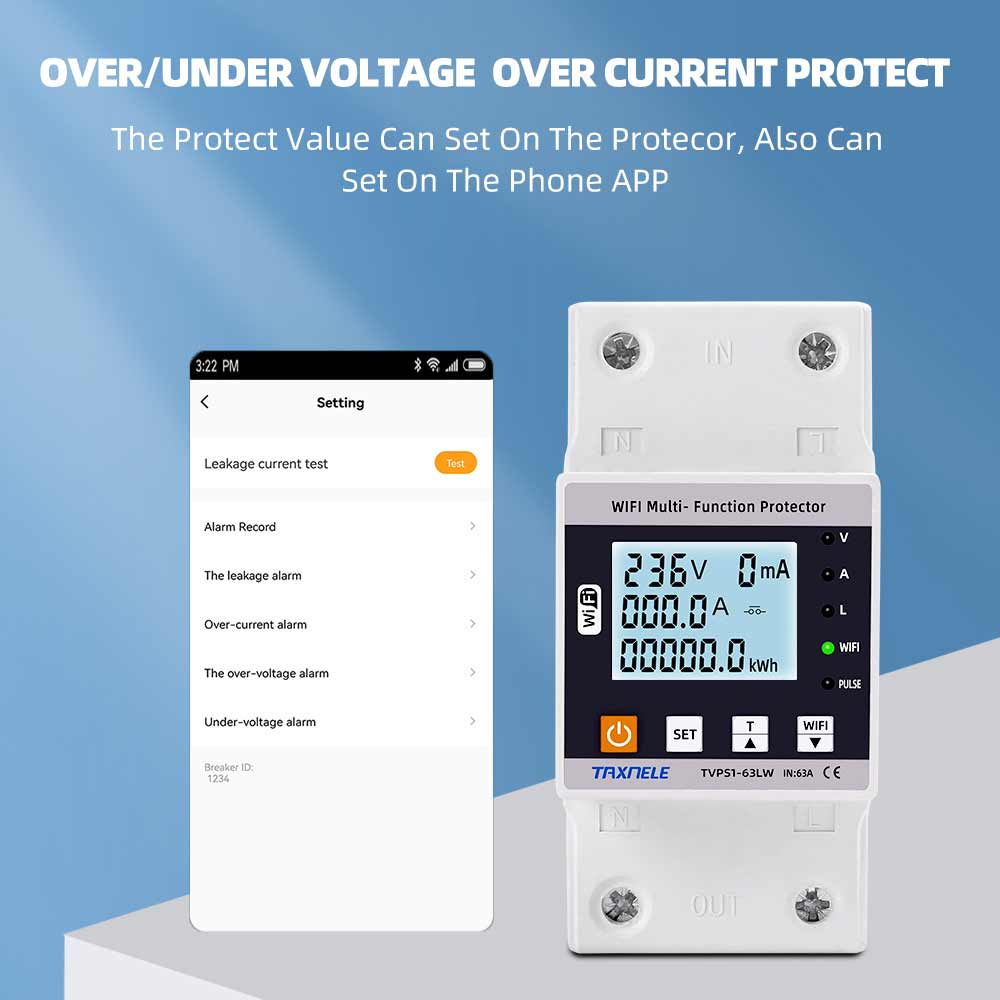

1. Under voltage protection 140V-210V (adjustable) (default: 170V)
2. Over voltage protection 230V-300V (adjustable) (default: 270)
3. Over current protection 1-63A/1-80A (adjustable)
4. Reconnect time (delay on time): 1s-500s (default: 30s)
5. Electric leakage protection:10-99mA

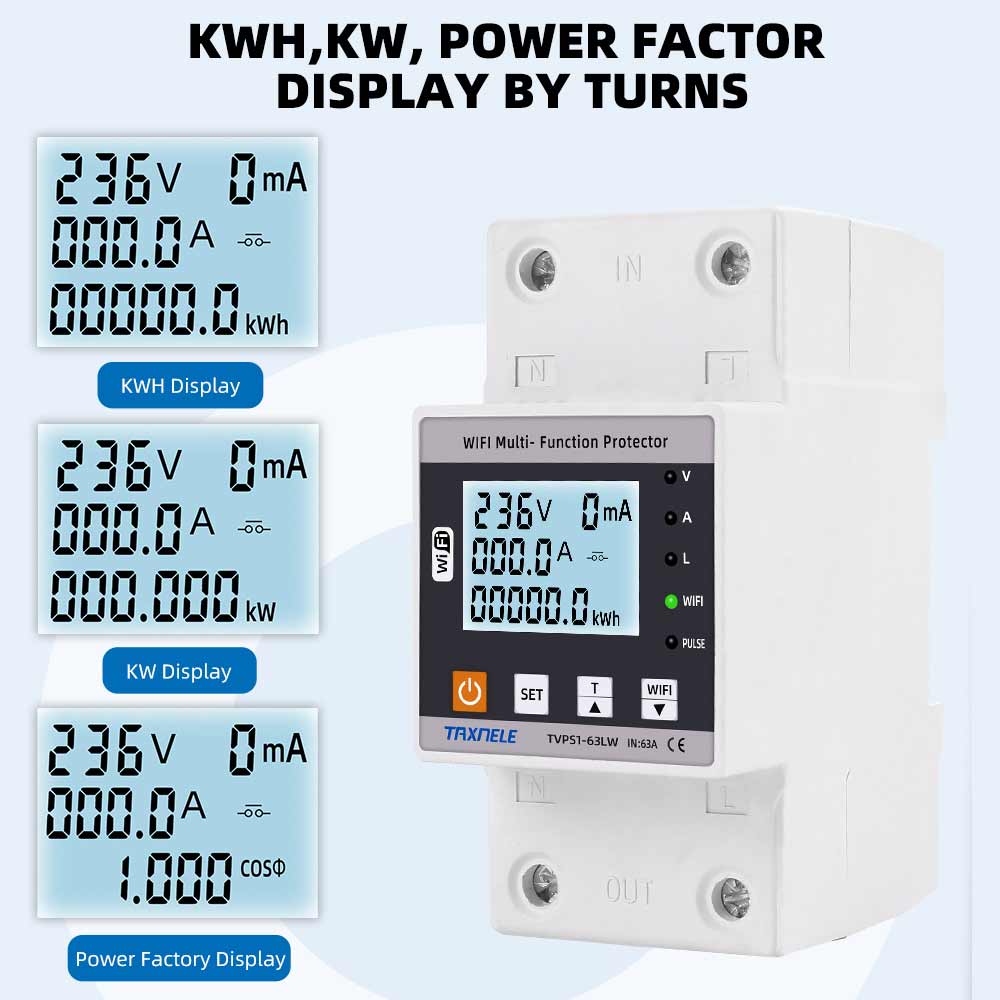

6. Power display range:0-99999.9kw/h
7.Voltage/current/kW calibration: -9.9%-9.9%
8. Voltage meter
9. Ammeter
10. Energy meter
11.Timer
