DC Solar Element

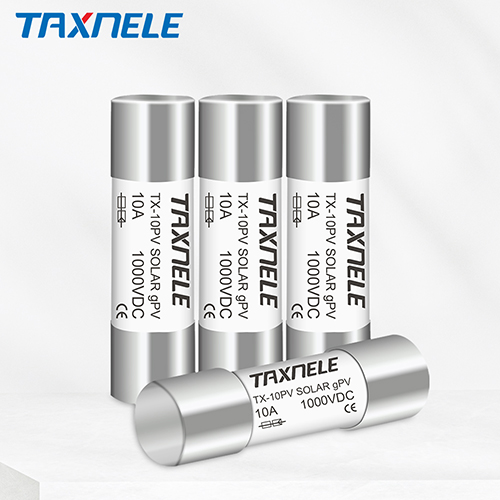

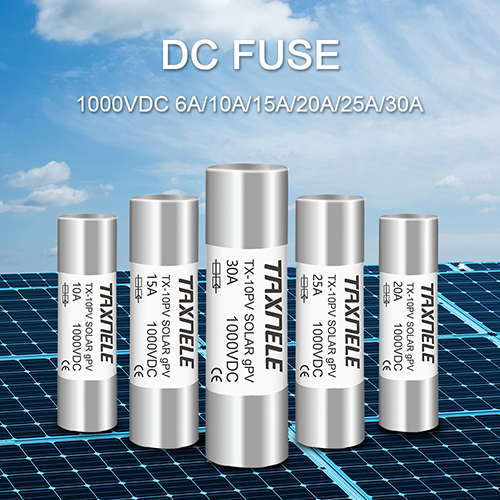

Solar DC Fuses 1000V PV Photovoltaic 6A 10A 15A 20A 25A 30A 10*38MM High Voltage for Solar System Short Circuit Protection gpV

Product description: Solar DC Fuses 1000V PV Photovoltaic 6A 10A 15A 20A 25A 30A 10*38MM High Voltage for Solar System Short Circuit Protection gpV
INQUIRY

Applications

DC Load Short Circuit Protect. Over Load Protect
Solar Panels, Solar Photovoltaic, Photovoltaic Strings.

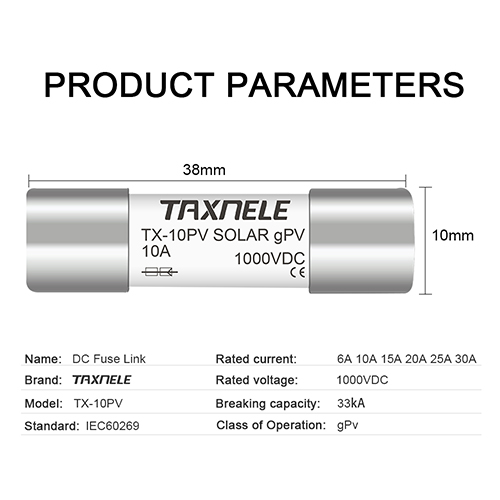

Electrical Characteristics

Rated voltage :1000VDC

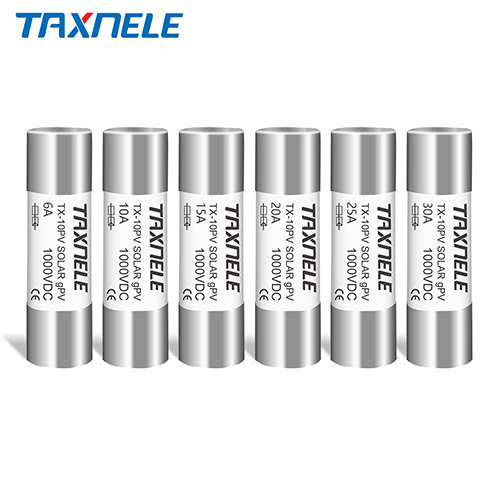

Rated Current :6A 10A 15A 20A 25A 30A
Breaking Capacity :33kA
Dimension:10*38mm
Standard: IEC60269

Please Noted This is Only Fuse. No Include Fuse Holder
