RCBO Circuit Breaker

18MM Mini 230V 50/60Hz RCBO 1P+N 6KA Residual Current Differential Automatic Circuit Breaker Over Current Leakage Protection

Product description: 18MM Mini 230V 50/60Hz RCBO 1P+N 6KA Residual Current Differential Automatic Circuit Breaker Over Current Leakage Protection
INQUIRY

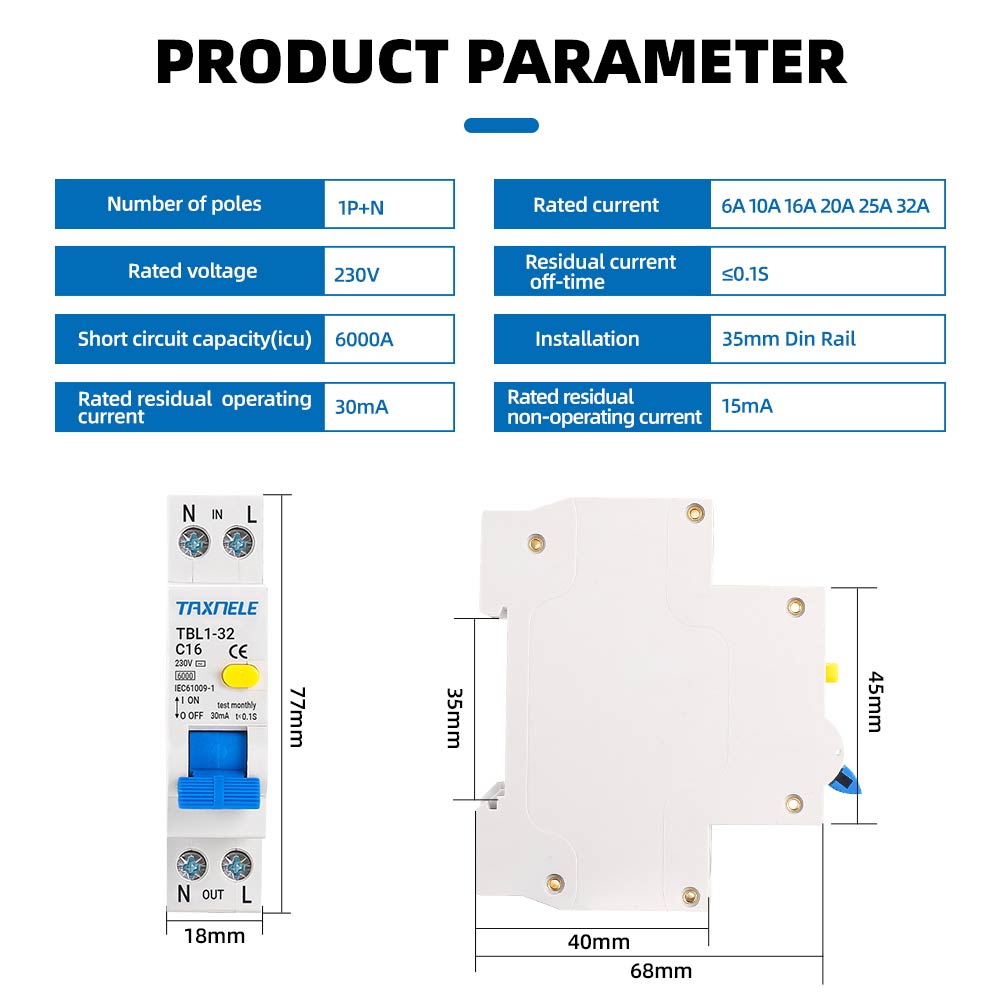

Parameter

Type：TBL1-32
Product Name：18mm RCBO
In（A）：6A 10A 20A 25A 32A
Poles：1P+N
Sensitivity：30mA
Breaking Capacity：6kA

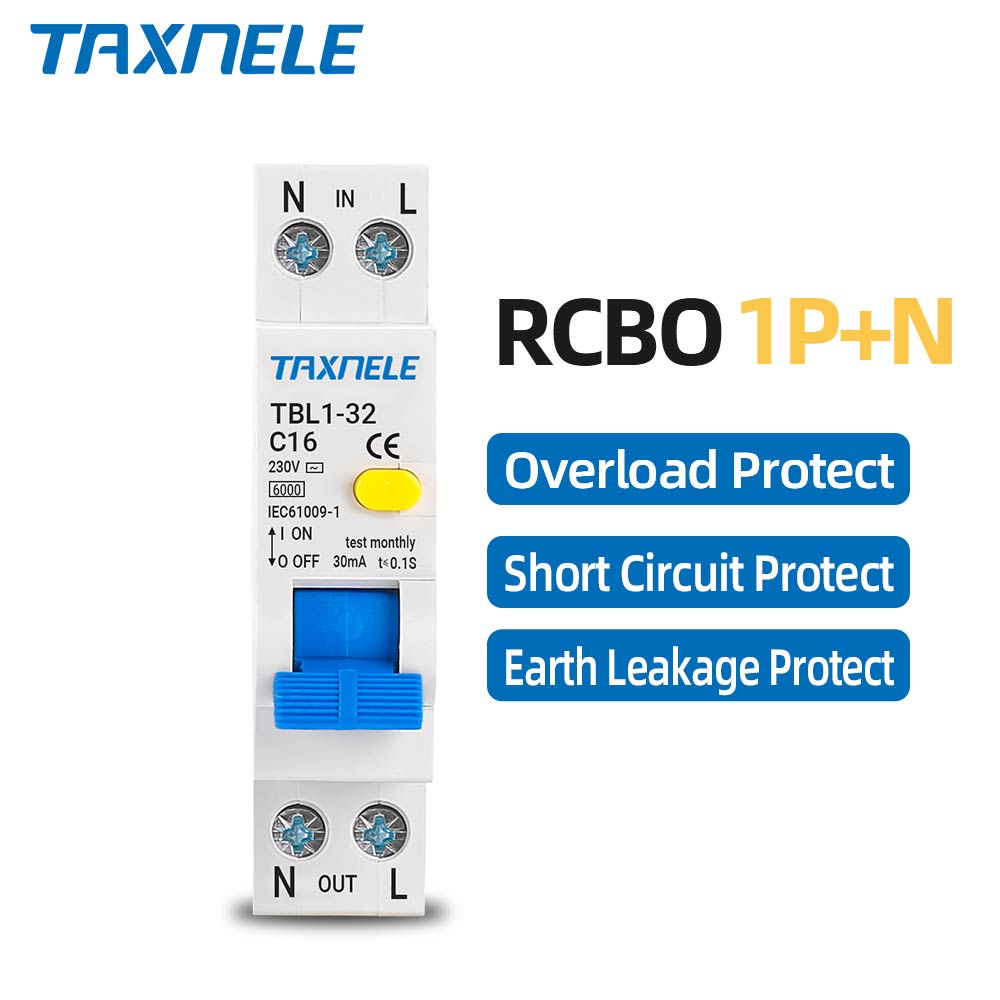

Protect: Residual Current Protect
Over Current Protect
Short Circuit Protect
Standard：IEC/EN 61009-1
Certificate：CE
