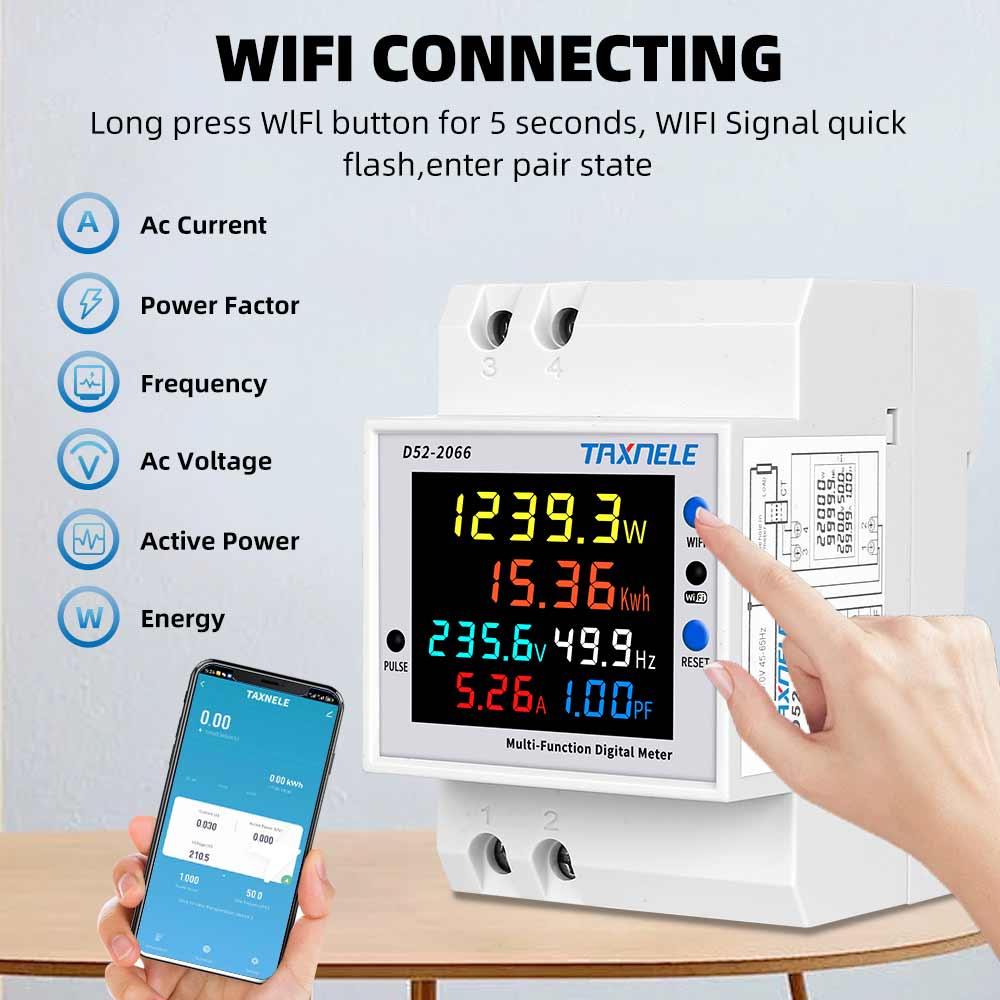

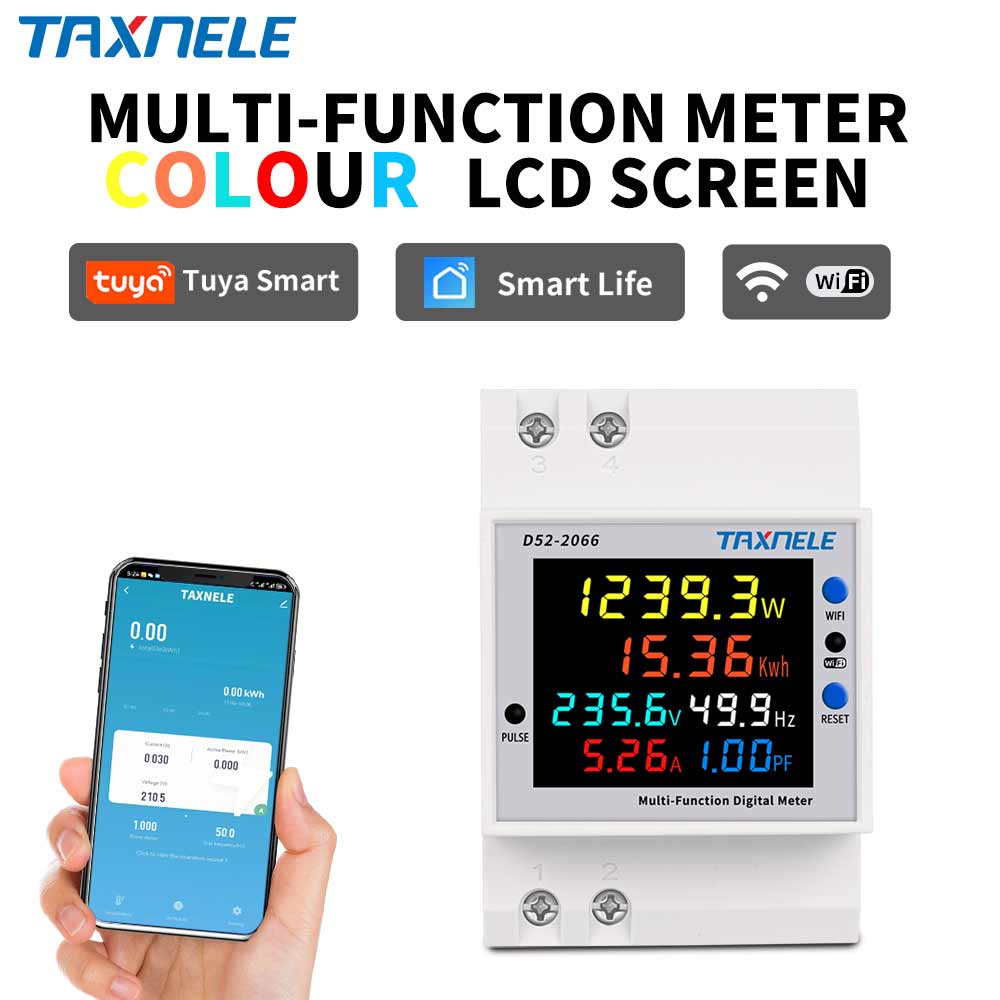

AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMPv

Parameter
Features: 100% Brand new and high quality!

D52-2066

Good stability, standard size, high precision, easy to install

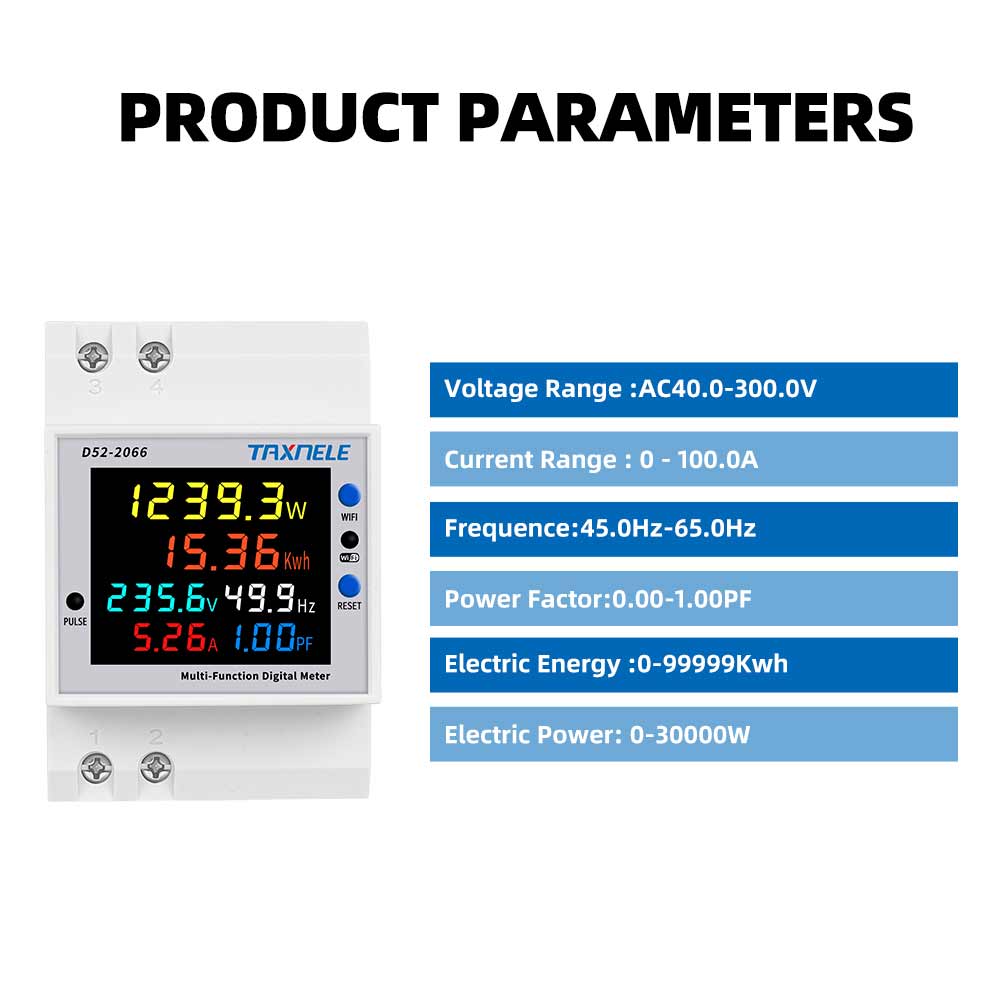

Specifications:

measurement accuracy:1％±2 words

AC voltage: AC 40.0-300.0V or AC 250.0-450.0V (You should select one type of the meter in your order)

The measuring range 40-300V without limitation, and it can be used in grid power, photovoltaic and inverter current

250-450V only can use for 380V

AC Current:AC 0-100.0A, the current resolution is 0.01A .

Frequence: 45.0Hz – 65.0Hz

Power Factor: 0.00-1.00PF

Electric Power: 0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W.

Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh

Measurement speed:about 2 times per second
