Mechanical Timer

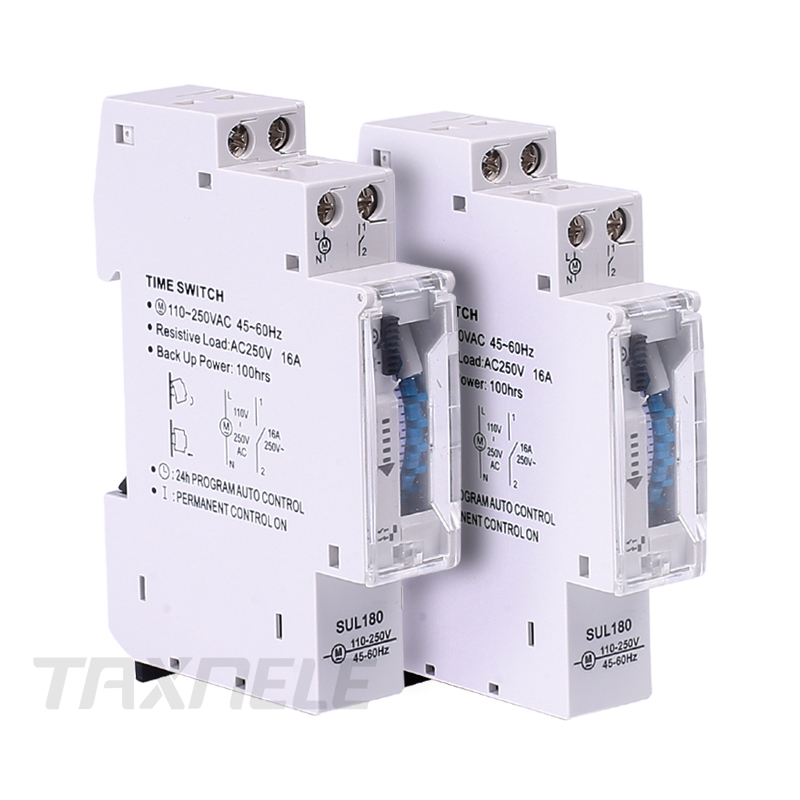

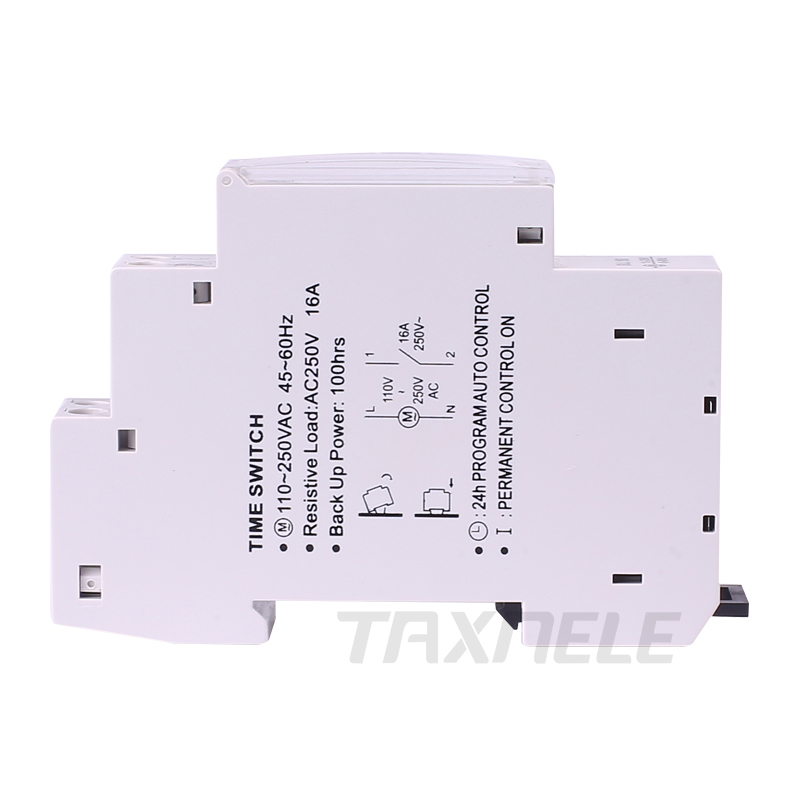

SUL180 Mechanical Time Switch

Time range: 24 hours
Contact capacity: 16A, 220V AC
Coil voltage: AC 110V-240V
Minimum setting unit: 15 minutes
Product description: The product is a 24-hour time switch, the minimum time set is 15 minutes;
INQUIRY

Working principle:
1. Set the time of the machine/product in advance, mechanically driven;
2. The battery inside the machine can work continuously for 80-100 hours under power failure;
3, the product is a 24-hour time switch, the minimum time set is 15 minutes;

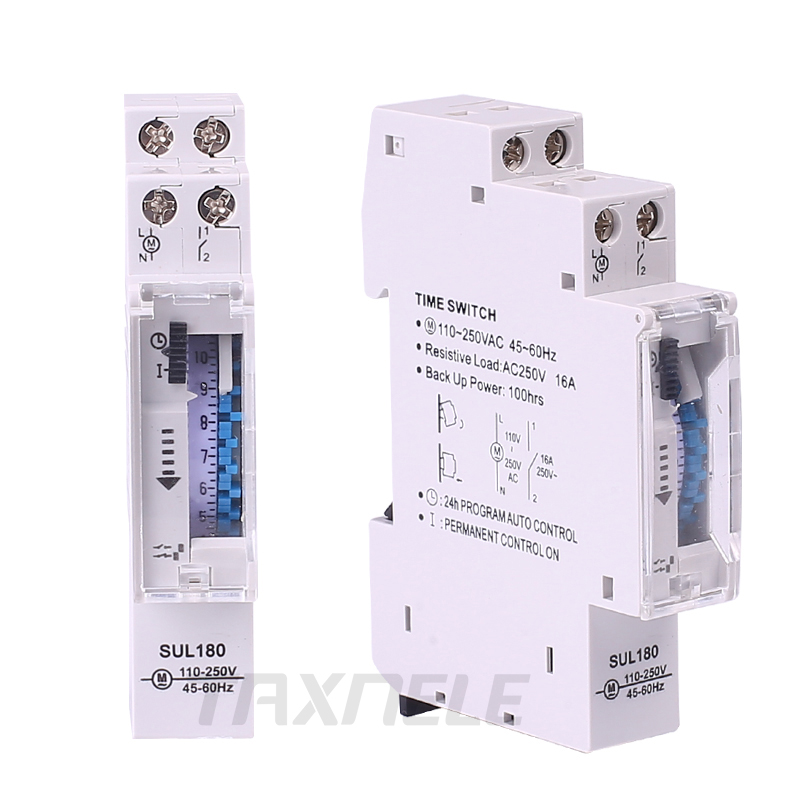

4. The clock icon on the machine faceplate indicates the start of the set time mode;
5. The I graphic on the machine panel indicates the lock setting.

Technical Data

1) Type: SUL180

2) Time range: 24 hours

3) Contact capacity: 16A, 220V AC

4) Coil voltage: AC 110V-240V

5) Electrical life: 100, 000 times

6) Mechanical life: 10, 000, 000 times

7) Working reserve time: 70 hours

8) Minimum setting unit: 15 minutes

9) Set-up times: 96 times

10) Operating temperature: -40 - +50° C

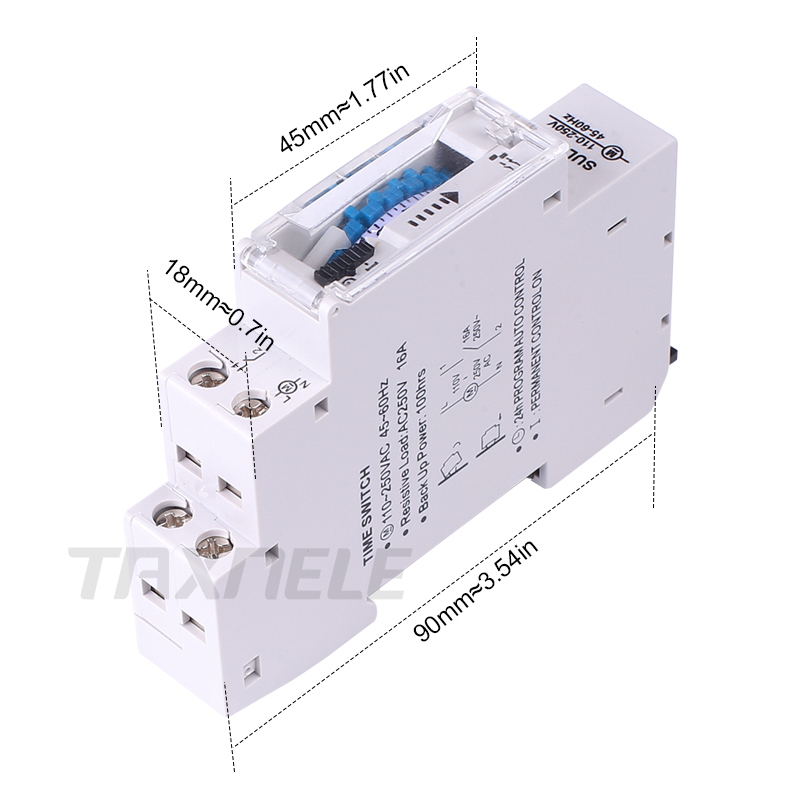

11) DIN rail mounting
