REX-C100 C400 C700 C900 controller

Parameter

Product Main Specifications:

Model number

External dimensions

Perforation dimensions

Output type

Input type

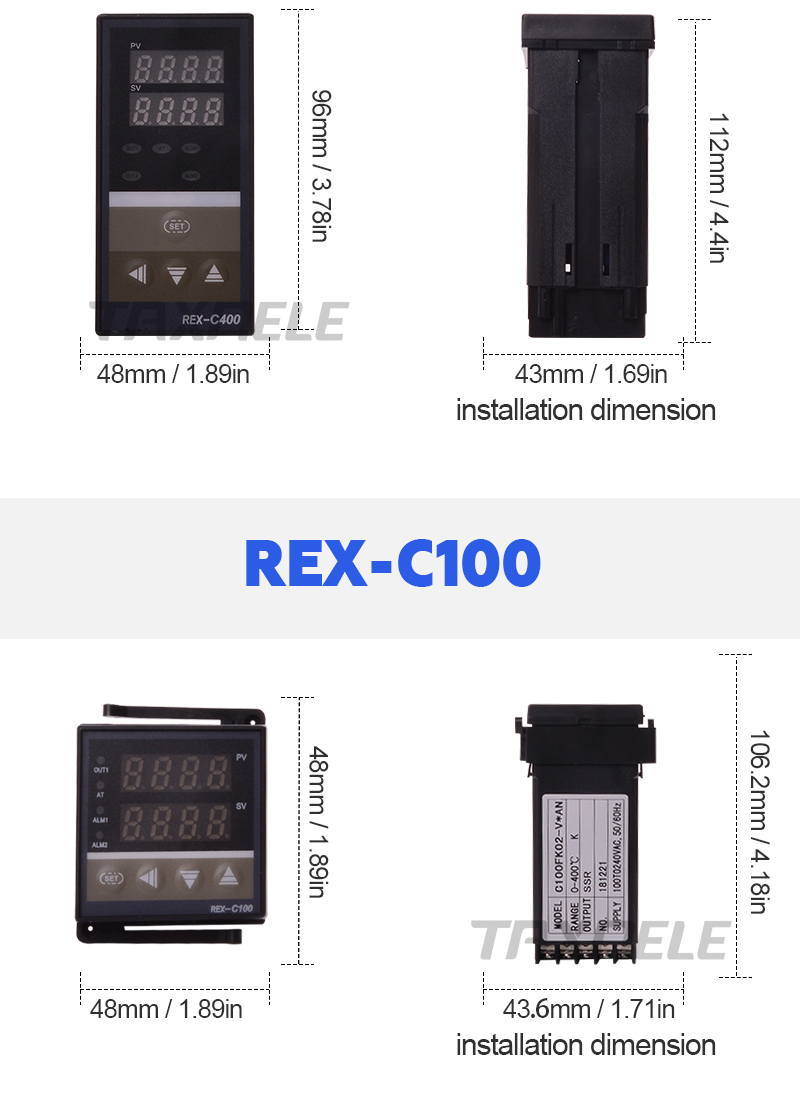

REX-C100

48x48

45 0.50x45 0.50 mm

Electromagnetic relay, SSR

Thermocouple and RTD

REX-C400

48x96

45 0.50x92 0.50 mm

Electromagnetic relay, SSR

Thermocouple and RTD

REX-C410

96*48

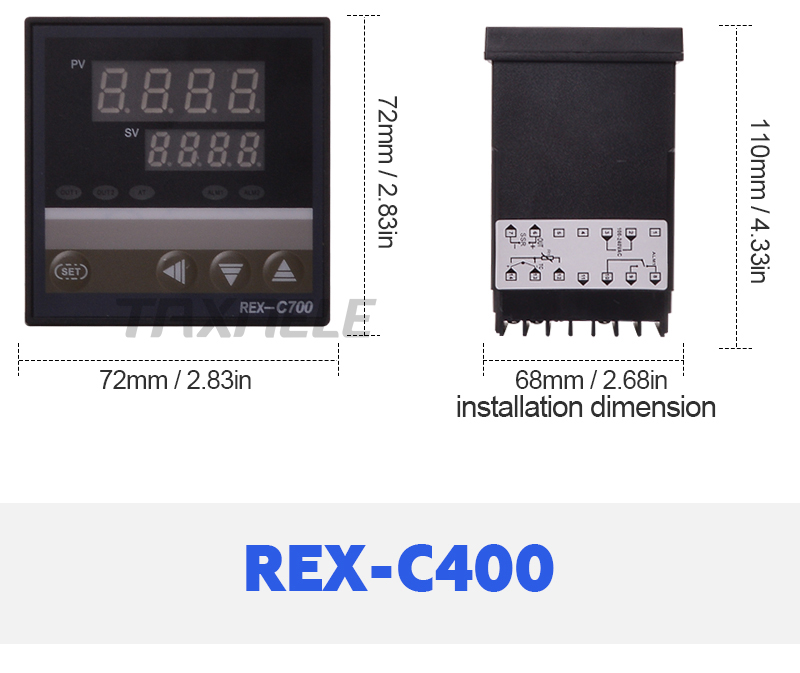

REX-C700

72x72

68 0.50x68 0.50 mm

Electromagnetic relay, SSR

Thermocouple and RTD

REX-C900

96x96

92 0.50x92 0.50 mm

Electromagnetic relay, SSR

Thermocouple and RTD

Model number	REX-C series
Accuracy	±0.5% of full scale
Supply voltage	100-240Vac, 50/60 Hz
Input types-Thermocouple	K, J, R, S, B, E, N, T
RTD	Pt100, Cu50
Voltage	0-5V, 1-5V
Current	0-20mA, 4-20mA
Output types	Electromagnetic relay, SSR, current, SCR
Power consumption	Less than 5 VA
Control method	PID Control (with auto-tuning) or Self-tuning, or ON/OFF
Setting method	Touch switch
Indication method	8-segment 4-digital display and LED indication
Alarms	Deviation High, Low, High/Low, Band,Process High, Low Set value High, Low
Sampling period	0.5s
Electromagnetic compatibility	IEC61000-4-4 (Electrical fast transient burst), 4KV/5KHz; IEC61000-4-5 (Surge), 4kv
Isolation voltage	>=2300v among the terminal of power, relay contact and signal; >=600v between two isolated weak signal terminal
Operating temperature	0 to 50 ℃ (32 to 122 ℉)
Operating humidity	30-85% RH max, non-condensing
Alias name	REX-C pid temperature controller, intelligent temperature controller
