Digital Timer

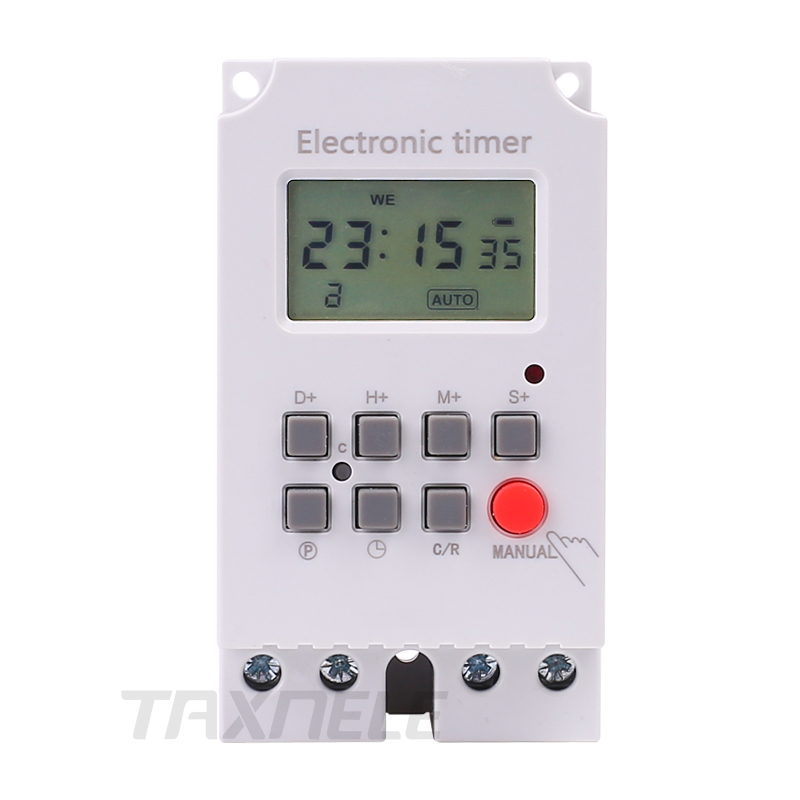

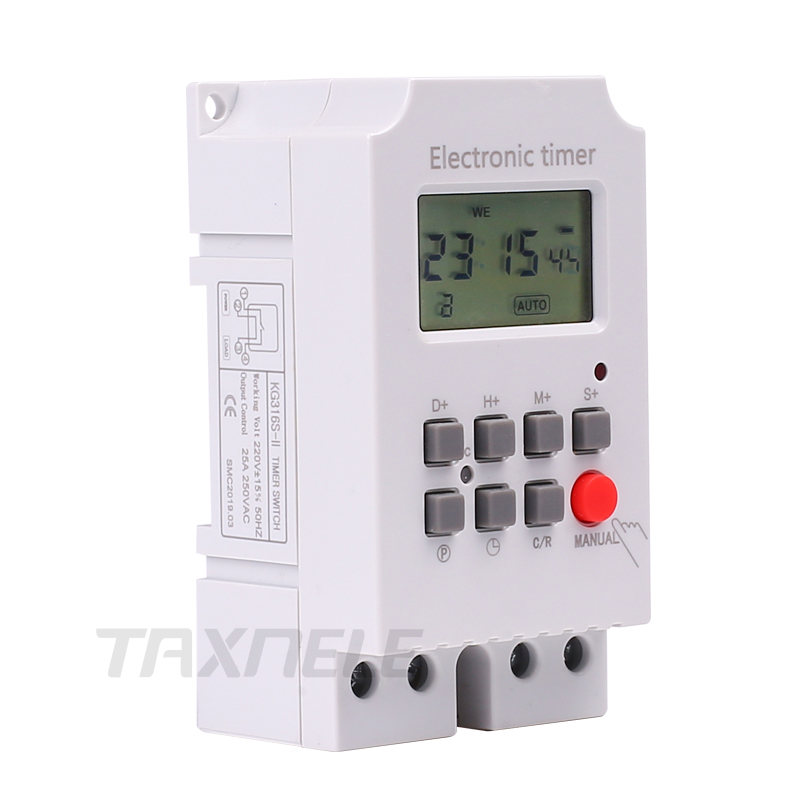

KG316S Timer Switch

Power Supply: 220-240VAC
Programs:16 on/off each day or week
Mini interval: 1sec
Timer range: 1sec~168hr
Product description: 24 hours / 7 days a week programmable; Repeat programs with 16 on/off settings, and setting on/off manually.
INQUIRY

Item Features:

Ideal for household use in pannel mounted

5000 Watt / 30 Amps, 1NO+1NC
24 hours / 7 days a week programmable

Built-in Battery for saving the memory when power failure
Auto time error correction +/- 30 sec, weekly
Repeat programs with 16 on/off settings, and setting on/off manually

Technical Data:

Model	kg316s
Temp.range: -20°C+50°C	Power Supply: 220-240VAC
Power consumption 4.5 VA (MAX)	Display: LCD
Switching contact: 1 changeover switch	Programs:16 on/off each day or week
Hysteresis 2 sec/day (25°C)	Mini interval: 1sec
Capacity: 30A 250V AC	Black-out: 60 days
Timer range: 1sec~168hr	Recharge battery: 3V
Average error: 1s/24h, 25°C	Weight: 0.15kg
