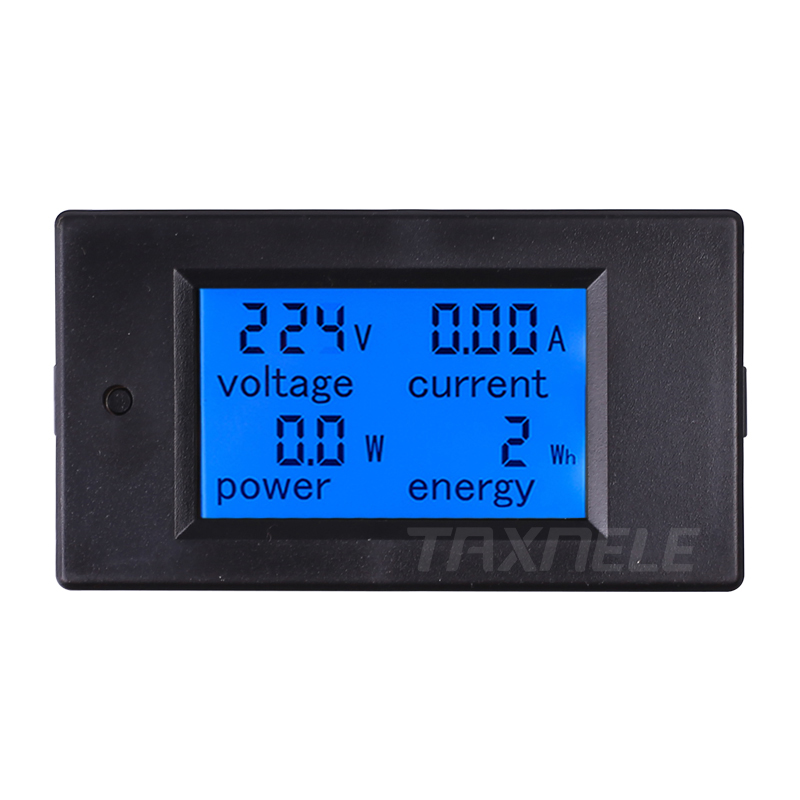

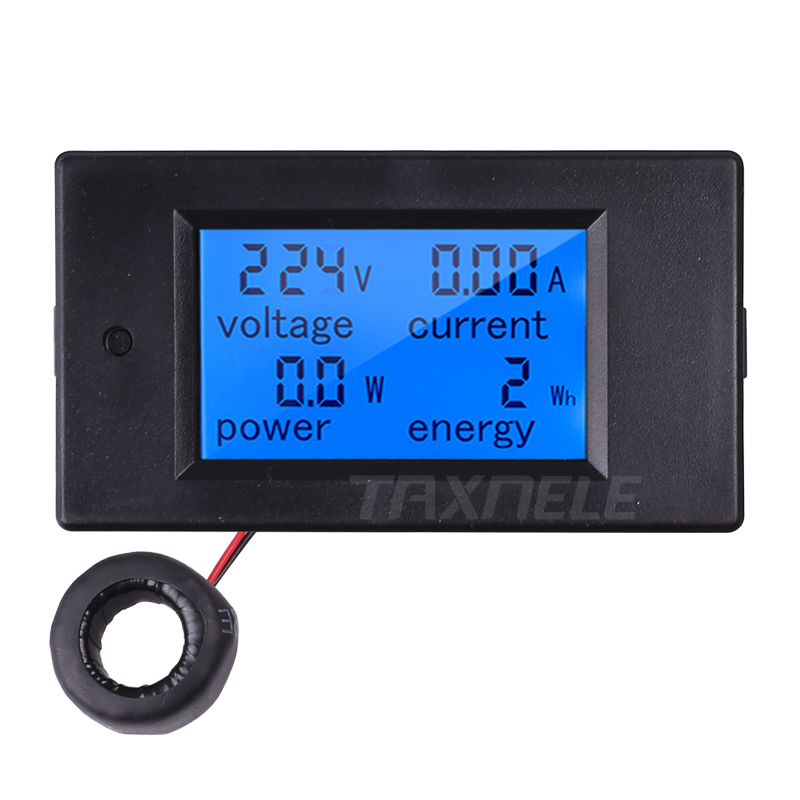

AC Meter

Digital LCD Voltage Current Power Energy Meters

Working voltage: 80 ~ 260VAC
Test voltage: 80 ~ 260VAC
Rated power: 20A/4500W ; 100A/22000W
Operating frequency: 45-65Hz
Product description: 1. Electrical parameter measurement function (voltage, current, active power, energy) 2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm). 3. Power alarm t
INQUIRY

Display format

1. Voltage: test range: 80~260V

2. Current: test range: 0~20A (Display format: 0.00~20A)

0-100A(Display format: 0.00~99.99A)

3. Power: test range: 0~4.5kW

within 1KW, the display format is 0.0~999.9W;

1KW and above, the display format is 1000~4500W.

4. Energy: test range: 0~9999kWh

Within 10KWh, the display format is 0~9999Wh;

10kWh and above, the display format is 10~9999kWh.
