Car Start Relay

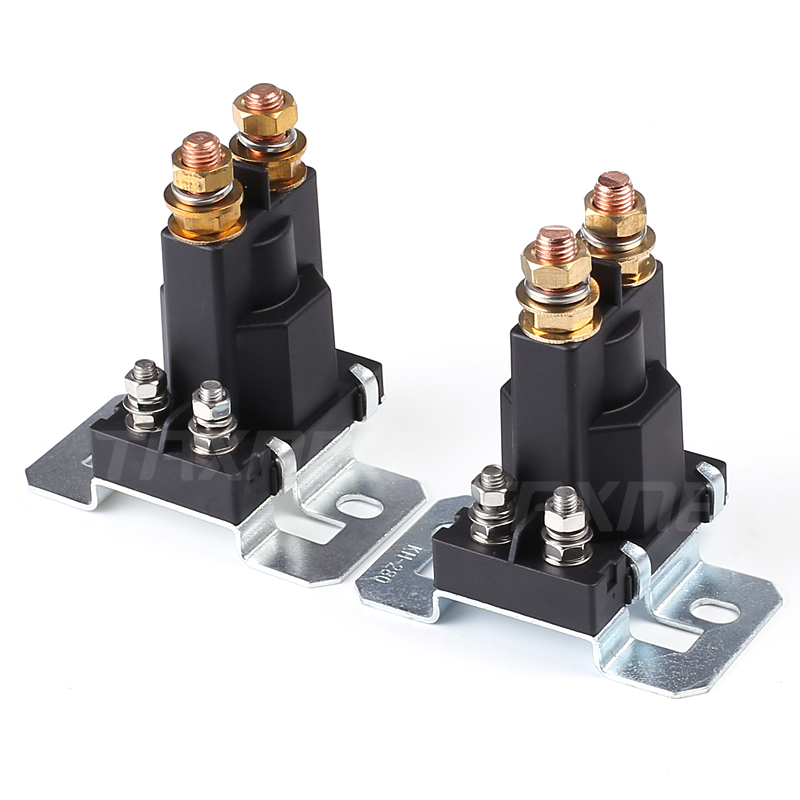

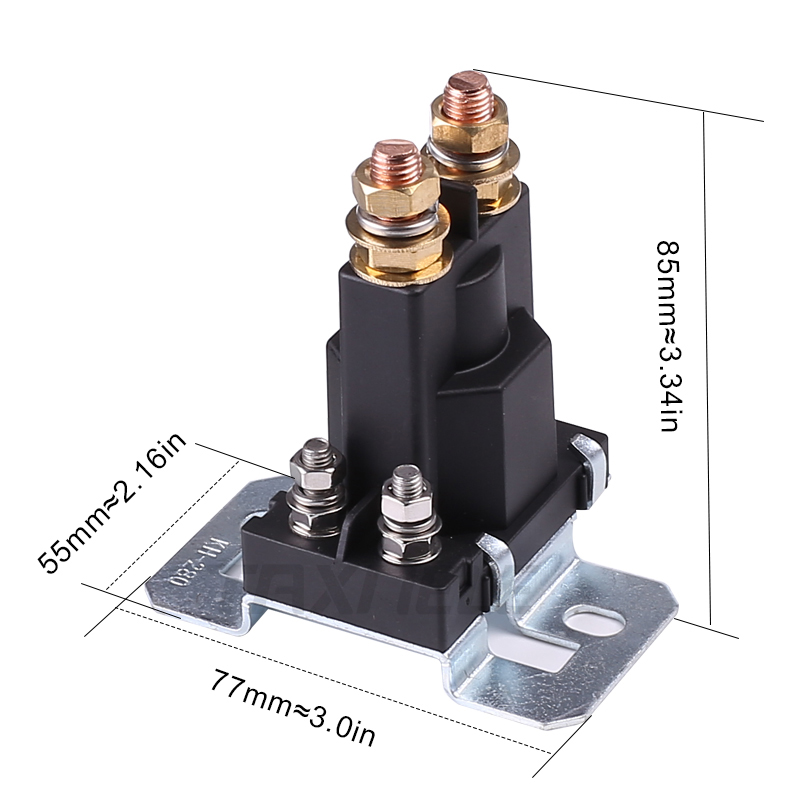

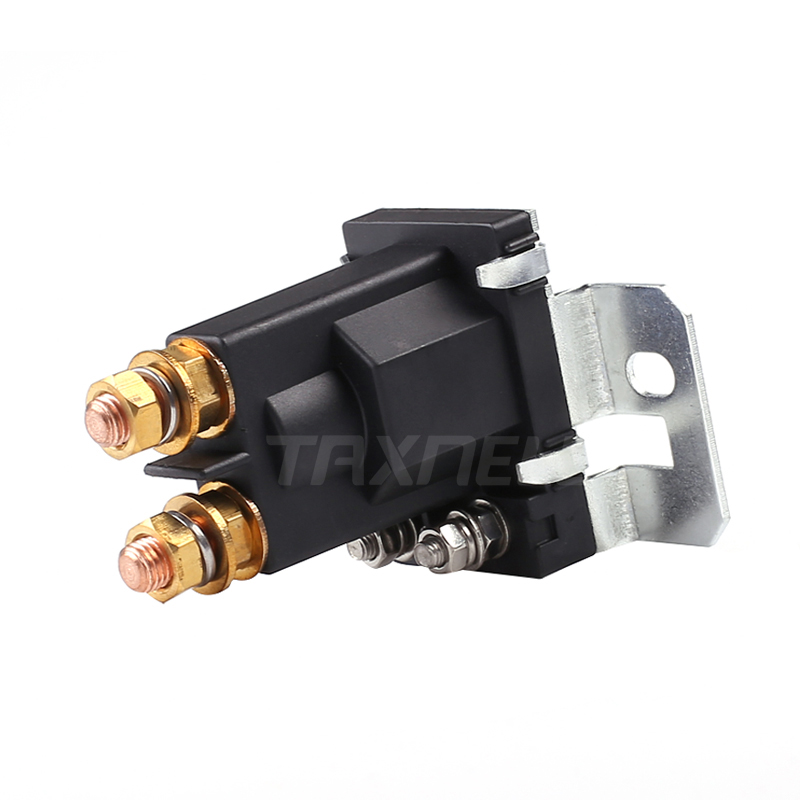

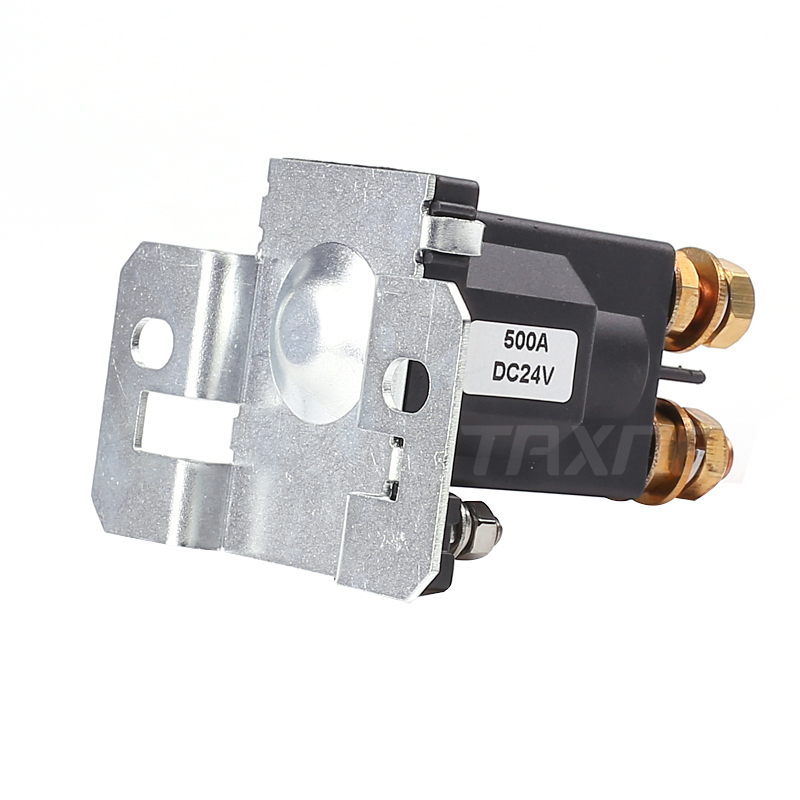

Battery Start relay 500A 12V 24V

  • Contact switching current: 500A
  • Coil power: 12V DC, 24V DC
  • Contact switching voltage: 7.8VDC
  • Contact load: high power
  • Product description: Battery Start relay 500A 12V 24V
  • INQUIRY

Features:

  • It help extend battery life.
  • Universal 12V applications.
  • Prevents primary battery discharge.
  • Made of water resistant black phenolic plastic.
  • The main function of this product is to switch on, it can be used alone, it can be also connected to control to use, but this product does not include additional control relay, and if the controller is connected, it mainly used in the dual battery.


Specifications:

Product series: auto relay

Contact load: high power

Contact switching current: 500A

Contact switching voltage: 7.8VDC

Contact form: transformation type

Rated current: 500A

Protective features: sealing type

Coil power: 12V DC, 24V DC

CONTACT DATA


Contact  material AgSn0_27In_20_33
Contact form
1H(1A)
Contact Ratings 500A
Contact Resistance 100mMax at 6VDC 1 A
Max Switching Current
500A
Max Switching Voltage 14VDC
Max Switching Power
500A
Life Expectancy Electrical 100,000 Operations(at 30 Operations/minute)
Life Expectancy Mechanic 10,000,000 Operations
