22mm Metal Switch

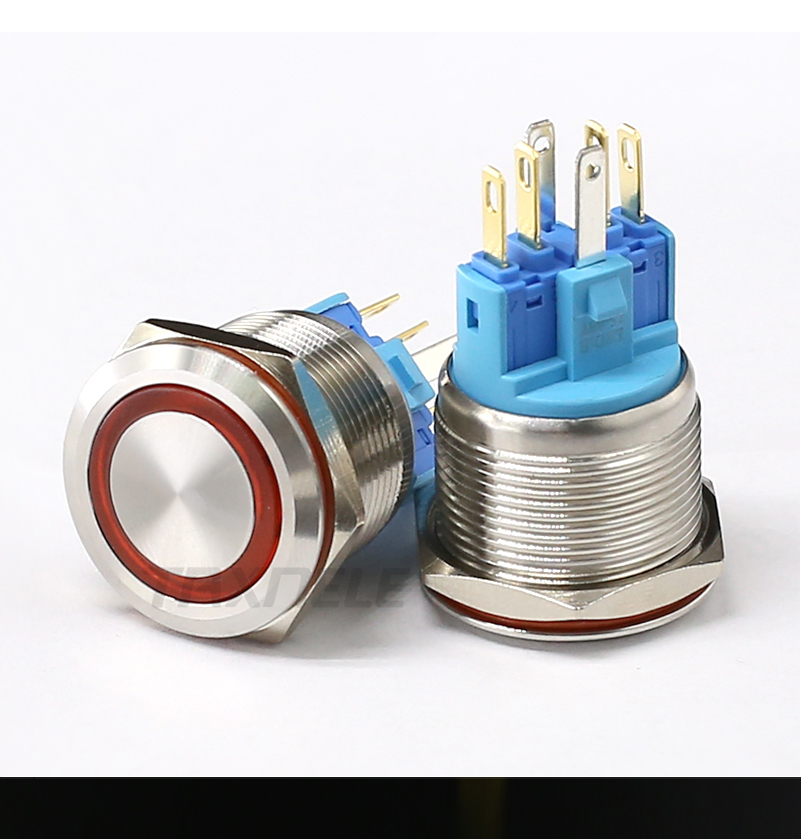

22mm led Metal Push Button Switch

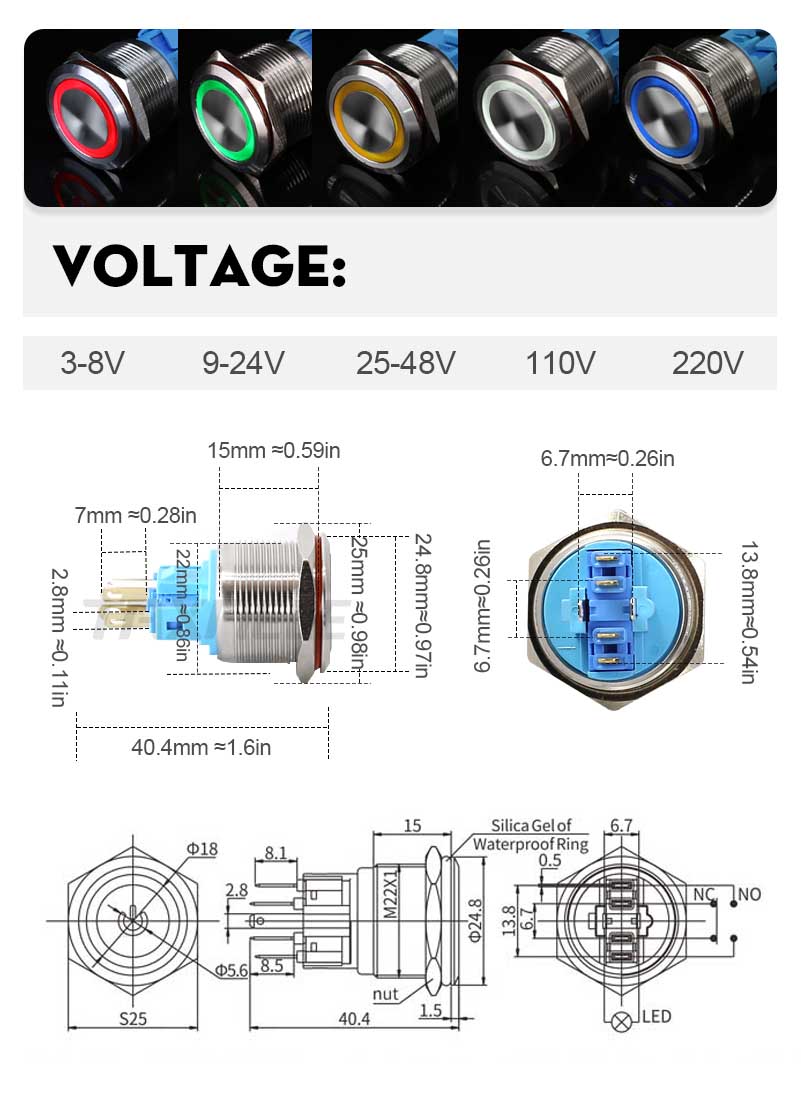

Diameter: 22MM

Type :Momentary/Latching(optional) ,1 NO + 1 NC,6 PIN

Reated Insulation Voltage: AC250V

Fusing Current :5A

Material : Stainless steel,aluminum oxide,copper plating

Led type:High Brightness LED lamp,cool

The Front Shape :Domed

Illuminated : Annular/Dot

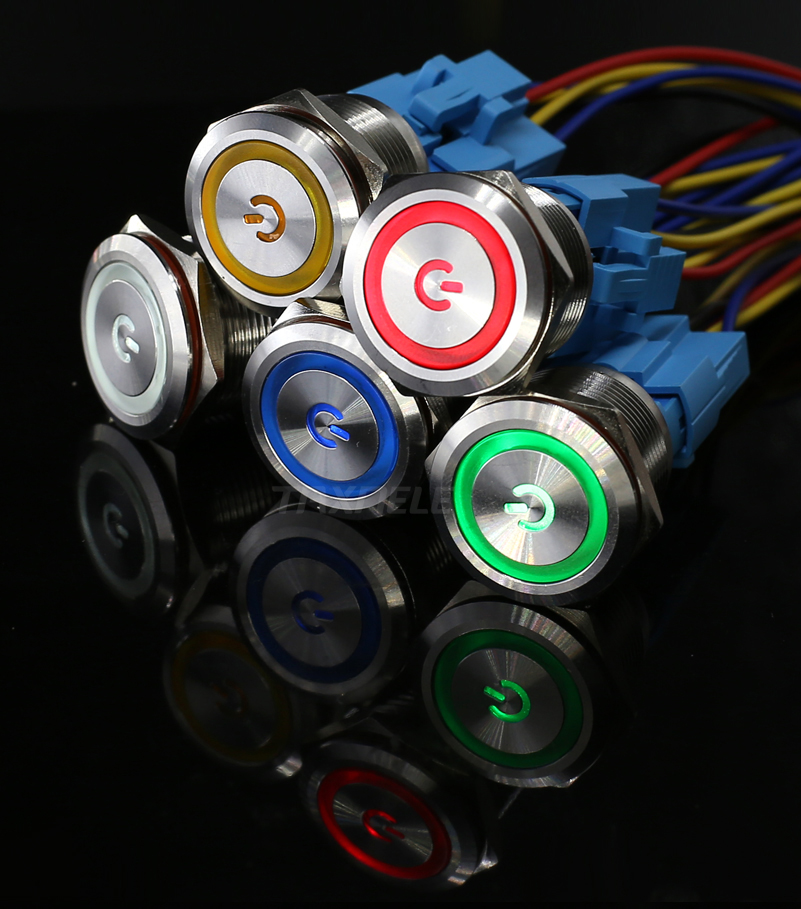

Lamp Color : Red/Green/Yellow/Blue/White

Protection Degree : IP65 , IK08Dot

Head Type: Flat Head

Voltage :3-8V, 9-24V,25-48V,110V,220V,Wide voltage range(optinal) .!!!
