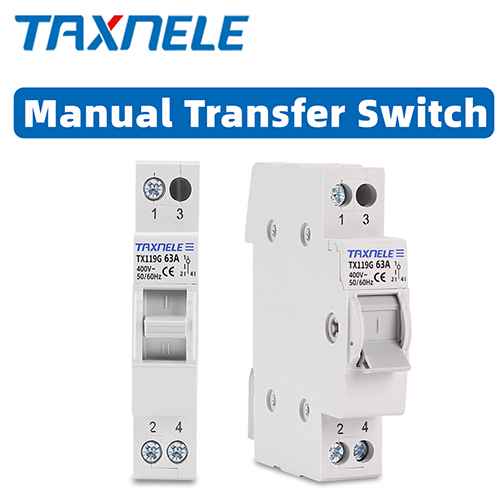

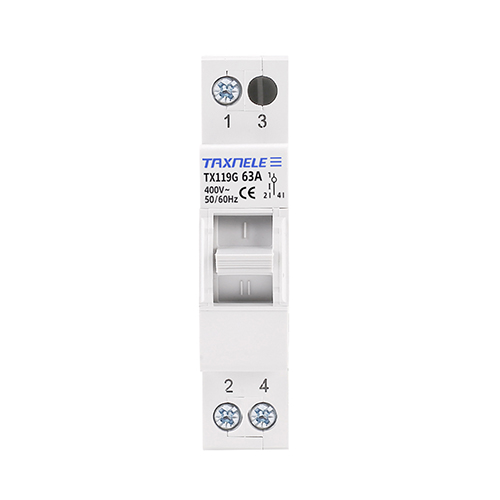

1P 40A 63A MTS Dual Power Manual Transfer Isolating Switch Interlock Circuit Breaker 230V 400V Modular Changeover Switch

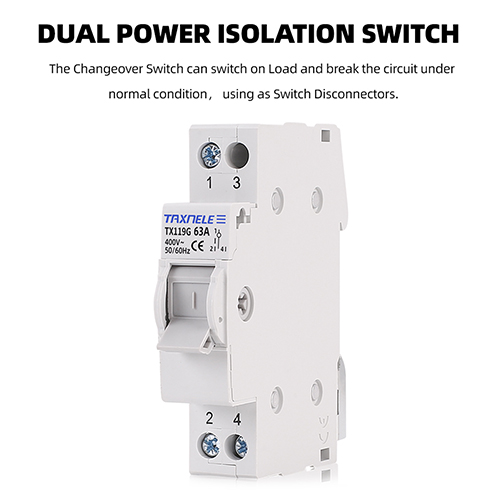

The rail-mounted dual power conversion isolation switch has four functions of on, off, conversion and isolation. It can be freely switched on and off between two loads carried by a group of lines, or on two power sources.

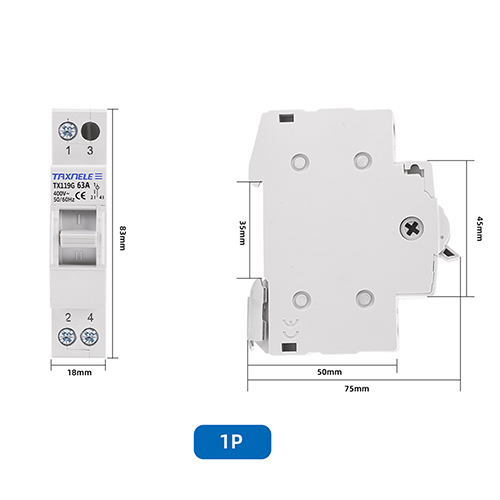

It is used for on-off and switching , using DIN standard rail (35×7.5) installation.



The shell is made of PA66 injection molding, with high flame retardant performance.



It is an ideal product that needs to be used for switching and opening and closing in industrial equipment and circuits.



The rated current of this product is 40A/63A, and it is convenient and safe to install and wire on the guide rail.



Instructions for use

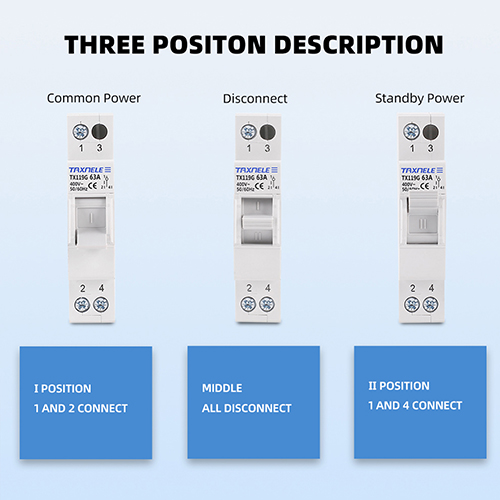

1P MTS:

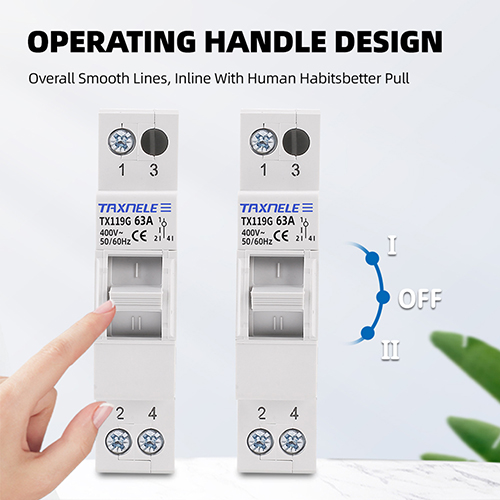

1.When the handle hits the I position: 1 and 2 are connected

2.When the handle hits the II position: 1 and 4 are connected

3.When the handle is in the middle position: both groups are disconnected.

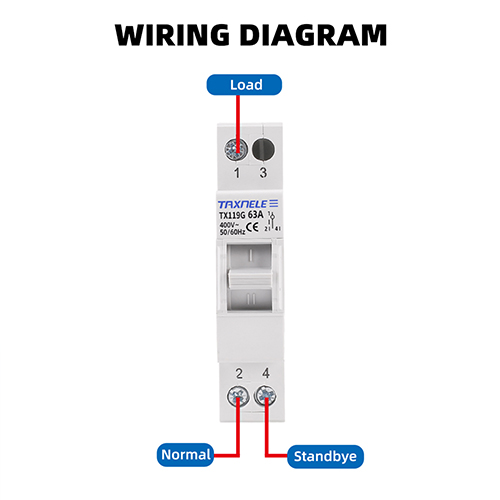

The position of the incoming and outgoing wires can be adjusted according to actual needs (the upper and lower out are not necessarily required, when used for dual power switching, the lower in and upper out must be used.)
